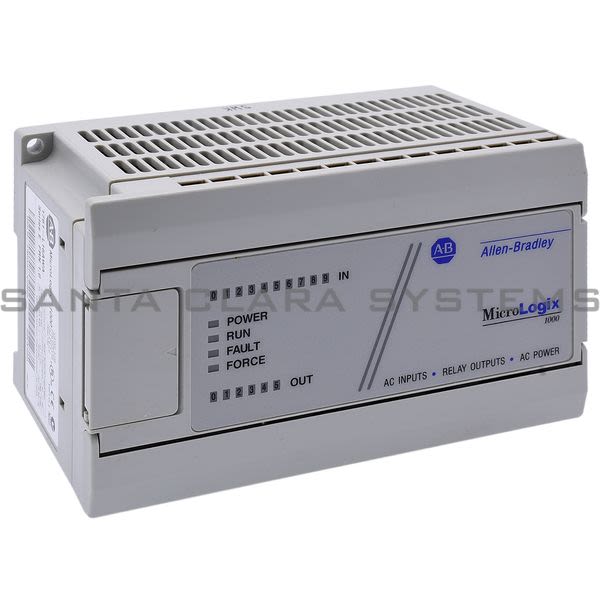

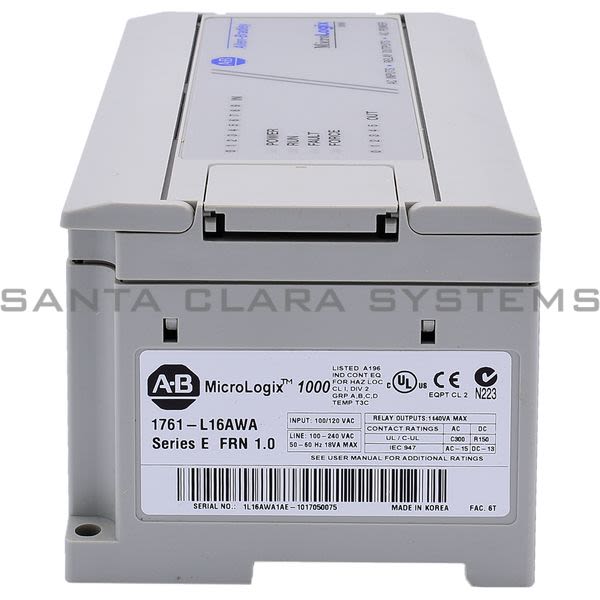

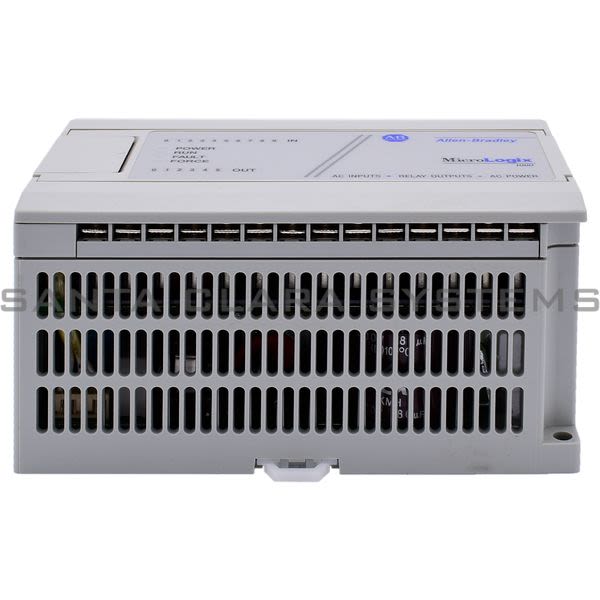

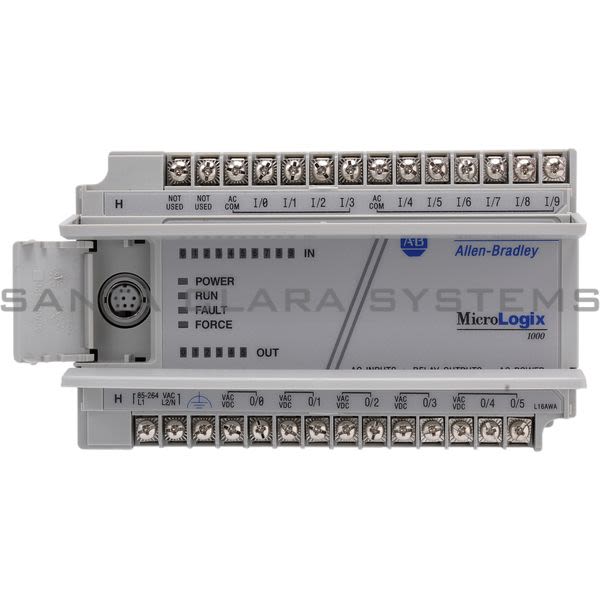

1761-L16AWA

Allen Bradley - Controller | MicroLogix 1000

Current response time:

By 5AM PT on Thursday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Controller | MicroLogix 1000
Power Supply: 120/240V AC
Product Type: Programmable Controller
Output Type: Relay
Number of Digital I/O : 16
Input Voltage Range (100-120V AC): 79 to 132V AC, 47 to 63 Hz
Output Min. Load Current, Relay: 10.0 mA
Power Supply Max. Inrush Current: 30A for 8 ms
Power Supply Voltage: 85-264V AC, 47-63 Hz

Power Supply Usage: 120V AC @ 15VA, 240V AC @ 21VA, 24V DC - N/A
Memory Size and Type: 1 K EEPROM (approximately 737 instruction words: 437 data words)
Isolation: 1500V AC
Output Current per Controller, Relay: 1440 VA
Output Current per Common, Relay: 8.0A
Power Cycles: 50,000 minimum
Electrostatic Discharge: EN 61000-2 at 8K V
Radiated Susceptibility: EN 61000-3 at 10 V/m, 27 MHz - 1000 MHz; 3V/m, 87 MHz - 108 MHz, 174 MHz - 230 MHz, and 470 MHz - 790 MHz
Fast Transient: EN 61000-4 at 2K V Power Supply, I/O; 1K V Comms

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1761-L16AWA . Santa Clara Systems carries 53,635 items from Allen Bradley.
