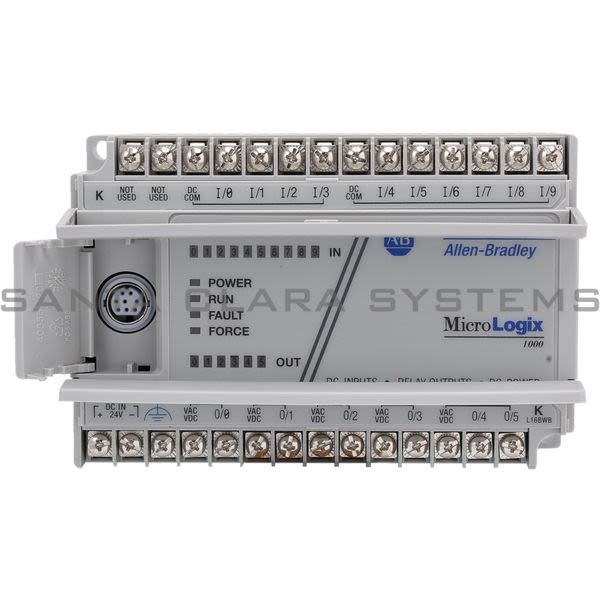

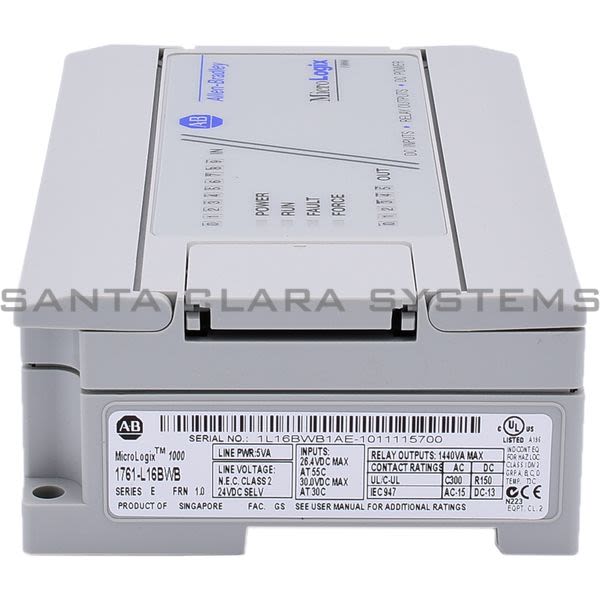

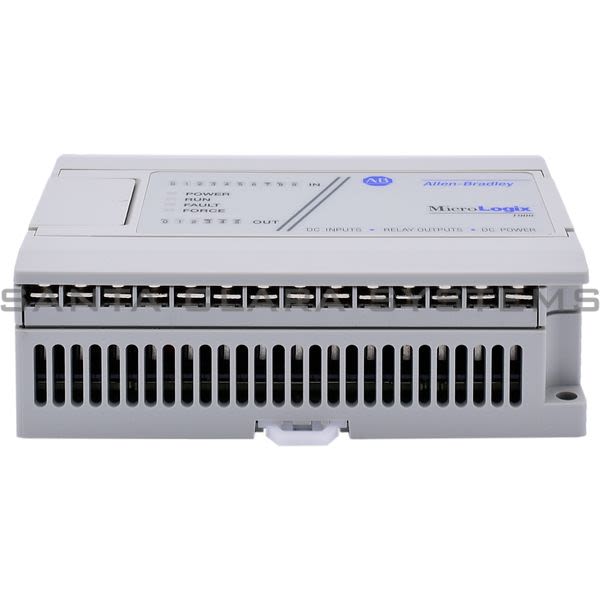

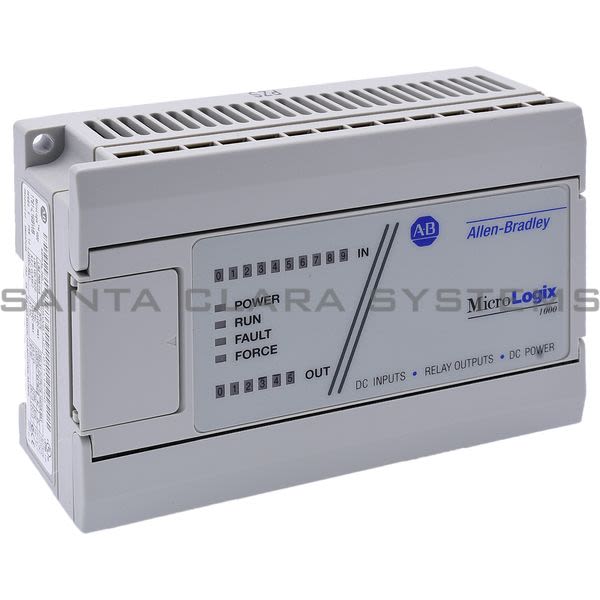

1761-L16BWB

Allen Bradley - Controller | MicroLogix 1000

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Controller | MicroLogix 1000
Input Type: 24V DC
Product Type: Programmable Controller
Output Type: Relay
Number of Digital I/O: 16
Input Voltage Range (24V DC): 14 to 30V DC
Power Supply Voltage : 20.4-26.4V DC
Power Supply Usage: 120V AC - N/A, 240V AC - N/A, 24V DC @ 5W
Power Supply Max. Inrush Current: 30A for 4 ms

Memory Size and Type: 1 K EEPROM (approximately 737 instruction words: 437 data words)
Isolation: 1500V AC
Power Cycles: 50,000 minimum
Electrostatic Discharge: EN 61000-2 at 8K V
Radiated Susceptibility: EN 61000-3 at 10 V/m, 27 MHz - 1000 MHz; 3V/m, 87 MHz - 108 MHz, 174 MHz - 230 MHz, and 470 MHz - 790 MHz
Fast Transient: EN 61000-4 at 2K V Power Supply, I/O; 1K V Comms
Output Min. Load Current, Relay: 10.0 mA
Output Current per Controller, Relay: 1440 VA
Output Current per Common, Relay : 8.0A

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1761-L16BWB . Santa Clara Systems carries 53,612 items from Allen Bradley.

1761-L16BWB Selection Guide

1761-L16BWB Installation Instructions

1761-L16BWB User Manual

1761-L16BWB Catalog
