1761-L20BWA-5A

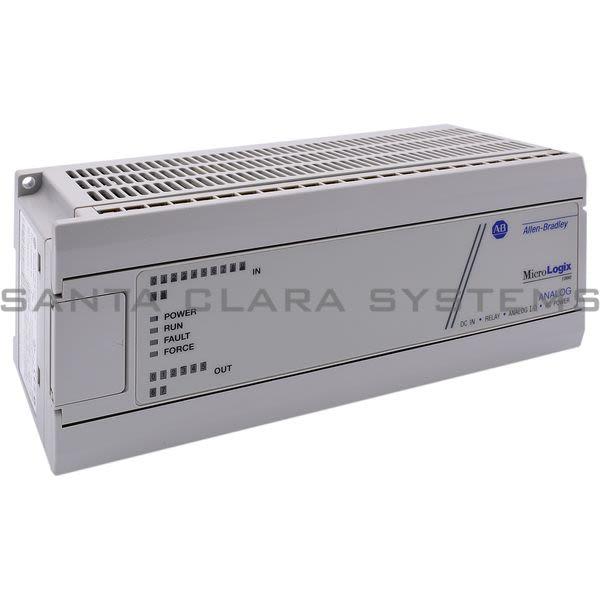

Allen Bradley - Controller | MicroLogix 1000

Current response time:

By 5AM PT on Thursday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Controller | MicroLogix 1000
Mounting Type: DIN Rail
Input Type: 24V DC
Product Type: Programmable Controller
Output Type: Relay
Number of Digital I/O: 20
Number of Analog I/O: 4 inputs, 1 output
Memory Size and Type: 1 K EEPROM (approximately 737 instruction words: 437 data words)

Power Supply Voltage: 85-264V AC, 47-63 Hz
Power Supply Usage: 120V AC @ 30VA, 240V AC @ 38VA, 24V DC - N/A
24V DC Sensor Power (V DC @ mA) : 200 mA
Power Cycles: 50,000 minimum
Electrostatic Discharge: EN 61000-2 at 8K V Discrete I/O 4K V Contact, 8K V Air for Analog I/O
Radiated Susceptibility: EN 61000-3 at 10 V/m, 27 MHz - 1000 MHz; 3V/m, 87 MHz - 108 MHz, 174 MHz - 230 MHz, and 470 MHz - 790 MHz
Fast Transient : EN 61000-4 at 2K V Power Supply, I/O; 1K V Comms
Terminal Screw Torque: 0.9 N-m maximum (8.0 in.-lbs)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1761-L20BWA-5A . Santa Clara Systems carries 53,635 items from Allen Bradley.

1761-L20BWA-5A Installation Instructions

1761-L20BWA-5A Selection Guide

1761-L20BWA-5A User Manual

1761-L20BWA-5A Catalog
