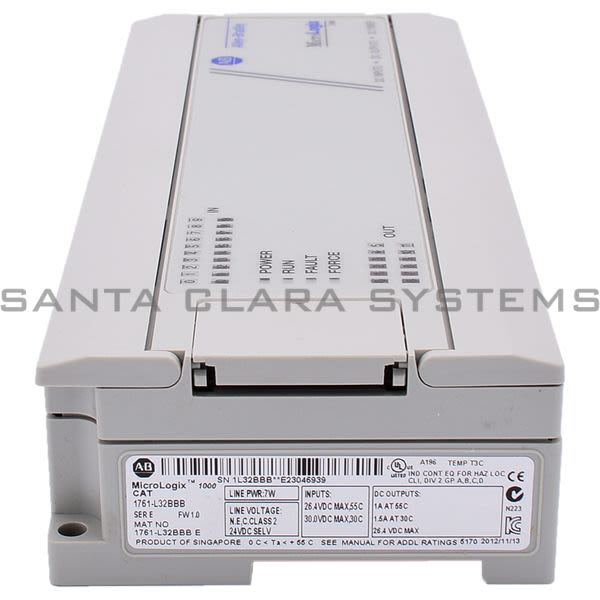

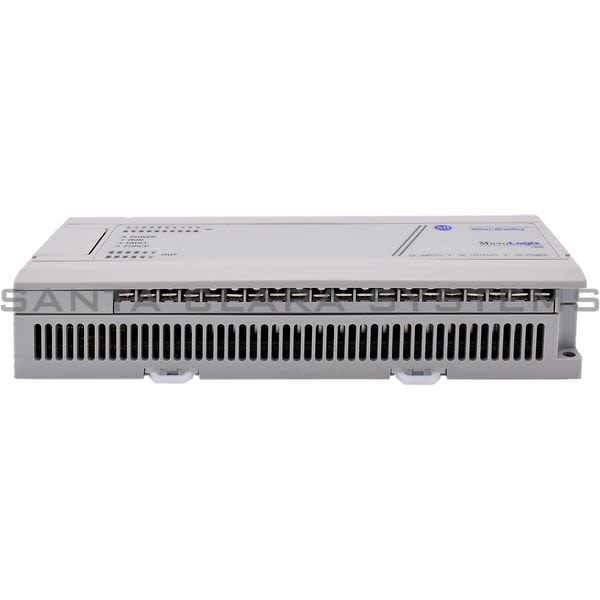

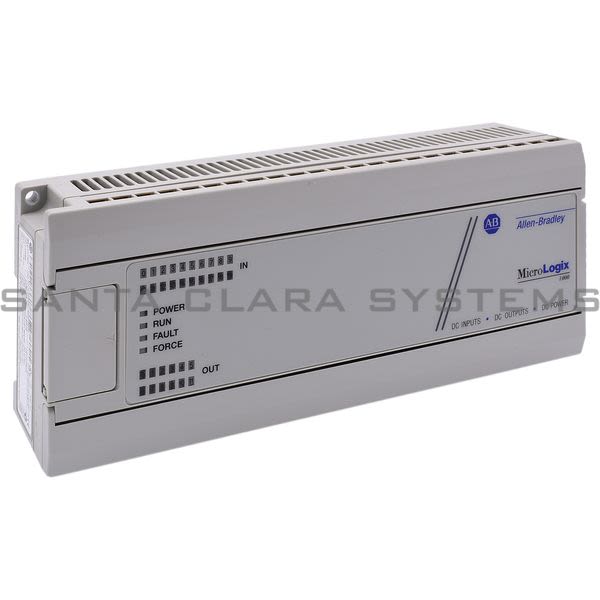

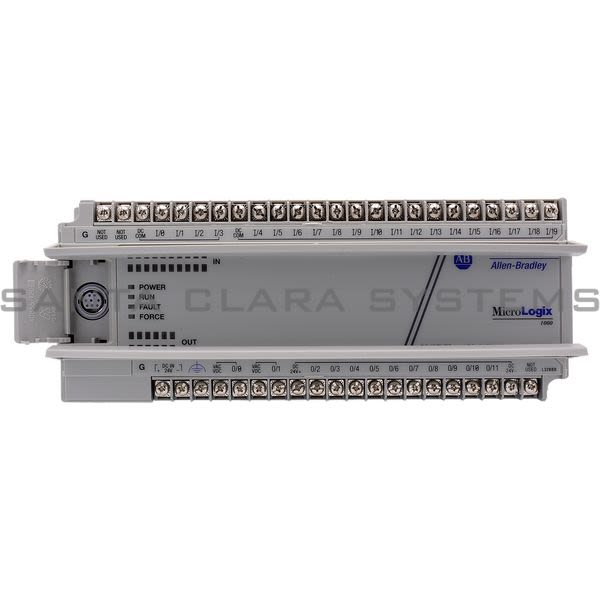

- Description: Controller | MicroLogix 1000
- Input Type: 24V DC
- Product Type: Programmable Controller
- Output Type: 24V DC MOSFET
- Number of Digital I/O: 32
- Input Voltage Range (24V DC): 14 to 30V DC
- Power Supply Max. Inrush Current : 30 A for 4ms
- Power Supply Usage: 120V AC N/A, 240V AC N/A, 24V DC @ 7W
- Memory Size and Type: 1 K EEPROM (approximately 737 instruction words: 437 data words)
- Electrostatic Discharge: EN 61000-2 at 8K V
- Radiated Susceptibility: EN 61000-3 at 10 V/m, 27 MHz - 1000 MHz; 3V/m, 87 MHz - 108 MHz, 174 MHz - 230 MHz, and 470 MHz - 790 MHz
- Fast Transient: EN 61000-4 at 2K V Power Supply, I/O; 1K V Comms
- Output Min. Load Current, MOSFET : 1 mA
- Output Current per Controller, MOSFET: 6A
- Output Max. Load Current, MOSFET : 1.0A per point at +55 C (+131 F) 1.5A per point at +30 C (+86 F)
- Output Surge Current per Point, MOSFET: 4A for 10 ms (Repeatability is once every 2 seconds at +55 C (+131 F).)
- Output Current per Common, MOSFET: 6A
- Power Supply Voltage: 20.4-26.4V DC
- Power Cycles: 50,000 minimum
- Isolation: 1500V AC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1761-L32BBB . Santa Clara Systems carries 53,635 items from Allen Bradley.
