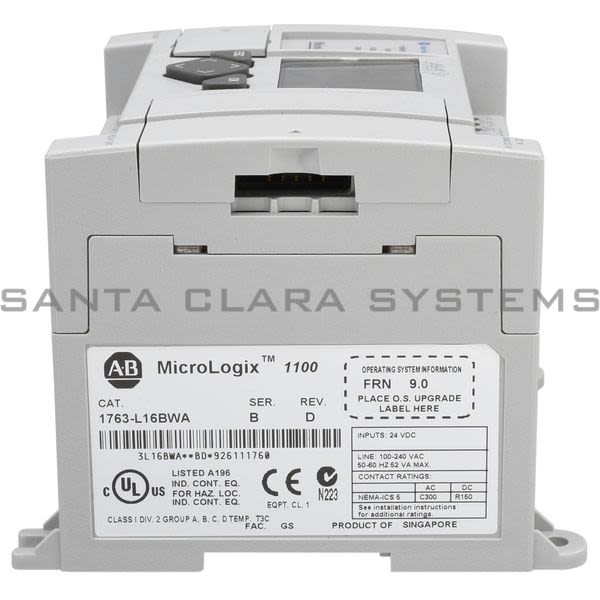

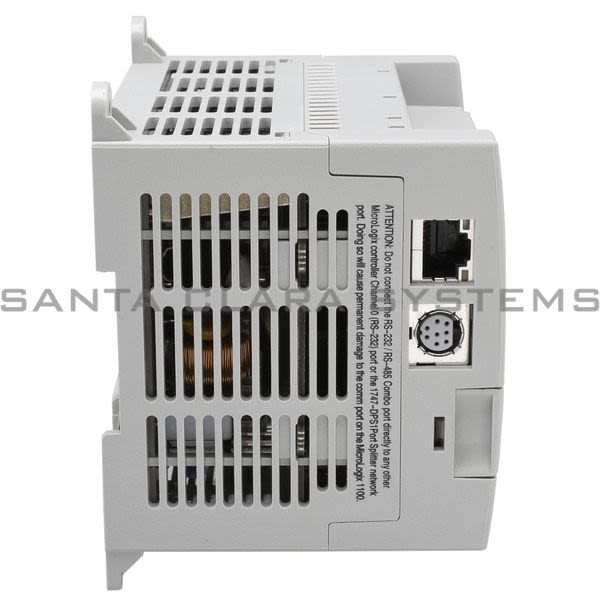

1763-L16BWA

Allen Bradley - Controller | MicroLogix 1100

Current response time:

By 5AM PT on Thursday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Controller | MicroLogix 1100
Product Type: Programmable Controller
Weight: 0.9 kg (2.0 lbs)
Analog Input - Data Type: 10-bit Unsigned Integer
Analog Input - Resolution: 10 Bit
Analog Input - Voltage Range: 0...10.0V dc - 1 LSB
Digital Input - On-State Current (0-3 | 4 high-speed DC inputs): Min.:2.5 mA @ 14V DC | Nom.:8.8 mA @ 24V DC | Max.:12.0 mA @ 30V DC
Digital Input - On-State Current (4 & higher | 6 standard DC inputs): Min.:2.0 mA @ 10V DC | Nom.:8.5 mA @ 24V DC | Max.:12.0 mA @ 30V DC
Digital Input - Voltage Range (0-3 | 4 high-speed DC inputs): 14...24V DC (on-state) 0...5V DC (off-state)
Digital Input - Voltage Range (4 & higher | 6 standard DC inputs): 10...24V DC (on-state) 0...5V DC (off-state) DC (off-state)

Dimensions: Height: 90 mm (3.5 in.), 104 mm (4.09 in.) (with DIN latch open) | Width: 110 mm (4.33 in.) | Depth: 87 mm (3.43 in.)
Input Circuit Type: Digital: 24V DC sink/source (standard and high-speed) | Analog: 0...10V DC
Load Current: 10 mA (minimum)
Number of I/O: 12 inputs (10 digital and 2 analog) and 6 outputs
Output Circuit Type: Relay
Power Consumption: 52 VA
Power Supply Inrush Current: 120V ac: 25 A for 8 ms | 240V ac: 40 A for 4 ms
Power Supply Voltage: 100...240V ac (-15%, +10%) at 47...63 Hz
Relay Output - Max. Controlled Load: 1080 VA
Relay Output - Turn on/off Time: 10 msec (maximum){scan time dependent}

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1763-L16BWA . Santa Clara Systems carries 53,635 items from Allen Bradley.
