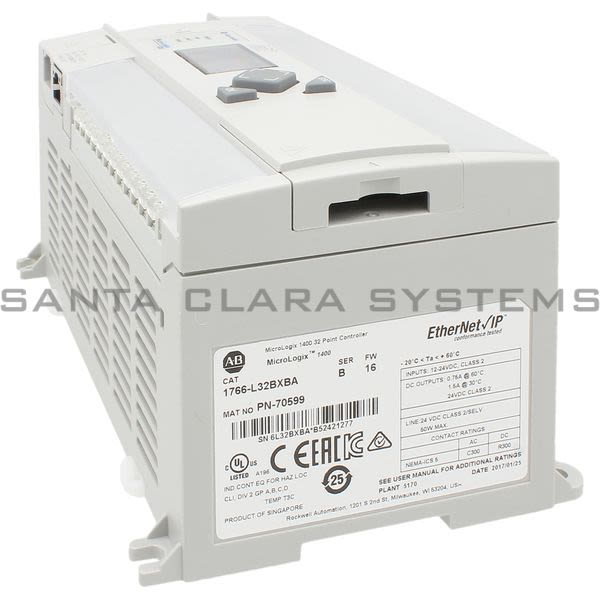

• Allen Bradley 1766-L32BXBA Analog Output Relay Module | MicroLogix 1400 Product Image

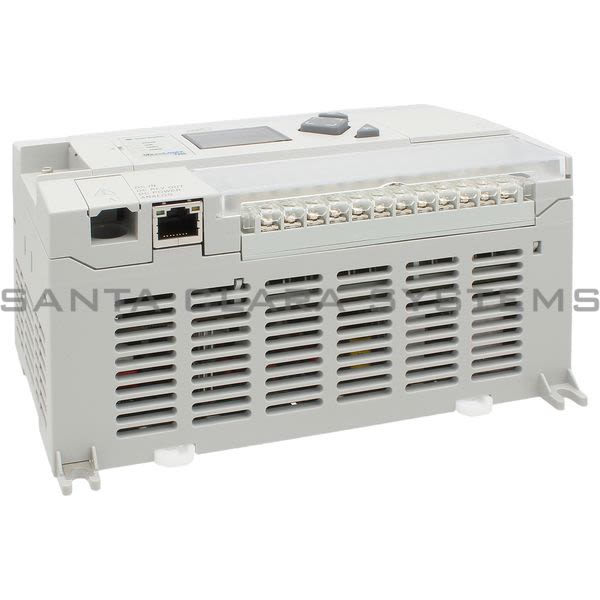

  • Allen Bradley 1766-L32BXBA Analog Output Relay Module | MicroLogix 1400 Product Image

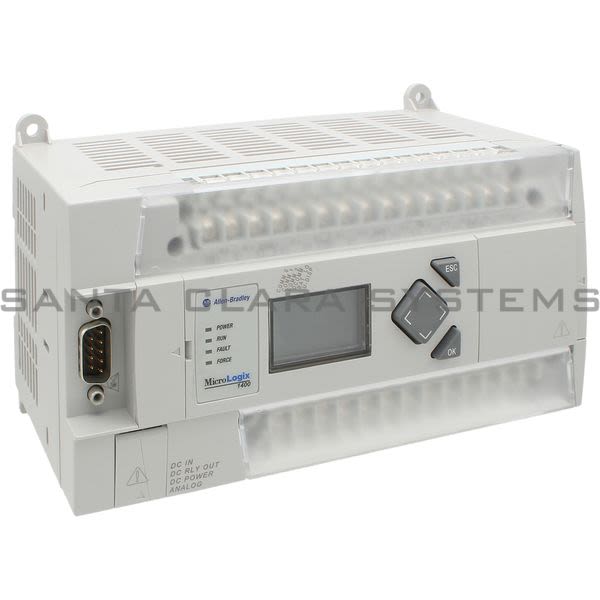

  • Allen Bradley 1766-L32BXBA Analog Output Relay Module | MicroLogix 1400 Product Image

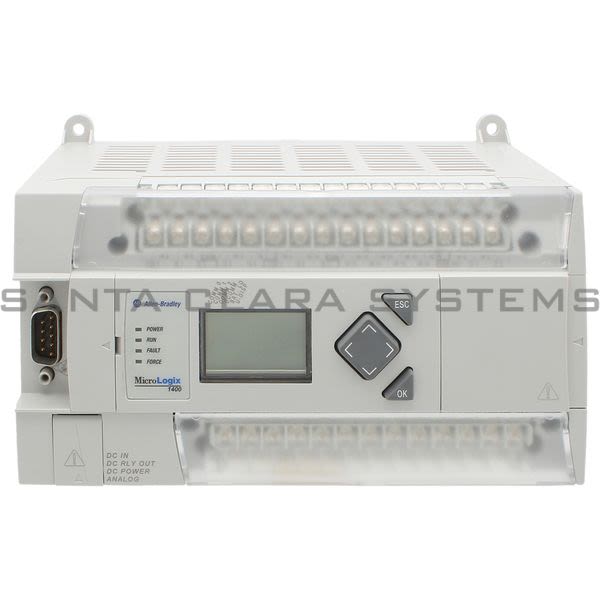

  • Allen Bradley 1766-L32BXBA Analog Output Relay Module | MicroLogix 1400 Product Image
  • Allen Bradley 1766-L32BXBA Barcode
  • Allen Bradley 1766-L32BXBA Installation Instructions

    Installation Instructions

  • Allen Bradley 1766-L32BXBA User Manual

    User Manual

  • Allen Bradley 1766-L32BXBA Release Notes

    Release Notes

  • Allen Bradley 1766-L32BXBA Reference Manual

    Reference Manual

  • More Catalog PDFs

    More PDFs

1766-L32BXBA

Get a Quote

Current response time:

18 Minutes 52 Seconds
  • Description: Analog Output Relay Module | MicroLogix 1400
  • Enclosure Type: None - Open-Style
  • Product Type: Programmable Controller
  • Weight: 0.9 kg (2.0 lbs)
  • Number of I/O: 24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog)
  • Power Supply Voltage: 24V DC Class 2 SELV
  • Dimensions HxWxD: 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in.)
  • Power Supply Inrush Current: 24V DC: 15 A for 20 ms
  • Power Consumption: 50W | 7.5W (with no 1762 expansion I/O)
  • Output Circuit Type: Relay/FET
  • Analog Input - Voltage Range: 0...10.0V DC - 1 LSB
  • Analog Input/Output - Data Type: 12-bit Unsigned Integer
  • Analog Output - Number of Inputs: 2 Single-ended
  • Relay/FET Output - Max. Controlled Load: 1080 VA
  • Relay/FET Output - Max. Continuous Current per Channel: 2.5 A per Channel
  • Analog Output - Voltage Range: 0...10 V DC - 1 LSB
  • Input Circuit Type: Digital: 24V DC | sink/source (standard and high-speed) | Analog: 0...10V DC
  • Analog Input/Output - Resolution: 12 bit
  • Analog Output - Step Response: 2.5 ms @ 95%
