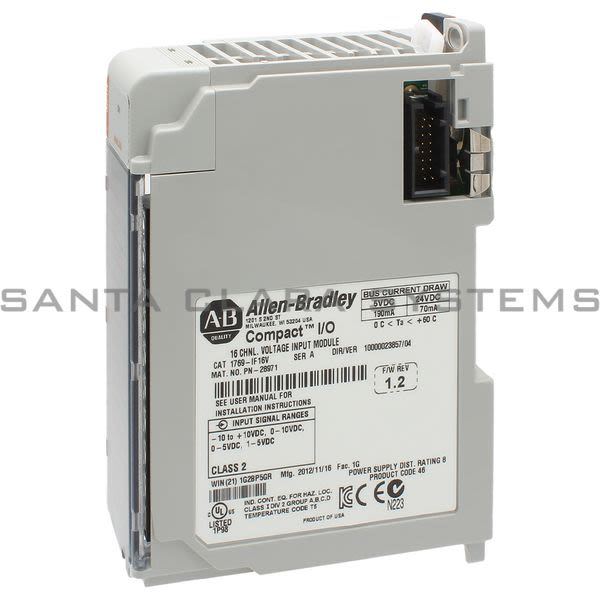

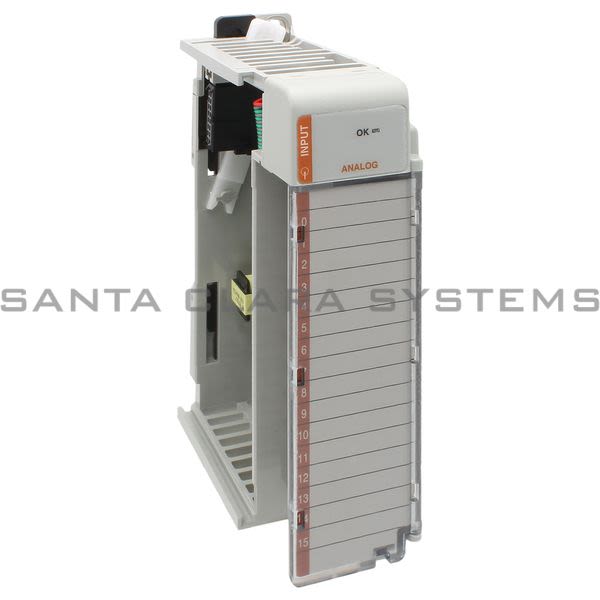

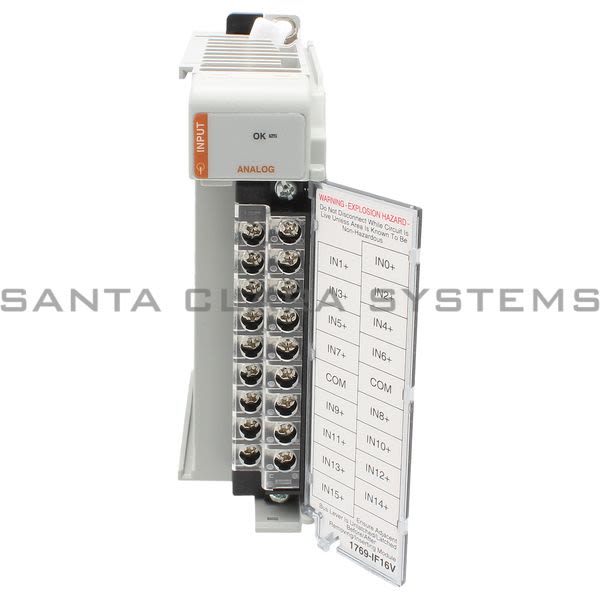

1769-IF16V

Allen Bradley - Analog Input Module

Current response time:

19 Minutes 7 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Analog Input Module
Resolution: 16 bits (unipolar) 15 bits plus sign (bipolar)
Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Inputs: 16 single-ended
Input range: +10V / 0.. 10V / 0.. 5V / 1.. 5V
Full scale range: +10.5V / -0.5.. 10.5V / -0.5.. 5.25V / 0.5.. 525V
Current draw @ 5.1V: 190 mA
Current draw @ 24V: 70 mA
Heat dissipation, max: 2.4 W
Converter type: Sigma delta
Rated working voltage: 30V AC/ 30V DC
Common mode voltage range: +10V DC max per channel
Common mode rejection: > 60 dB @ 50 and 60 Hz with the 16 Hz filter selected
Input impedance: > 1 M

Accuracy: +0.35% full scale @ 25*C (77*F)
Accuracy drift with temperture: +0.03% per *C
Nonlinearity: +0.03%
Repeatability: +0.06%
Module error: 1.0%
Overload at input terminals, max: +30 mA continuous, +7.6V DC
Isolation voltage: 500V AC or 710V DC for 1 minute (qualification test), group to bus 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation)
Weight, approx: 281 g (0.62 lb)
Dimensions (H x W x D), approx: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in) Height with mounting tabs 138 mm (5.43 in)
Slot width: 1
Module location: DIN rail or panel mount
Power supply distance rating: 8 modules
Terminal screw torque: 0.68 N m (6 lb in)
Retaining screw torque: 0.46 N m (4.1 lb in)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1769-IF16V . Santa Clara Systems carries 53,635 items from Allen Bradley.
