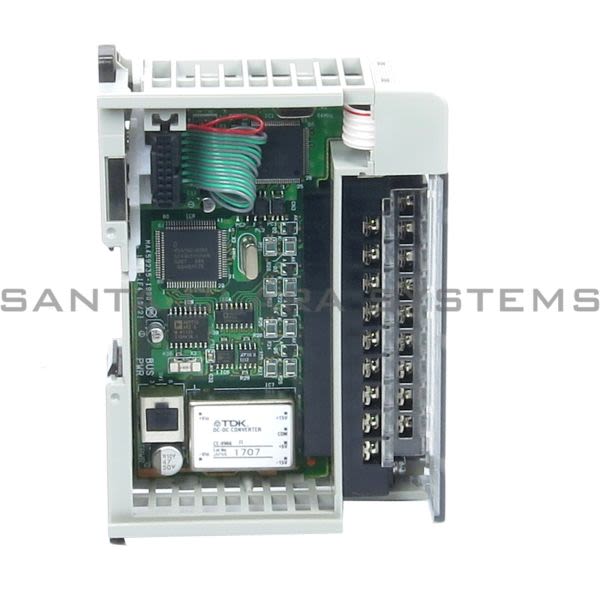

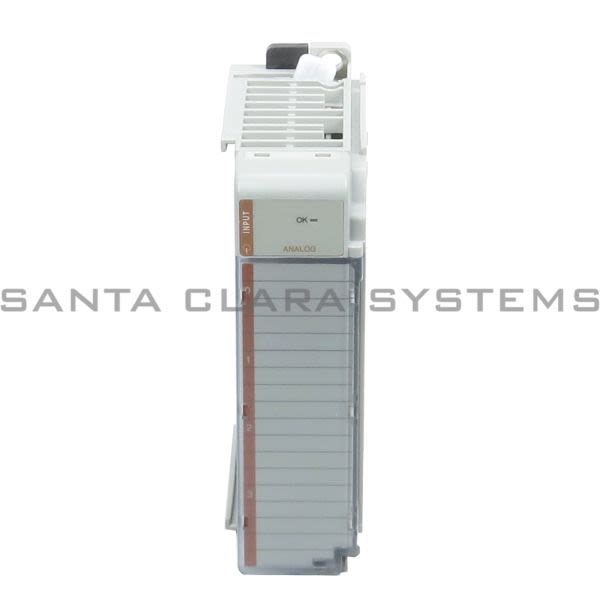

- Description: Analog Input Module | Compact I/O
- Resolution: 14 bits (unipolar) 14 bits plus sign (bipolar)
- Weight: 300 g (0.65 lb)
- Inputs: 4 differential or single-ended
- Current draw @ 5.1V: 120 mA
- Current draw @ 24V: 60 mA
- Heat dissipation, max: 2.52 W
- Converter type: Delta sigma
- Rated working voltage: 30V AC / 30V DC
- Common mode voltage range: +10V DC max per channel
- Common mode rejection: >60 dB @ 50 and 60 Hz with the 50 or 60 Hz filter selected, respectively
- Normal mode rejection ration: -50 dB @ 50 and 60 Hz with the 50 or 60 Hz filter selected, respectively
- Input impedance: Voltage: 220 k / Current: 250
- Accuracy: Voltage: +1.2% full scale @ 25-C (77*F) / Current: +0.35% full scale @ 25*C (77*F)
- Accuracy drift with temperature: Voltage: +0.003% per *C / Current: +0.0045% per *C
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1769-IF4 . Santa Clara Systems carries 53,633 items from Allen Bradley.
