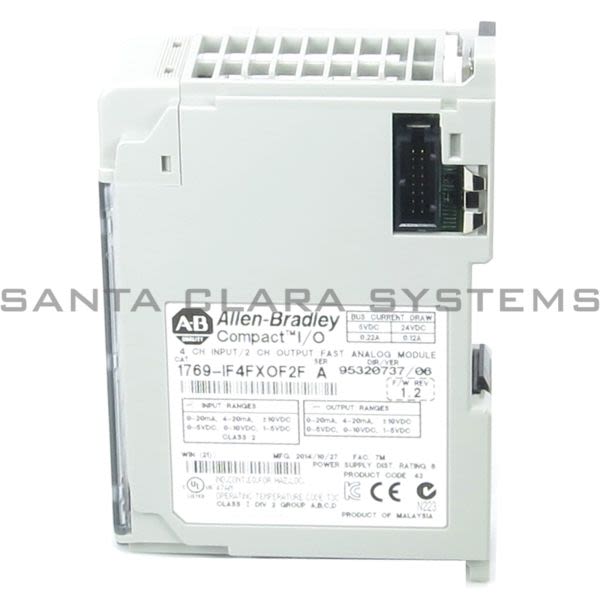

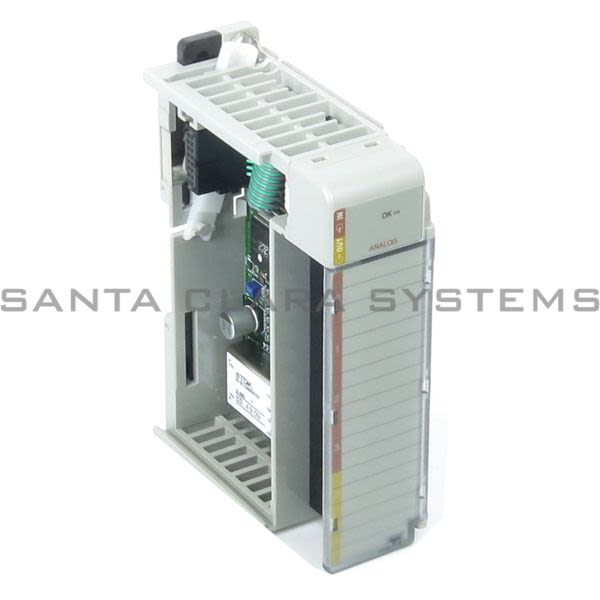

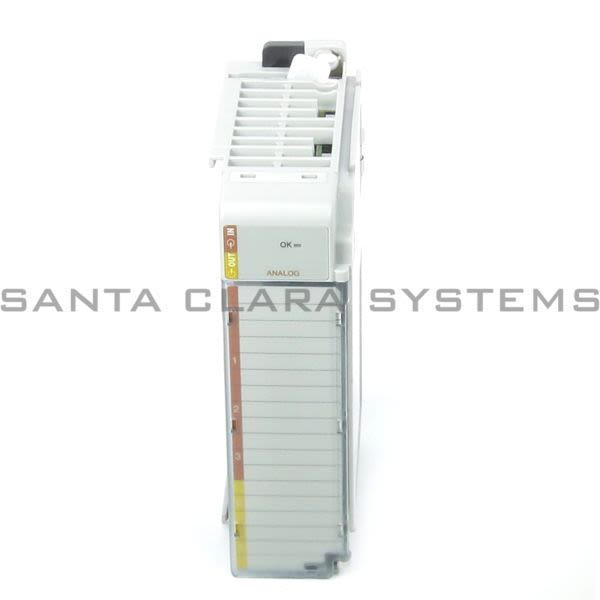

- Description: Analog Input/Output Module | Compact I/O
- Power supply: 1769-PA2, 1769-PB2, 1769-PB4
- Wire size: (22.. 14 AWG) solid / (22.. 16 AWG) stranded
- Enclosure type rating: None (open-style)
- Weight: 290 g (0.64 lb)
- Current draw @ 5.1V: 220 mA
- Current draw @ 24V: 120 mA
- Heat dissipation, max: 3.39 W
- Dimensions (H x W x D): 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in) Height with mounting tabs 138 mm (5.43 in)
- Slot width: 1
- Module location: DIN rail or panel mount
- Power supply distance rating: 8 modules
- Terminal screw torque: 0.68 N m (6 lb in)
- Retaining screw torque: 0.46 N m (4.1 lb in)
- Wire type: Cu-90*C (194*F)
- Replacement terminal block: 1769-RTBN18 (1 per kit)
- Replacement door label: 1769-RL2 series B (2 per kit)
- Replacement door: 1769-RD (2 per kit)
- Vendor ID code: 1
- Product type code: 10
- Product code: 43
- Input words: 10
- Output words: 4
- Configuration words: 42
- Inputs: 4 differential or single-ended
- Rated working voltage: 30V AC / 30V DC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1769-IF4FXOF2F . Santa Clara Systems carries 53,635 items from Allen Bradley.
