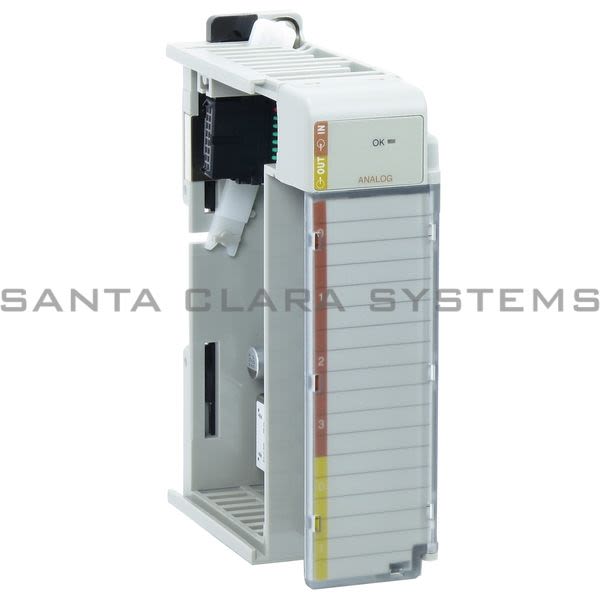

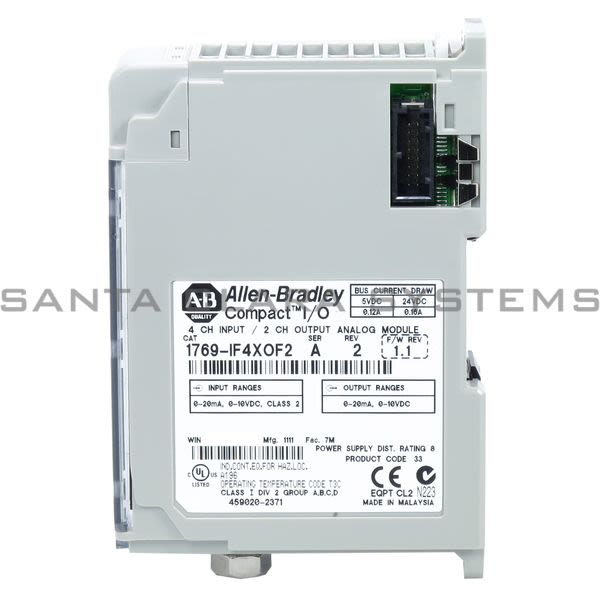

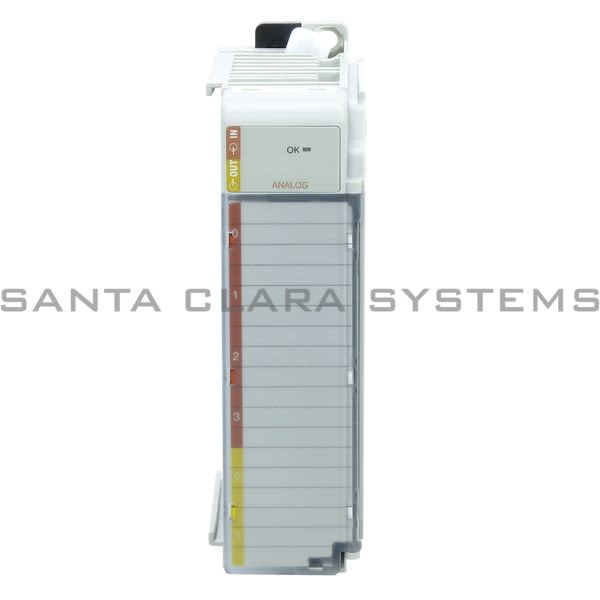

- Description: Analog Combination Input/Output Module | Compact I/O
- Resolution: 8 bits plus sign
- Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Current draw @ 5.1V: 120 mA
- Current draw @ 24V: 160 mA
- Heat dissipation, max: 3.03 W
- Weight, approx: 290 g (0.64 lb)
- Dimensions (HxWxD), approx: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
- Slot width: 1
- Module location: DIN rail or panel mount
- Power supply distance rating: 8 modules
- Terminal screw torque: 0.68 N m (6 lb in)
- Retaining screw torque: 0.46 N m (4.1 lb in)
- Replacement terminal block: 1769-RTBN18 (1 per kit)
- Replacement door label: 1769-RL2 Series B (2 per kit)
- Replacement door: 1769-RD (2 per kit)
- Inputs: 4 different or single-ended
- Input range: 0... 10V and 0... 20 mA
- Converter type: Successive approximation
- Response speed per channel: 5 ms
- Rated working voltage: 30V AC/30V DC
- Common mode voltage range: 10V DC max per channel
- Common mode rejection: >60 dB @ 50 and 60 Hz with the 10 Hz filter selected
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1769-IF4XOF2 . Santa Clara Systems carries 53,612 items from Allen Bradley.
