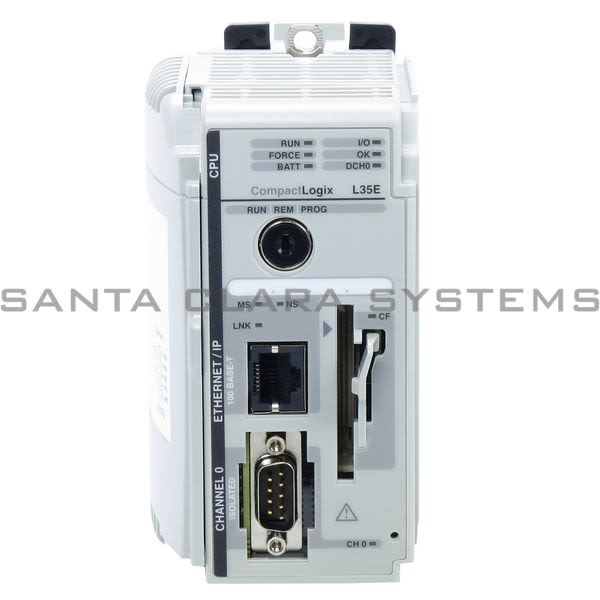

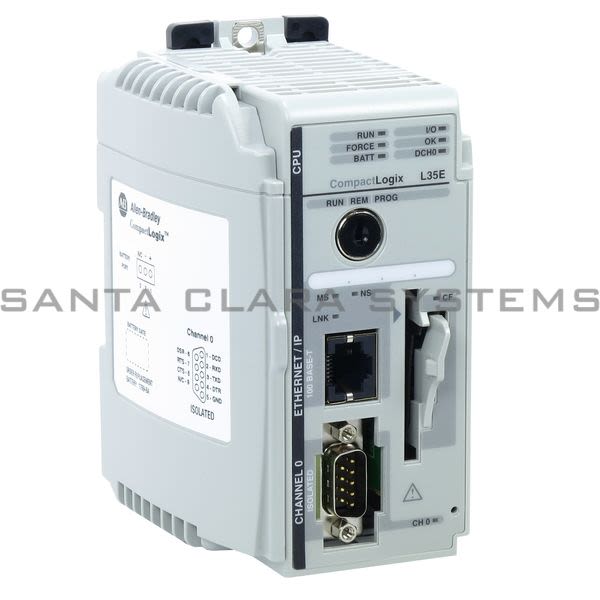

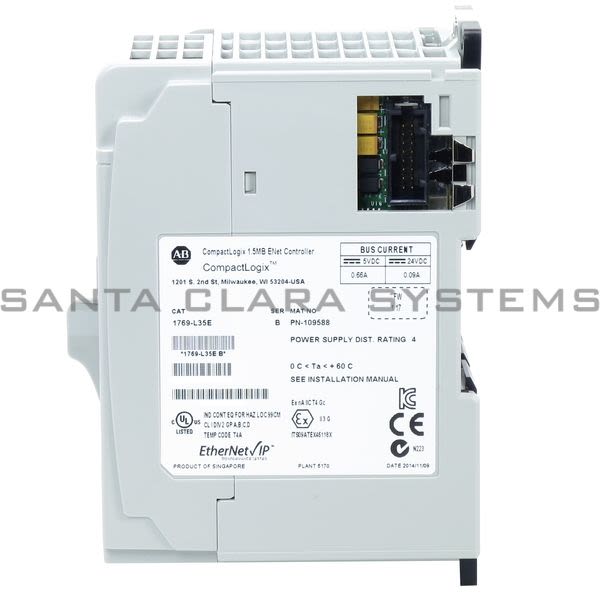

1769-L35E

Allen Bradley - Ethernet Processor | CompactLogix

Current response time:

By 5AM PT on Wednesday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Ethernet Processor | CompactLogix
Relative humidity: 5% to 95% non-condensing
User memory: 1.5 Mbytes
Nonvoltatile memory: 1784-CF64 Compact flash
Maximum number of I/O modules: 30 I/O modules
Maximum number of I/O banks: 3 banks
Backplane current: 660 mA at 5V dc / 90 mA at 24V dc
Power supply distance rating: 4 (the controller must be within four slot positions of the power supply.)
Battery: 1769-BA

Programming cable: 1747-CP3 or 1756-CP3
Panel mouting screw torque (using M4 or #8 screws): 10 - 16 in-lb (1.1 - 1.8 Nm)
Isolation voltage: 30V for 60 seconds tested to withstand 140 dc volts for seconds
Operating temperture: 0* to +60*C (+32*/ to +140*F)
Storage temperture: -40* to +85*C (-40* to +185*F)
Vibration: Operating: 5G @ 10-500Hz
Shock - DIN mount: Operating: 20G; non-operating: 30G
Shock - Panel mount: Operating: 30G; non-operating: 40G
Emissions: CISPA11: Group 1, Class A

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1769-L35E . Santa Clara Systems carries 53,633 items from Allen Bradley.
