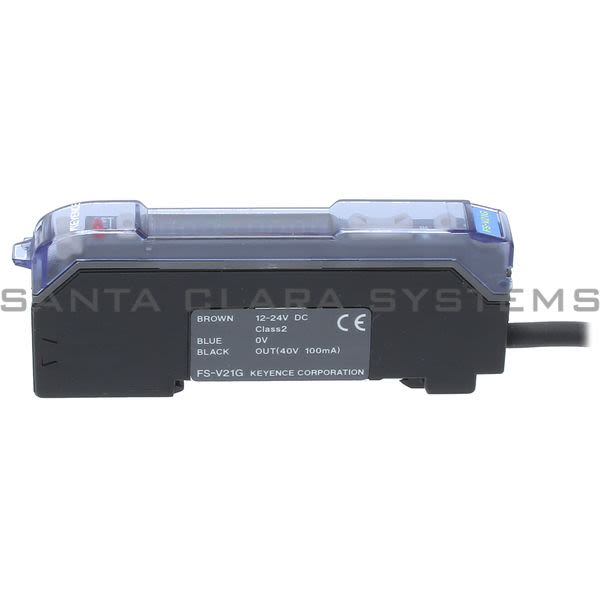

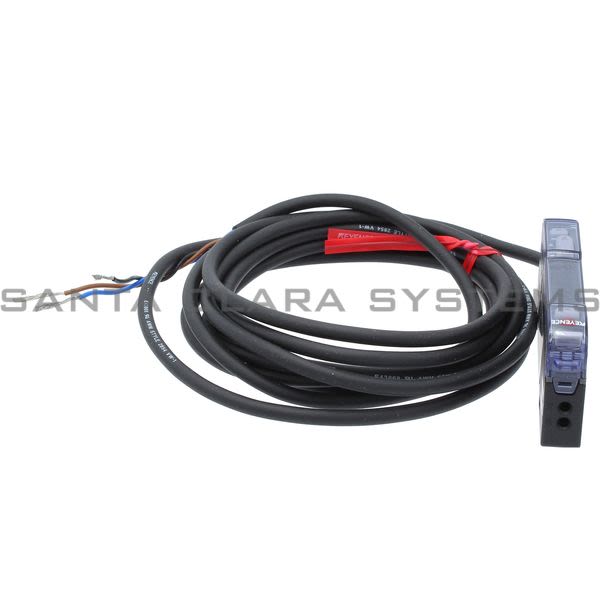

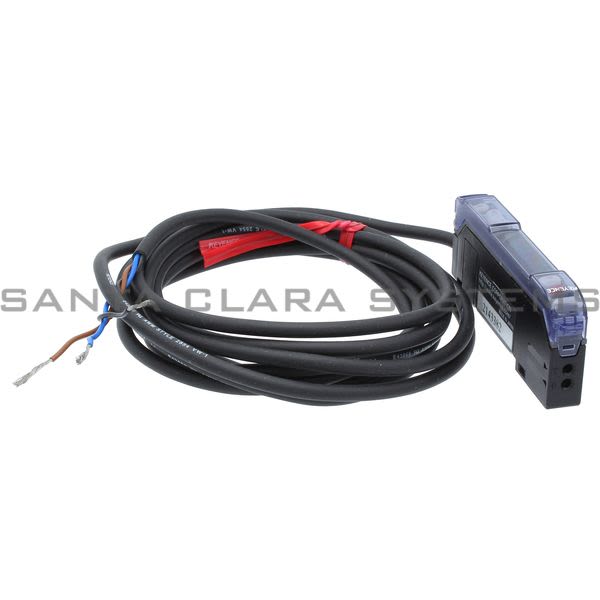

FS-V21G

Keyence - Fiber Optic Controller

Current response time:

10 Minutes 20 Seconds

Description: Fiber Optic Controller
Weight: Approx 80 g
Footnotes: *1 20 mA at maximum for the expansion unit. *2 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less. 1 or 2 Units: -10 to 55°C 14 to 131°F, 3 to 10 Units: -10 to 50°C 14 to 122°F, 11 to 16 Units: -10 to 45°C 14 to 113°F *3 When HIGH RESOLUTION has been selected, S-APC ON is fixed. When HIGH SPEED has been selected, S-APC ON is fixed for the R type and for anything other than the R type, S-APC OFF is fixed. For others, the factory setting is S-APC OFF. The value inside the parentheses is the current consumption when using a 24 VAC power supply voltage *4 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less. 1 to 2 Units: -10 to +55°C 14 to 131°F, 3 to 10 Units: -10 to +50°C 14 to 122°F, 11 to 16 Units: -10 to +45°C 14 to 113°F
Type: Main unit?Green LED
Response time: 250 ?s (FINE)/500 ?s (TURBO)/1 ms (SUPER TURBO)/4 ms (ULTRA TURBO)/500 ?s (HIGH RESOLUTION)/50 ?s (HIGH SPEED)
Size: 30 mm (H) x 9 mm (W) x 70 mm (D) 1.18" (H) x 0.35" (W) x 2.76" (D)
Light source LED: Green LED
Output selection: LIGHT-ON/DARK-ON (switch-selectable)
Detection mode: Light intensity/rising edge/falling edge
Shift function: Max. ±1999 (variable)
Timer function - Mode: Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, selectable
Timer function - Accuracy: ±10% of the Preset Value
Timer function - Variable range: 1 to 30 ms (in 1 ms increments), 30 to 50 ms (in 2 ms increments), 50 to 200 ms (in 10 ms increments), 200 to 500 ms (in 50 ms increments)
Control output: NPN open-collector 100 mA max. (40 VDC max.) *1,Residual voltage: 1 V max.
Unit expansion: Up to 16 expansion units can be connected (a total of 17 units).*2
Mutual interference suppression: HIGH SPEED/ HIGH RESOLUTION: 0, FINE : 4, TURBO/SUPER/ULTRA: 8

Rating - Power voltage: 12 to 24 VDC ±10%, ripple: 10% max., Class 2
Rating - Power consumption - Normal: S-APC OFF: 580 mW max.(24 mA max. at 24 VDC), S-APC ON: 720 mW max.(30 mA max. at 24 VDC)
Rating - Power consumption - Normal(S-APC ON): 720 mW (30 mA or less)*3
Rating - Power consumption - Normal(S-APC OFF): 580 mW (24 mA or less)*3
Current consumption - ECO half: S-APC OFF: 480 mW max.(20 mA max. at 24 VDC), S-APC ON: 600 mW max.(25 mA max. at 24 VDC)
Rating - Power consumption - S-APC ON(Eco-Half): 600 mW (25 mA or less)*3
Rating - Power consumption - Eco-Half(S-APC OFF): 480 mW (20 mA or less)*3
Current consumption - ECO all: S-APC OFF: 430 mW max.(18 mA max. at 24 VDC), S-APC ON: 550 mW max.(23 mA max. at 24 VDC)
Rating - Power consumption - Eco-All(S-APC ON): 550 mW (23 mA or less)*3
Rating - Power consumption - Eco-All(S-APC OFF): 430 mW (18 mA or less)*3
Environmental resistance - Operating ambient luminance: Incandescent lamp: 20000 lux max., Sunlight: 30000 lux max.
Environmental resistance - Operating temperature range: -10 to +55°C 14 to 131°F, No freezing*4
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
Environmental resistance - Shock resistance: 500 m/s2 in X, Y, and Z directions, 3 times respectively
Case material: Polycarbonate
