2868648

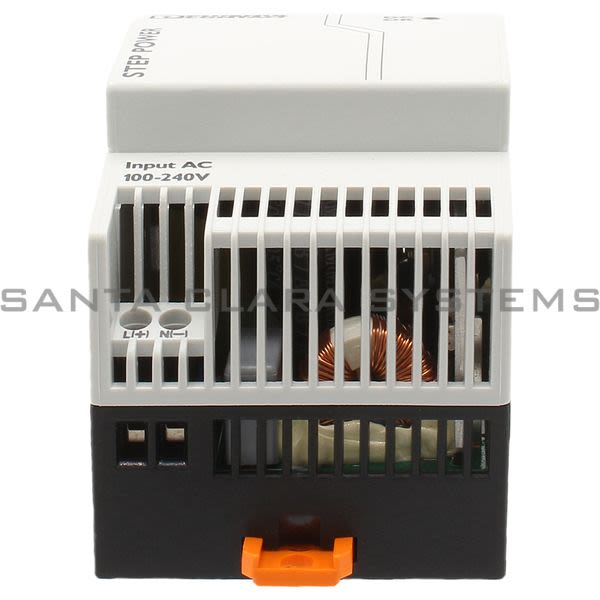

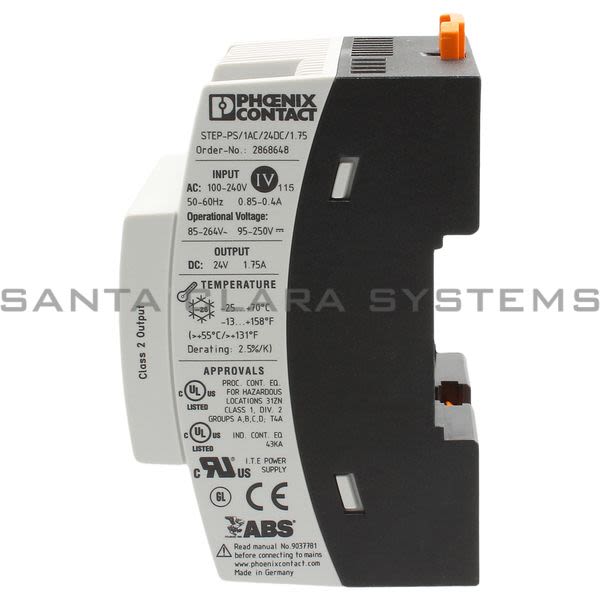

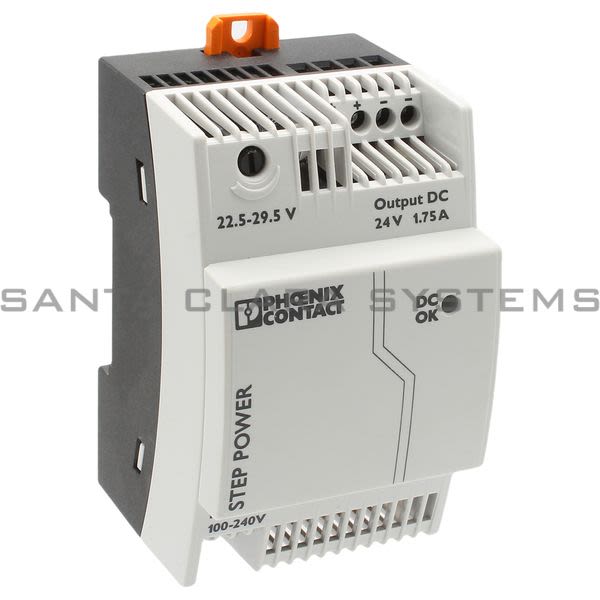

Phoenix Contact - Power Supply Unit - STEP-PS/ 1AC/24DC/1.75

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Power Supply Unit - STEP-PS/ 1AC/24DC/1.75
Degree of protection: IP20
Mounting position: horizontal DIN rail NS 35, EN 60715
Nominal input voltage range: 100 V AC ... 240 V AC
Input voltage range: 85 V AC ... 264 V AC
AC Frequency Range: 45 Hz ... 65 Hz
Frequency range DC: 0 Hz
Current consumption: 0.6 A (120 V AC) / 0.3 A (230 V AC)
Nominal power consumption: 84.2 VA
Inrush surge current: < 15 A (typical)
Mains buffering: typ. 25 ms (120 V AC) / 150 ms (230 V AC)

Input fuse: 3.15 A (slow-blow, internal)
Choice of suitable circuit breakers: 6 A ... 16 A (Characteristics B, C, D, K)
Power factor (cos phi): 0.57
Type of protection: Transient surge protection
Protective circuit/component: Varistor
Nominal output voltage: 24 V DC 1 %
Setting range of the output voltage: 22.5 V DC ... 29.5 V DC
Nominal output current: 1.75 A
Output power: 42 W
Protection class: II (in closed control cabinet)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 2868648 . Santa Clara Systems carries 1,223 items from Phoenix Contact.

The Step Power Power Supply Range Was Developed Especially For Building Automation. The Low Idling Losses And High Degree Of Efficiency Ensure Maximum Energy Efficiency. They Allow Flexible Use And Can Be Snapped Onto The Din Rail Or Screwed Onto An Even Surface.
