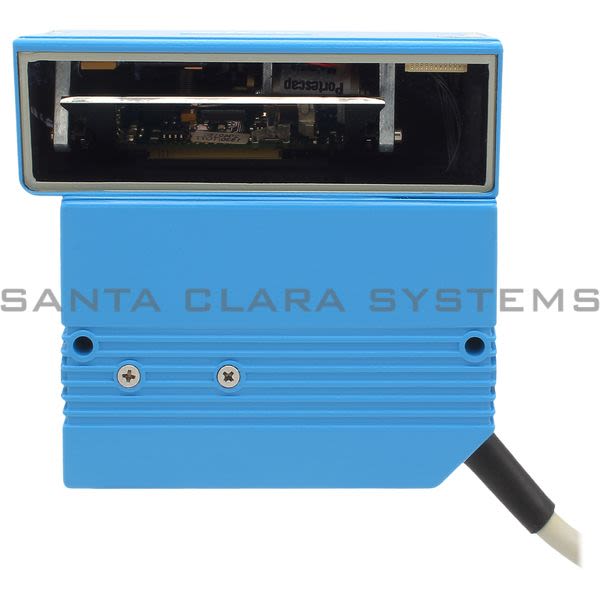

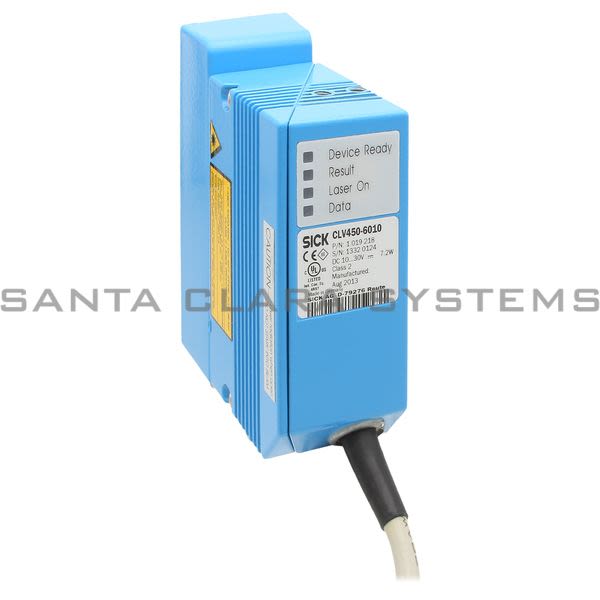

- Description: Bar Code Scanner Standard Density | 1019218
- Connection type: Standard
- Light source: Visible red light (650 nm)

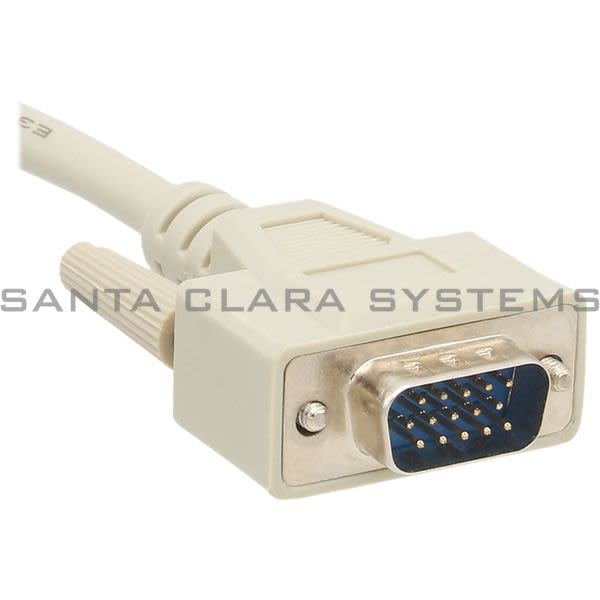

- Electrical connection: 1 x 15-pin D-Sub HD male connector (0.9 m)
- Version: Standard Density
- Operating voltage: 10 V DC ... 30 V DC 1)
- Reading field: Oscillating mirror
- Scanner design: Line scanner
- Focus: Dynamic focus control
- No. of distance configurations: ≤ 8
- Focus adjustment time: ≤ 50 ms
- Focus trigger source: Switching input “Sensor 2” / serial interface / timer
- MTBF: 20,000 h
- Laser class: 2 (DIN EN 60825-1)
- Aperture angle: ≤ 50°
- Scanning frequency: 400 Hz ... 1,000 Hz
- Code resolution: 0.25 mm ... 1 mm
- Reading distance: 125 mm ... 1,510 mm 1)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CLV450-6010 . Santa Clara Systems carries 4,974 items from Sick.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
