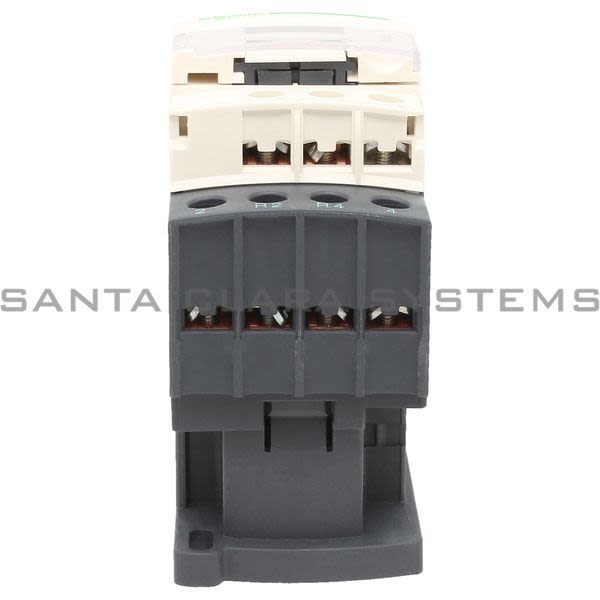

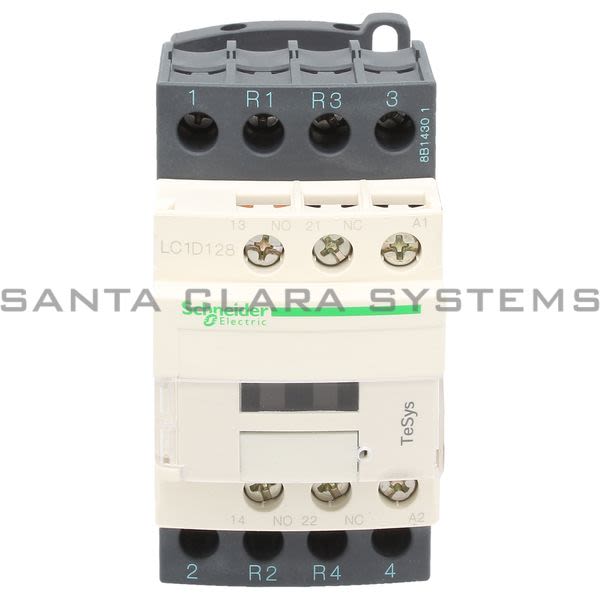

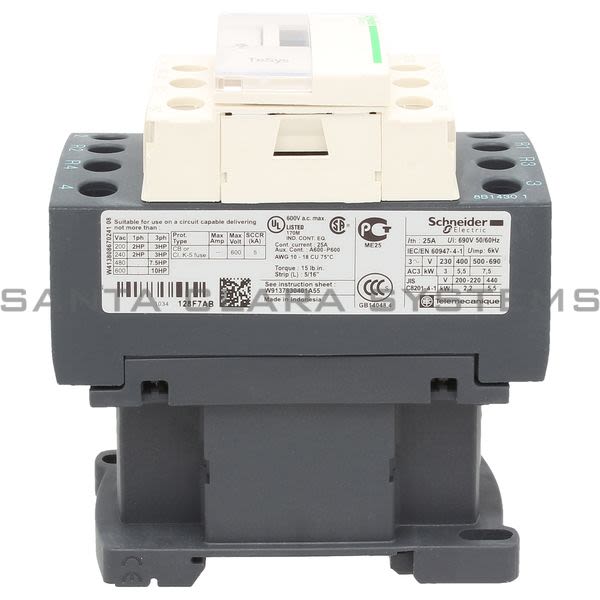

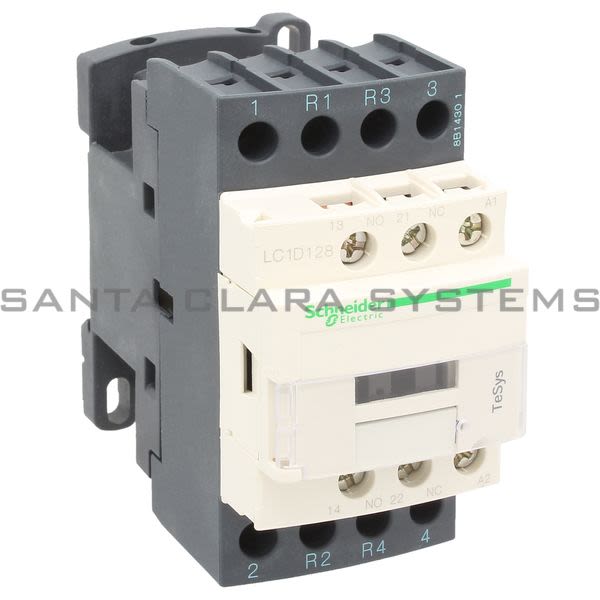

LC1D128F7

Telemecanique - Contactor

Current response time:

7 Minutes 59 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
Product weight: 0.8 lb(US) (0.365 kg)
Range of product: TeSys D
IP degree of protection: IP20 front face conforming to IEC 60529
Standards: CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508
Device short name: LC1D
Width: 1.77 in (45 mm)
Height: 3.35 in (85 mm)
Depth: 3.62 in (92 mm)
Protective treatment: TH conforming to IEC 60068-2-30
[Ui] rated insulation voltage: 600 V power circuit certifications CSA600 V power circuit certifications UL690 V power circuit conforming to IEC 60947-4-1690 V signaling circuit conforming to IEC 60947-1600 V signaling circuit certifications CSA600 V signaling circuit certifications UL
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 15 Mcycles
Tightening torque: Power circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver Philips No 2
Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endPower circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endPower circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endPower circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endPower circuit: screw clamp terminals 2 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endPower circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endPower circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable end
Range: TeSys
Mounting support: PlateRail
[Ith] conventional free air thermal current: 25 A at <= 140 °F (60 °C) power circuit10 A at <= 140 °F (60 °C) signaling circuit
System Voltage: <= 300 V DC power circuit<= 690 V AC 25...400 Hz power circuit
Operating rate: 3600 cyc/h at <= 140 °F (60 °C)
Product name: TeSys D
[Uc] control circuit voltage: 110 V AC 50/60 Hz
Electrical durability: 0.8 Mcycles 25 A AC-1 at Ue <= 440 V
Insulation resistance: > 10 MOhm signaling circuit
[Ie] rated operational current: 25 A (<= 140 °F (60 °C)) at <= 440 V AC AC-1 power circuit
Utilization category: AC-1
Control circuit voltage limits: 0.3...0.6 Uc drop-out at 140 °F (60 °C), AC 50/60 Hz0.8...1.1 Uc operational at 140 °F (60 °C), AC 50 Hz0.85...1.1 Uc operational at 140 °F (60 °C), AC 60 Hz
Poles description: 4P
Overvoltage category: III
Operating time: 4...19 ms opening12...22 ms closing

Associated fuse rating: 25 A gG at <= 690 V coordination type 2 power circuit40 A gG at <= 690 V coordination type 1 power circuit10 A gG signaling circuit conforming to IEC 60947-5-1
Control circuit type: AC 50/60 Hz
Coil technology: Without built-in suppressor module
inrush power in VA: 70 VA at 68 °F (20 °C) (cos ? 0.75) 60 Hz70 VA at 68 °F (20 °C) (cos ? 0.75) 50 Hz
Pollution degree: 3
Product or component type: Contactor
hold-in power consumption in VA: 7.5 VA at 68 °F (20 °C) (cos ? 0.3) 60 Hz7 VA at 68 °F (20 °C) (cos ? 0.3) 50 Hz
Ambient air temperature for operation: 23...140 °F (-5...60 °C)
Heat dissipation: 2...3 W at 50/60 Hz
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Contactor application: Resistive load
Auxiliary contacts type: Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1Type mirror contact (1 NC) conforming to IEC 60947-4-1
Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C) at Uc
Signaling circuit frequency: 25...400 Hz
Minimum switching current: 5 mA signaling circuit
Fire resistance: 1562 °F (850 °C) conforming to IEC 60695-2-1
Pole contact composition: 2 NO + 2 NC
Minimum switching voltage: 17 V signaling circuit
Flame retardance: V1 conforming to UL 94
Non-overlap time: 1.5 ms on energisation between NC and NO contact1.5 ms on de-energisation between NC and NO contact
Mechanical robustness: Vibrations contactor open 2 Gn, 5...300 HzVibrations contactor closed 4 Gn, 5...300 HzShocks contactor open 10 Gn for 11 msShocks contactor closed 15 Gn for 11 ms
Auxiliary contact composition: 1 NO + 1 NC
Irms rated making capacity: 250 A at 440 V power circuit conforming to IEC 60947140 A AC signaling circuit conforming to IEC 60947-5-1250 A DC signaling circuit conforming to IEC 60947-5-1
Rated breaking capacity: 250 A at 440 V power circuit conforming to IEC 60947
[Icw] rated short-time withstand current: 105 A <= 104 °F (40 °C) 10 s power circuit210 A <= 104 °F (40 °C) 1 s power circuit30 A <= 104 °F (40 °C) 10 min power circuit61 A <= 104 °F (40 °C) 1 min power circuit100 A 1 s signaling circuit120 A 500 ms signaling circuit140 A 100 ms signaling circuit
Average impedance: 2.5 mOhm at 50 Hz - Ith 25 A power circuit
Power dissipation per pole: 1.56 W AC-1
Protective cover: With
Product certifications: GLCSARINACCCULDNVBVGOSTLROS (Lloyds register of shipping)
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
