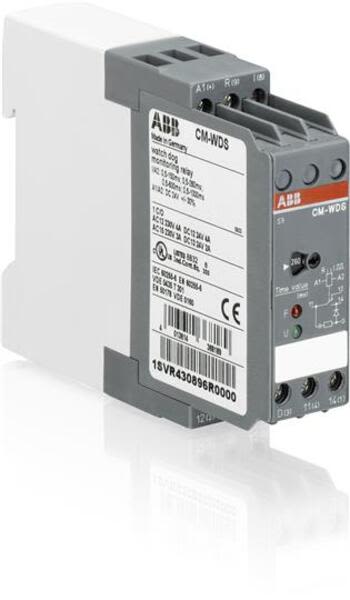

- Description: CM-WDS Cycle monitoring relay watchdog function, 1c/o, 0.5ms-1s, 24VDC
- Product ID: 1SVR430896R0000
- Extended Product Type: 1SVR430896R0000
- Product Net Weight: 0.163 kg
- Product Net Width: 22.5 mm
- Product Net Height: 78 mm
- Product Net Depth: 100 mm
- Terminal Type: Screw Terminals
- Function: Cycle monitor with watchdog function
- eClass: 7.0 27379201
- GOST Certificate: GOST_POCC_AB76.B01136
- Rated Control Supply Voltage (U<sub>s</sub>): 24 V DC
- Output: 1 c/o (SPDT) contact
- EAN: 4013614368189
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 81 mm
- Package Level 1 Height: 106 mm
- Package Level 1 Length: 26 mm
- Package Level 1 Gross Weight: 0.184 kg
- Package Level 1 Units: 1 piece
- Measuring Range: 0.5 ... 1000 ms
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SVC430510M0000
- cUL Certificate: cUL508_E140448
- Data Sheet, Technical Information: 2CDC112003D0201
- Declaration of Conformity - CE: 1SVD981019-0000
- RMRS Certificate: RMRS_12.04009.250
- RoHS Information: 1SAA981037-4401
- UL Certificate: UL508_E140448
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- UNSPSC: 39121500
- Object Classification Code: B
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CM-WDS . Santa Clara Systems carries 36,682 items from ABB.
- The Cm-Wds Relay Is From The Cm Cycle Monitor Range. This Cycle Monitoring Relay With Watchdog Function Operates With A Rated Control Supply Voltage Of 24 V Dc
- The Cm-Wds Relay Is From The Cm Cycle Monitor Range. This Cycle Monitoring Relay With Watchdog Function Operates With A Rated Control Supply Voltage Of 24 V Dc
- Has A 1 C/o (Spdt) Output Contact Rated At 250 V / 4 A And Works According To The Closed-Circuit Principle. The Cm-Wds Observes If A Regularly Intermittent Pulse Is Applied To The Input. It Has 4 Selectable Cycle Monitoring Time Ranges From 0.5 To 1000 Ms. A Sealable Transparent Cover For Protection Against Unauthorized Changes Is Available As Accessory.
