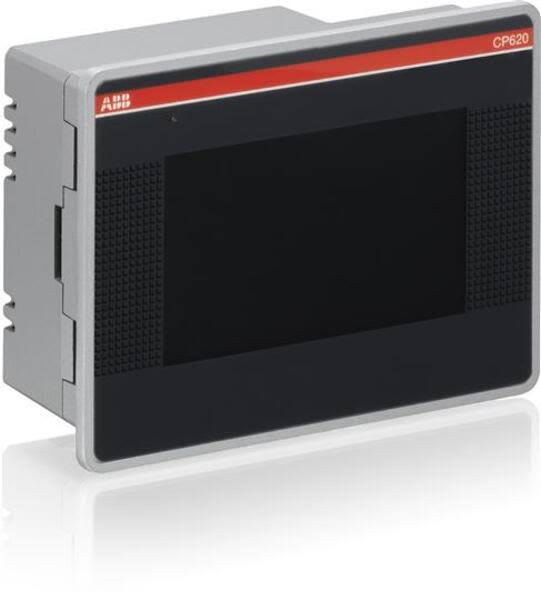

• ABB CP620 CP620:CP600, control panel, TFT grafic display, touchscreen, 4.3", 480 x 272 pixel, PB610 runtime license Product Image

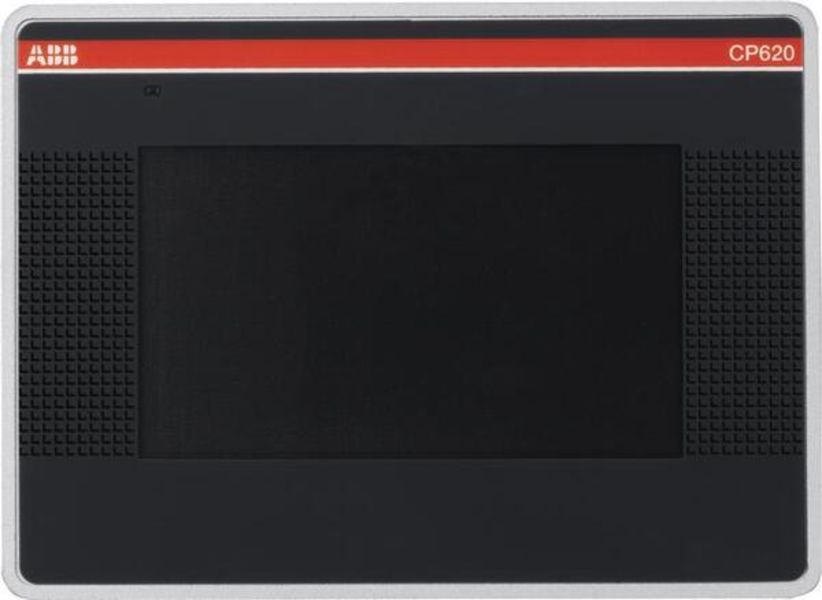

  • ABB CP620 CP620:CP600, control panel, TFT grafic display, touchscreen, 4.3", 480 x 272 pixel, PB610 runtime license Product Image
  • Abb CP620 Barcode

CP620

Let Us Find It

Current response time:

10 Minutes 51 Seconds
  • Description: CP620:CP600, control panel, TFT grafic display, touchscreen, 4.3", 480 x 272 pixel, PB610 runtime license
  • Product ID: 1SAP520100R0001
  • Extended Product Type: 1SAP520100R0001
  • Product Net Weight: 0.95 kg
  • Product Net Width: 147 mm
  • Product Net Height: 56 mm
  • Product Main Type: CP620
  • Product Name: Control Panels
  • Degree of Protection: acc. to IEC 60529 Front IP66 acc. to IEC 60529 Housing IP20
  • Ambient Air Temperature: Operation 0 +50 C Storage -20 ... +70 C
  • Product Net Length: 107 mm
  • Housing Material: Front side: Zamak Reverse side: Zamak
  • Country of Origin: Italy (IT)
  • Mounting Type: Front face
  • Order Multiple: 1 piece
  • Lead Time: 1 day(s)
  • Power Supply: 24 (18 ... 30) V DC
  • ABB Type Designation: CP620
  • EAN: 4016779864862
  • Criticality: No
  • Made To Order: No
  • Product Sales Status: Active
  • Quote Only: No
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85381000
  • Communication Interface: 2x Ethernet 100 MBit 1x RS232/422/485 1x USB 2.0 Host 1x SD card slot 1x Expansion slot
  • Language: English
  • Memory Size User Data: 128 MB
  • Memory Size User Program: 256 MB
  • Memory Type User Data: Flash Disk
  • Memory Type User Program: DDR RAM
  • Power Consumption: 9.6 W
  • Programming Software: PB610 Panel Builder 600
  • Real-time Clock: Hardware clock, battery back-up
  • Screen Color: 64k colors
  • Screen Resolution: 480 x 272 pixel
  • Screen Size: 16:9 wide screen 4.3 in
  • Screen Type: TFT color, LED backlight, touch screen
  • Security: Password protection with 8 user levels
  • Serial Port 1 Type: RS232/RS422/RS485
  • Service Life: 40000 hour(s)
  • USB Port 1 Type: Host, version 2.0
  • CSA Certificate: 1SAA960001-1701
  • cUL Certificate: 1SAA960000-1709
  • Declaration of Conformity - CE: 1SAD938502-0169
  • Declaration of Conformity - C-Tick: 1SAA960002-3301
  • Declaration of Conformity - KCC: 1SAA960002-4801
  • DNV Certificate: 1SAA960004-0303
  • Environmental Product Declaration - EPD: 1SAA960002-4501
  • RoHS Information: 1SAA960013-4401
  • UL Certificate: 1SAA960006-1601
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CP620 . Santa Clara Systems carries 36,673 items from ABB.
  • Pb610 Runtime License
  • Cp620 Control Panel 4.3" Tft Touch Screen
  • 64 K Colors
  • 480 X 272 Pixel
