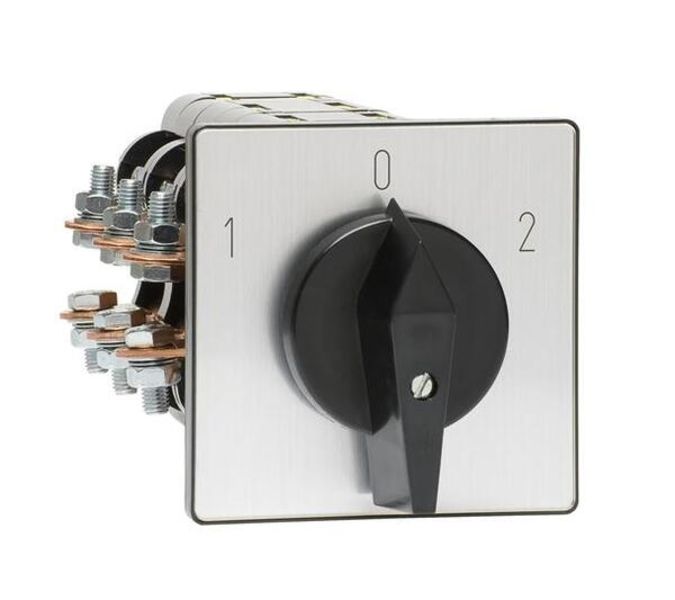

- Description: OL200U3RB Cam switch
- Product ID: 1SCA022790R7490
- Extended Product Type: 1SCA022790R7490
- Product Net Weight: 4.2 kg
- Product Net Width: 136 mm
- Product Net Height: 136 mm
- Product Net Depth: 303 mm
- Product Main Type: OL200
- Product Name: Cam switch
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 6 kV
- Rated Insulation Voltage (U<sub>i</sub>): 690 V
- Number of Poles: 3
- Terminal Type: Lug terminals
- Function: U3
- Color: Black
- Mounting Type: Screw and door mounting
- Handle Type: Basic handle
- Order Multiple: 1 piece
- Ampere Rating UL/CSA: 200 A
- Enclosure Type: Not enclosed
- EAN: 4034656528584
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 220 mm
- Package Level 1 Height: 190 mm
- Package Level 1 Length: 310 mm
- Package Level 1 Gross Weight: 4.2 kg
- Package Level 1 EAN: 4034656528584
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 315 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 250 A (690 V) 125 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 56 kW (415 V) 75 kW (500 V) 85 kW (690 V) 90 kW
- Rated Operational Voltage: 690 V
- Data Sheet, Technical Information: 1SCC302003C0201
- Declaration of Conformity - CE: 1SCC302001D0204
- RoHS Information: 1SCC302004D0201
- ETIM 5: EC002611 - Control switch
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OL200U3RB . Santa Clara Systems carries 36,682 items from ABB.
- Screw Mounted Handle
- With 0-Position
- Step Angle 60°
- Door Mounted
