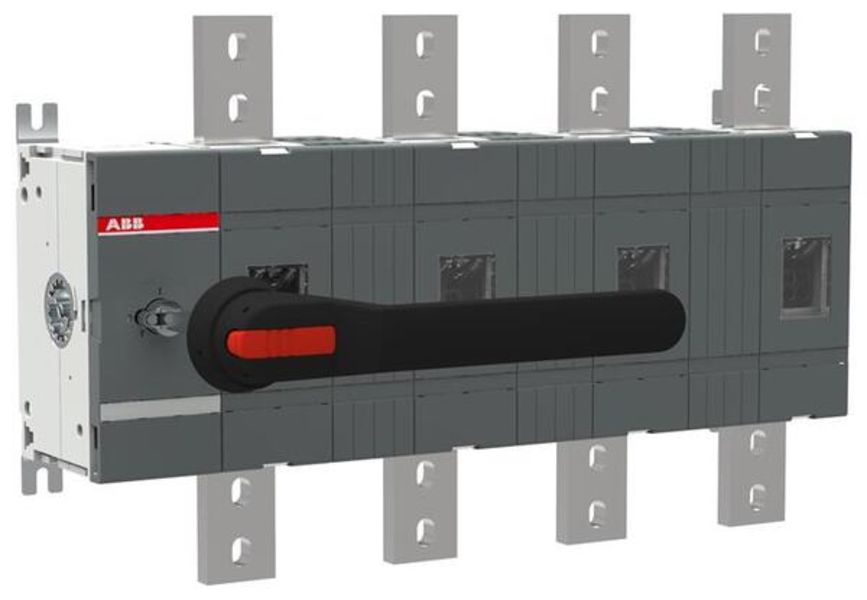

• ABB OT1600E04W4P OT1600E04W4P switch-disconnector Product Image
  • Abb OT1600E04W4P Barcode

OT1600E04W4P

Let Us Find It

Current response time:

9 Minutes 6 Seconds
  • Description: OT1600E04W4P switch-disconnector
  • Product ID: 1SCA022866R1090
  • Extended Product Type: 1SCA022866R1090
  • Product Net Weight: 22.3 kg
  • Product Net Width: 595 mm
  • Product Net Height: 372 mm
  • Product Net Depth: 146 mm
  • Product Main Type: OT1600
  • Product Name: Switch-disconnector
  • Standards: IEC
  • Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
  • Rated Insulation Voltage (U<sub>i</sub>): 1000 V
  • Number of Poles: 4
  • Terminal Type: Lug terminals
  • Power Loss: at Rated Operating Conditions per Pole 48 W
  • Tightening Torque: acc. IEC 60947-1 50 75 N&#183;m
  • Mounting Type: Normal
  • Handle Type: Pistol
  • Order Multiple: 1 piece
  • Switches Operating Mechanism: Mechanism at the End of the Switch
  • Position of Line Terminals: Top In - Bottom Out
  • Special Functions: Wide phase distance 140
  • Operating Mode: Front Operated
  • EAN: 6417019335315
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 400 mm
  • Package Level 1 Height: 170 mm
  • Package Level 1 Length: 613 mm
  • Package Level 1 Gross Weight: 22.3 kg
  • Package Level 1 EAN: 6417019335315
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-06-01
  • Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 1600 A
  • Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 1600 A
  • Earthing Switch Type: No Additional Type
  • IIT Publishing Status: Level 0 - Information enabled
  • Includes: Handle and Shaft
  • Pollution Degree: 3
  • Rated Operational Current AC-21A (I<sub>e</sub>): (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
  • Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
  • Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
  • Rated Operational Power AC-23A (P<sub>e</sub>): (400 V) 710 kW (415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW
  • Rated Operational Voltage: 1000 V
  • Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 50 kiloampere rms
  • Suitable for Product Class: Switch-disconnector
  • Terminal Width: 50 mm
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Declaration of Conformity - CE: 1SCC301157D0202
  • RoHS Information: 1SCC301149D0202
  • ETIM 5: EC000216 - Switch disconnector
  • Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT1600E04W4P . Santa Clara Systems carries 36,673 items from ABB.
  • Including A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
  • Including A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
  • <Br/>padlockable In The Off-Position And With Door Interlock In The On-Position. The Shaft Is Adjustable For<Br/>a Range Of Installation Depths.
