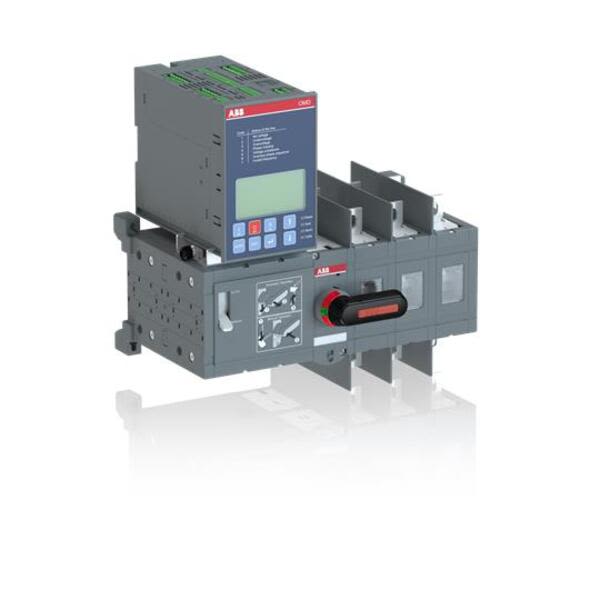

- Description: OTM250E3WC8D230C AUTOMATIC C/O SWITCH
- Product ID: 1SCA101038R1001
- Extended Product Type: 1SCA101038R1001
- Product Net Weight: 10 kg
- Product Net Width: 296 mm
- Product Net Height: 300 mm
- Product Net Depth: 197 mm
- Product Main Type: OTM250_C_D
- Product Name: AUTOMATIC C/O SWITCH
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 3
- Power Loss: 6.5 W
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- EAN: 6417019359649
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 400 mm
- Package Level 1 Height: 325 mm
- Package Level 1 Length: 400 mm
- Package Level 1 Gross Weight: 10.16 kg
- Package Level 1 EAN: 6417019359649
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 250 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 250 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 250 A (690 V) 250 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 250 A (690 V) 250 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 75 kW (400 V) 140 kW (500 V) 170 kW (690 V) 250 kW
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 8 kiloampere rms
- Data Sheet, Technical Information: 1SCC303003C0201
- Declaration of Conformity - CE: 1SCC303024D0202
- RoHS Information: 1SCC303036D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTM250E3WC8D230C . Santa Clara Systems carries 36,683 items from ABB.
- Please Add Letter “b” To The Type Code. For Example
- Otm160e4c8d230cotm160e4cb8d230c. With Extended Phase Distance.
- Including A Handle For Manual Operation
- Pcb Connectors
- Bolt Kit With Nuts And Washers For All Terminals. Including A Voltage Sensing Kit On The Top Of The Switch. Voltage Sensing Kit On The Bottom On The Switch
- Available On Request
