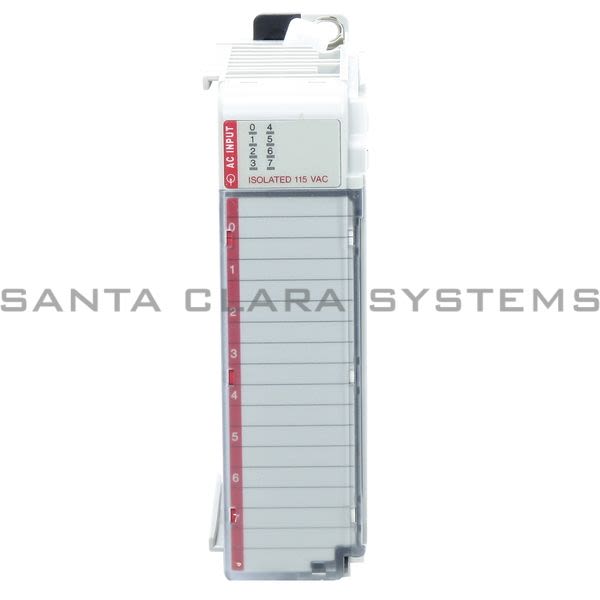

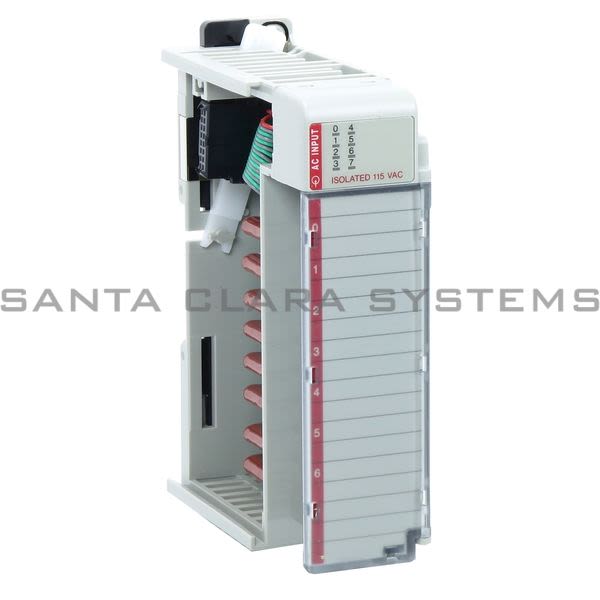

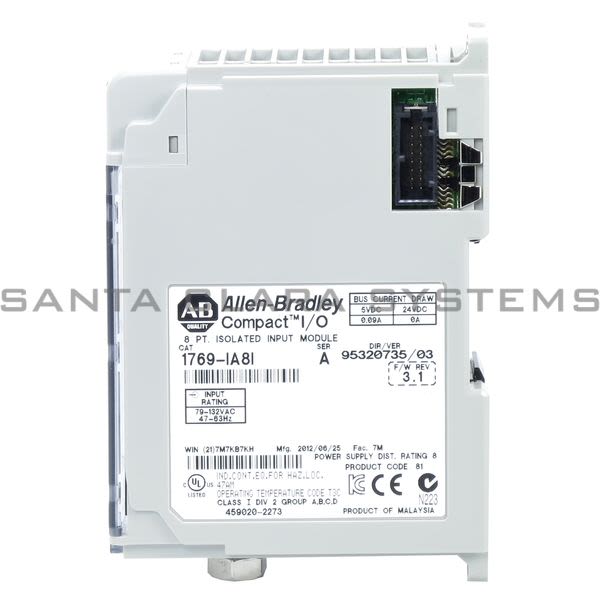

1769-IA8I

Allen Bradley - Input Module Isolated | Compact I/O

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Input Module Isolated | Compact I/O
Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Wire size: (22... 14AWG) solid (22... 16AWG) stranded
Inputs: 8 individually isolated
Voltage category: 100/120V AC
Operating voltage range: 79... 132 V AC, 47... 63 Hz
Input delay, on: 20 ms
Input delay, off: 20 ms
Current draw @ 5.1 V: 90 mA
Heat dissipation, max: 1.81 W
Off-state voltage, max: 20V AC
Off-state current, max: 2.5 mA
On-state voltage, min: 79V AC
On-state current, min: 5 mA @ 74V AC
On-state current, max: 12 mA @ 120V AC

Inrush current, max: 250 mA
Input impedance, max: 12k @ 50 Hz / 10k @ 60 Hz
Isolation voltage: Verified by one of the following dielectric test: 1517V AC for 1 s or 2145V DC for 1 s, input point to bus and group to group. 132V AC working voltage (IEC Class 2 reinforced insulation)
Weight, approx: 270 g (0.60 lb)
Dimensions (H x W x D), approx: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in) Height with mounting tabs 138 mm (5.43 in)
Slot width: 1
Module location: DIN rail or panel mount
Power supply distance rating: 8 modules
Terminal screw torque: 0.68 N m (6 lb in)
Retaining screw torque: 0.46 N m (4.1 lb in)
Wire type: Cu-90*C (194*F)
IEC input compatiblity: Type 1+
Replacement terminal block: 1769-RTBN18 (1 per kit)
Replacement door label: 1769-RL1 (2 per kit)
Replacement door: 1769-RD (2 per unit)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1769-IA8I . Santa Clara Systems carries 53,635 items from Allen Bradley.
