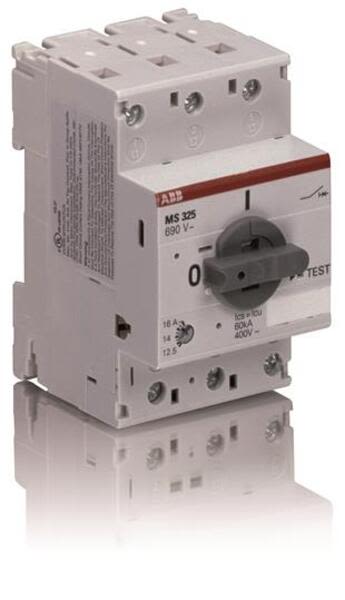

• ABB 1SAM150000R1006 Manual Motor Starter | MS325-1.6 Product Image
  • Abb 1SAM150000R1006 Barcode

1SAM150000R1006

Product Summary:

  • Extended Product Type: MS325-1.6
  • Product ID: 1SAM150000R1006
  • EAN: 4013614195020
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010
Let Us Find It
           or
  • Description: Manual Motor Starter | MS325-1.6
  • Recommended Screw Driver: M3.5 Pozidriv 2
  • Mounting Position: Position 1 to 6
  • Actuator Type: Rotary Handle
  • Contact Position Indication: ON / OFF
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1
  • Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 100 kA (500 V AC) 100 kA (690 V AC) 100 kA
  • Ambient Air Temperature Compensation: Yes
  • Maximum Operating Altitude Permissible: 2000 m
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 15g
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 10 ... 150 Hz
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Ambient Air Temperature: Around the Enclosure 0 ... +40 °C Operation -25 ... +50 °C Operation Compensated -25 ... +50 °C Storage -50 ... +80 °C
  • Horsepower Rating UL/CSA: (440 ... 480 V AC) Three Phase 0.75 Hp (550 ... 600 V AC) Three Phase 0.75 Hp
  • Ampere Rating UL/CSA: 1.6 A
  • Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 14-8 AWG Stranded 1/2x 14-8 AWG
  • Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb Main Circuit 14 in·lb
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
  • Data Sheet, Technical Information (Part 2): 1SAM100513F0006
  • Instructions and Manuals: 2CDC131005M5703
  • ATEX Certificate: 1SAA918000-3903
  • BV Certificate: 1SAA918000-0204
  • CB Certificate: 1SAA918000-2002
  • CCC Certificate: 1SAA918000-3806
  • cUL Certificate: cUL_E137861 cUL_E345003
  • Data Sheet, Technical Information: 2CDC131046D0201
  • Declaration of Conformity - CE: 1SAD938513-0003
  • DNV Certificate: 1SAA918000-0305
  • GL Certificate: 1SAA918000-0403
  • GOST Certificate: 1SAA918000-2703
  • LR Certificate: 1SAA918000-0503
  • RINA Certificate: 1SAA918000-0803
  • RMRS Certificate: 1SAA918000-0703
  • RoHS Information: 1SAA918001-4401
  • UL Certificate: UL_E137861 UL_E345003
  • ETIM 4: EC000074 - Motor protective circuit-breaker
  • ETIM 5: EC000074 - Motor protective circuit-breaker
  • ETIM 6: EC000074 - Motor protection circuit-breaker
  • eClass: 7.0 27370401
  • UNSPSC: 39121521
  • Object Classification Code: F
  • Extended Product Type: MS325-1.6
  • Product ID: 1SAM150000R1006
  • EAN: 4013614195020
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010
  • Replacement Product ID (NEW): 1SAM350000R1006
  • EAN: 4013614195020
  • Package Level 1 Width: 92 mm
  • Package Level 1 Length: 58 mm
  • Package Level 1 Height: 78 mm
  • Package Level 1 Gross Weight: 0.37 kg
  • Package Level 2 Units: 24 piece
  • Package Level 2 Width: 280 mm
  • Package Level 2 Length: 395 mm
  • Package Level 2 Height: 210 mm
  • Package Level 2 Gross Weight: 0.61 kg
  • Package Level 2 EAN: 4013614494444
  • Package Level 1 Units: 1 piece
  • Product Net Height: 87.5 mm
  • Product Net Depth: 75.5 mm
  • Product Net Weight: 0.34 kg
  • Product Net Width: 54 mm
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 100 kA (500 V AC) 100 kA (690 V AC) 100 kA
  • Rated Instantaneous Short-Circuit Current Setting (Ii): 18.4 A
  • Setting Range: 1 ... 1.6 A
  • Rated Operational Power AC-3 (Pe): (400 V) Three Phase 0.55 kW
  • Rated Operational Voltage: Main Circuit 690 V AC Main Circuit 440 V DC
  • Rated Operational Current (Ie): 1.6 A
  • Rated Operational Current AC-3 (Ie): 1.6 A
  • Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
  • Rated Insulation Voltage (Ui): 690 V
  • Power Loss: at Rated Operating Conditions per Pole 0.8 ... 2.1 W
  • Number of Poles: 3
  • Conventional Free-air Thermal Current (Ith): Main Circuit 1.6 A
  • Degree of Protection: IP20
  • Pollution Degree: 3
  • Electrical Durability: 50000 cycle
  • Mechanical Durability: 100000 cycle
  • Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 4 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm² Flexible 1/2x 1 ... 6 mm² Rigid 1/2x 1 ... 6 mm²
  • Tightening Torque: Main Circuit 1.4 N·m
  • Wire Stripping Length: Auxiliary Circuit 8 mm Main Circuit 10 mm
