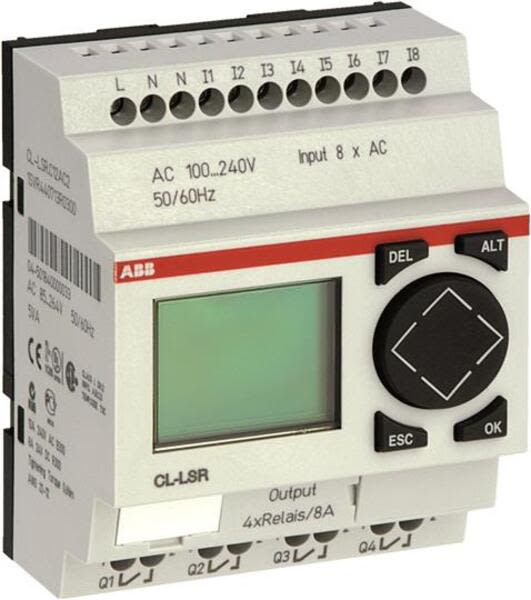

- Description: CL-LSR.CX12AC1 Logic relay 24VAC, 8I/4O, relay
- Product ID: 1SVR440712R0200
- Extended Product Type: 1SVR440712R0200
- Product Net Weight: 0.2 kg
- Product Net Width: 71.5 mm
- Product Net Height: 90 mm
- Product Net Depth: 58 mm
- Function: Logic relays stand alone
- eClass: 7.0 27242216
- GOST Certificate: GOST_0197271
- GL Certificate: GL_44543-07HH
- Sub-Function: Non expandable
- EAN: 4013614389566
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85371091
- Package Level 1 Width: 78 mm
- Package Level 1 Height: 67 mm
- Package Level 1 Length: 94 mm
- Package Level 1 Gross Weight: 0.254 kg
- Package Level 1 Units: 1 piece
- Number of Digital In/Outputs: 8 Digital Inputs / 4 Relay Outputs
- Rated Operational Voltage: 24 V AC
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SVC440796M3000
- CSA Certificate: CSA_1875990
- Data Sheet, Technical Information: 2CDC110004C0209
- Declaration of Conformity - CE: 1SVD982001-0000
- LR Certificate: LR_07_20020
- RoHS Information: 1SAA981046-4401
- UL Certificate: UL_E179811
- ETIM 4: EC001417 - Logic module
- ETIM 5: EC001417 - Logic module
- ETIM 6: EC001417 - Logic module
- UNSPSC: 39121500
- Object Classification Code: K
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CL-LSR.CX12AC1 . Santa Clara Systems carries 36,687 items from ABB.
- 16 Analog Value Comparators And Threshold Value Switches
- The Cl-Lsr.cx12ac1 Is A Logic Relay From The Cl Range. It Has 8 Digital Inputs And 4 Relay Outputs. The Logic Relay Operates With An Input Voltage Of 24 V Ac. 128 Rungs With 3 Contacts In Series Plus 1 Coil Can Be Programmed. The Following Functions Are Available: 8 Week And 8 Year Timers
- 16 Multifunction Timing Relays
- 4 Operating Hours Counters
