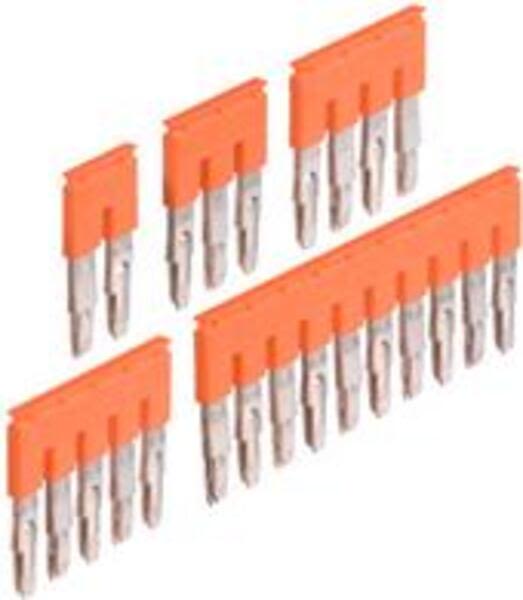

- Description: JB10-3 Jumper Bar - Orange
- Product ID: 1SNK910303R0000
- Extended Product Type: 1SNK910303R0000
- Product Net Weight: 7.1 g
- Product Net Width: 10 mm
- Product Net Height: 28 mm
- Product Net Depth: 31.5 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 6000 V
- Rated Current (I<sub>n</sub>): Main Circuit 76 A
- Function: Jumper Bars
- Power Loss: 2.4 W
- Color: Orange
- Suitable For: ZK10 ZK10-3P ZK10-PE ZK10-PE-3P ZS16
- Product Net Length: 31.5 mm
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V
- Rated Voltage (U<sub>r</sub>): 1000 V
- Spacing: 10 mm
- Dielectric Test Voltage: 2200 V
- Insulation Material: Polyamide
- EAN: 3472599097735
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85369010
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 1920 A
- Pollution Degree: 3
- Flammability According to UL94: V0
- Resistance to Vibrations acc. to IEC 60068-2-6: Compliant
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNK160027C0201
- ATEX Certificate: 1SND162004A1706
- CB Certificate: 1SND161021A0201
- Data Sheet, Technical Information: 1SNK160031D0201
- RoHS Information: 1SND230499F0202
- E-nummer: 2925384
- ETIM 4: EC000489 - Cross-connector for terminal block
- ETIM 5: EC000489 - Cross-connector for terminal block
- ETIM 6: EC000489 - Cross-connector for terminal block
- Object Classification Code: X
- Package Level 1 Width: 50 mm
- Package Level 1 Length: 117 mm
- Package Level 1 Height: 50 mm
- Package Level 1 Gross Weight: 0.355 kg
- Package Level 1 EAN: 3472599097735
- Package Level 2 Units: 1500 piece
- Package Level 3 Units: 144000 piece
- Package Level 1 Units: 50 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on JB10-3 . Santa Clara Systems carries 36,687 items from ABB.
- - Perfectly Adapted To Low Level Electrical Contact (20ma
- 50mv).
- Facilitate & Secure Your Jumper Bar Assembly Process: - Screwless Mounting
- - Pre-Cut Poles For Alternated Jumpering Between Terminal Blocks
- - Insulated
- - Positive Locking
