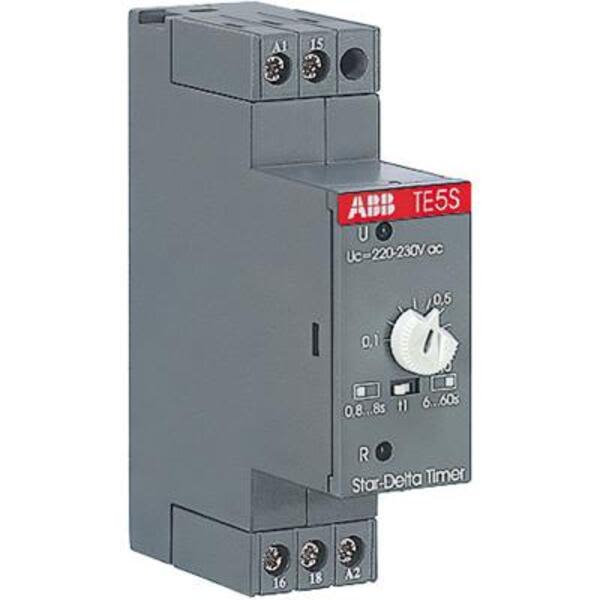

- Description: Electronic Timer | 1SBN020010R1003
- Product ID: 1SBN020010R1003
- Extended Product Type: 1SBN020010R1003
- Product Net Weight: 0.080 kg
- Product Net Width: 23 mm
- Product Net Height: 85 mm
- Product Net Depth: 75 mm
- Product Main Type: Accessories for Block Contactors
- Product Name: Electronic Timer
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- Rated Insulation Voltage (U<sub>i</sub>): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 440 V
- Terminal Type: Screw Terminals
- Rated Frequency (f): Supply Circuit 50 Hz Supply Circuit 60 Hz
- Suitable For: AX06 AX09 AX12 AX18 AX25 AX32 AX40 AX50 AX65 AX80 AX95 AX115 AX150 AX185 AX205
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Rated Control Circuit Voltage (U<sub>c</sub>): 220 240 V AC
- Maximum Mechanical Switching Frequency: 720 cycles per hour
- Connecting Capacity Auxiliary Circuit: Rigid Cable 1 ... 2.5 mm Flexible with Cable End 0.75 ... 2.5 mm
- Number of Main Contacts NC: 0
- Coil Consumption: Average Holding Value 50 Hz 6.5 V·A Average Holding Value 60 Hz 6.5 V·A
- Rated Control Supply Voltage (U<sub>s</sub>): 220 240 V AC
- EAN: 3471522121677
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 23 mm
- Package Level 1 Height: 85 mm
- Package Level 1 Gross Weight: 0.08 kg
- Package Level 1 EAN: 3471522121677
- Resistance to Shock acc. to IEC 60068-2-27: Half-sine Pulse for 11 ms, Shock Direction: A 20 m/s Half-sine Pulse for 11 ms, Shock Direction: B 15 m/s Half-sine Pulse for 11 ms, Shock Direction: C 20 m/s
- RoHS Status: No declaration needed
- Connecting terminals (delivered in open position) Built-in auxiliary terminals: (+,-) pozidriv 1 screw
- Connecting terminals (delivered in open position) Coils terminals: (+,-) pozidriv 1 screw
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-5-1, q = 40 C 10.0 A
- IIT Publishing Status: Level 0 - Information enabled
- Mounted Auxiliary Contacts: 1 NO, 1 NC
- Rated Frequency Limits: 48 63 Hz
- Rated Operational Current AC-15 (I<sub>e</sub>): (220 / 240 V) 4 A (24 / 127 V) 5 A (220 / 240 V) 4 A (24 / 127 V) 5 A (380 / 440 V) 3 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (24 V) 4 A
- Rated Operational Voltage: Main Circuit 240 V
- Time Range: Direct 0.8...8 s or 6...60 s
- cUL Certificate: UL_E191693
- Data Sheet, Technical Information: 1SBC100122C0202_Ch04
- Declaration of Conformity - CE: 1SBD250815U1000
- RoHS Information: 1SBC101061D0201
- UL Certificate: UL_E191693
- E-nummer: 4033104
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- Object Classification Code: K
- UNSPSC: 39121500
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TE5S-240 . Santa Clara Systems carries 36,687 items from ABB.
- Te5s-240 Electronic Timer
