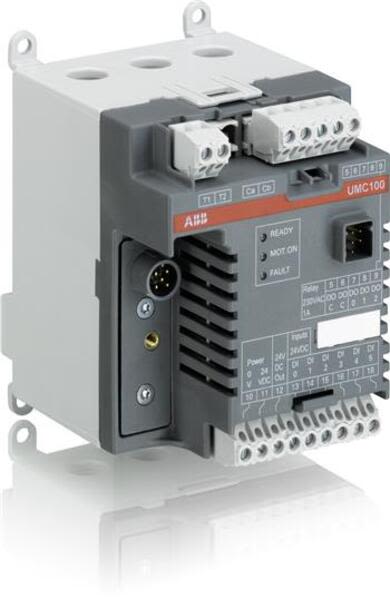

• ABB 1SAJ520000R0201 UMC100 Universal Motor Controller ATEX Replaces UMC100 1SAJ520000R0200 ATEX Product Image
  • Abb 1SAJ520000R0201 Barcode

1SAJ520000R0201

Produktübersicht:

  • Extended Product Type: UMC100-FBP.0
  • Product ID: 1SAJ520000R0201
  • EAN: 4013614480713
  • EAN: 4013614480713
  • Minimum Order Quantity: 1 piece
Lassen Sie es uns finden!
           oder
rufen Sie an 1 (888) 450-0301
  • Beschreibung: UMC100 Universal Motor Controller ATEX Replaces UMC100 1SAJ520000R0200 ATEX
  • Pollution Degree: 3
  • Power Loss: Approximately 3 W
  • Product Main Type: UMC100-FBP
  • Product Name: Universal Motor Controllers
  • Rated Control Supply Voltage (Us): 24 V DC
  • Rated Frequency (f): Main Circuit 50 / 60 Hz
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV Auxiliary Circuit 4 kV
  • Rated Insulation Voltage (Ui): 690 V
  • Rated Operational Current AC-15 (Ie): (240 V) 1.5 A
  • Rated Operational Current DC-13 (Ie): (24 V) 1 A (125 V) 0.22 A (250 V) 0.11 A
  • Rated Operational Voltage: Main Circuit 690 V AC Auxiliary Circuit 12 ... 250 V AC/DC
  • Setting Range: 0.24 ... 63 A
  • Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-8 IEC/EN 60079-7 IEC/EN 60947-5-1 UL 508 CAN/CSA C22.2 No.14
  • CB Certificate: 1SAA962001-2002
  • Data Sheet, Technical Information: 2CDC135021D0203b
  • Declaration of Conformity - CE: 1SVD981037-0000
  • DNV Certificate: DNV_E-13261
  • GL Certificate: 1SAA962005-0401
  • eClass: 7.0 27370804
  • ETIM 4: EC002572 - Electronic motor control and protection device
  • ETIM 5: EC002572 - Electronic motor control and protection device
  • ETIM 6: EC002572 - Motor management device
  • Object Classification Code: B
  • Extended Product Type: UMC100-FBP.0
  • Product ID: 1SAJ520000R0201
  • EAN: 4013614480713
  • EAN: 4013614480713
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85371091
  • Product Net Width: 70 mm
  • Product Net Height: 105 mm
  • Product Net Depth: 87.5 mm
  • Product Net Weight: 0.36 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 103 mm
  • Package Level 1 Height: 71 mm
  • Package Level 1 Length: 141 mm
  • Package Level 1 Gross Weight: 0.37 kg
  • Ambient Air Temperature: Operation 0 . +60 °C Storage -25 +70 °C
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 150 m/s²
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 150 Hz
  • RoHS Status: No declaration needed
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
  • Degree of Protection: IP20
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position: Any
  • Number of Poles: 3
Santa Clara Systems ist spezialisiert auf schwierig auffindbare Artikel. Wählen Sie aus unseren Lagerüberschüssen und sparen Sie 1SAJ520000R0201 . Santa Clara Systems führt 35,866 Artikel von ABB.
