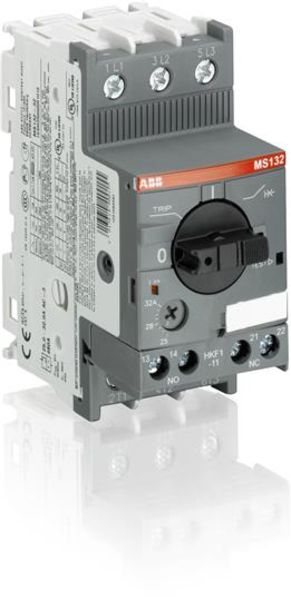

• ABB 1SAM350005R1011 MS132-16-HKF1-11 Manual Motor Starter Product Image
  • Abb 1SAM350005R1011 Barcode

1SAM350005R1011

Produktübersicht:

  • Product ID: 1SAM350005R1011
  • Extended Product Type: MS132-16-HKF1-11
  • Product Net Weight: 0.326 kg
  • Product Net Width: 45 mm
  • Product Net Height: 97.8 mm
Lassen Sie es uns finden!

current response time:

By 5AM PT on Monday
  • Beschreibung: MS132-16-HKF1-11 Manual Motor Starter
  • Product ID: 1SAM350005R1011
  • Extended Product Type: MS132-16-HKF1-11
  • Product Net Weight: 0.326 kg
  • Product Net Width: 45 mm
  • Product Net Height: 97.8 mm
  • Product Net Depth: 86.55 mm
  • Degree of Protection: Housing IP20 Main Circuit Terminals IP10
  • Ambient Air Temperature: Around the Enclosure 0 ... +40 C Operation -25 ... +70 C Operation Compensated -25 ... +60 C Storage -50 ... +80 C
  • Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
  • Rated Insulation Voltage (Ui): 690 V
  • Number of Poles: 3
  • Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
  • Power Loss: at Rated Operating Conditions per Pole 1.1 ... 2.8 W
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • eClass: 7.0 27370401
  • Tightening Torque: Auxiliary Circuit 0.8 ... 1.2 N·m Main Circuit 2 N·m
  • Actuator Type: Rotary Handle
  • Mounting Position: Position 1 to 6
  • Mechanical Durability: 100000 cycle
  • Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 6 mm Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm Flexible 1/2x 1 ... 2.5 mm Flexible 1/2x 2.5 ... 6 mm Rigid 1/2x 1 ... 2.5 mm Rigid 1/2x 2.5 ... 6 mm
  • GOST Certificate: 1SAA963001-2702
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC Auxiliary Circuit 250 V AC/DC
  • Contact Position Indication: ON / OFF / TRIP
  • Maximum Operating Altitude Permissible: 2000 m
  • Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb Main Circuit 18 in·lb
  • Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 1.5 mm Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm Flexible 1/2x 0.75 ... 1.5 mm Rigid 1/2x 1 ... 1.5 mm
  • Wire Stripping Length: Auxiliary Circuit 8 mm Main Circuit 10 mm
  • GL Certificate: 1SAA963001-0401
  • Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-8 AWG Stranded 1/2x 16-8 AWG
  • Ampere Rating UL/CSA: 16 A
  • Horsepower Rating UL/CSA: (220 ... 240 V AC) Three Phase 5 Hp (440 ... 480 V AC) Three Phase 10 Hp (550 ... 600 V AC) Three Phase 10 Hp
  • General Use Rating UL/CSA: (600 V AC) 16 A
  • Electrical Durability: 50000 cycle
  • EAN: 4013614404511
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010
  • Package Level 1 Width: 92 mm
  • Package Level 1 Length: 102 mm
  • Package Level 1 Height: 50 mm
  • Package Level 1 Gross Weight: 0.341 kg
  • Package Level 2 Units: 40 piece
  • Package Level 2 Width: 280 mm
  • Package Level 2 Length: 395 mm
  • Package Level 2 Height: 210 mm
  • Package Level 2 Gross Weight: 14.026 kg
  • Package Level 2 EAN: 4013614409165
  • Package Level 1 Units: 1 piece
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 20 kA (500 V AC) 20 kA (690 V AC) 3 kA
  • Rated Instantaneous Short-Circuit Current Setting (Ii): 240 A
  • Setting Range: 10 ... 16 A
  • Rated Operational Power AC-3 (Pe): (400 V) Three Phase 7.5 kW
  • Rated Operational Voltage: Main Circuit 690 V AC Main Circuit 250 V DC
  • Rated Operational Current (Ie): 16 A
  • Rated Operational Current AC-3 (Ie): 16 A
  • Rated Operational Current DC-5 (Ie): 16 A
  • Mounted Auxiliary Contacts: 1 NO, 1 NC
  • Conventional Free-air Thermal Current (Ith): Main Circuit 16 A
  • Pollution Degree: 3
  • Recommended Screw Driver: Pozidriv 2
  • Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA (250 V DC) 3 Poles in Series 10 kA (400 V AC) 100 kA (440 V AC) 20 kA (500 V AC) 20 kA (690 V AC) 3 kA
  • Ambient Air Temperature Compensation: Yes
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 ... 150 Hz
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 16-14 AWG Stranded 1/2x 16-14 AWG
  • Contact Rating UL/CSA: B300 R300
  • Data Sheet, Technical Information (Part 2): 1SAM300505F0011
  • Data Sheet, Technical Information (Part 3): 1SAM300507F0001 1SAM300507F0003 1SAM300508F0001 1SAM300508F0003
  • Instructions and Manuals: 2CDC131022M6802
  • ABS Certificate: 1SAA963001-0101
  • ATEX Certificate: 1SAA963000-3901
  • BV Certificate: 1SAA963001-0201
  • CB Certificate: 1SAA963002-2001
  • CCC Certificate: 1SAA963001-3802
  • cUL Certificate: UL_E137861 UL_E345003
  • cULus Certificate: cUL_E137861
  • Data Sheet, Technical Information: 2CDC131021D0201
  • Declaration of Conformity - CE: 1SAD938510-0125
  • DNV Certificate: 1SAA963001-0303
  • EAC Certificate: 1SAA963000-2701
  • LR Certificate: 1SAA963001-0502
  • RINA Certificate: 1SAA963000-0802
  • RMRS Certificate: 1SAA918000-0703
  • RoHS Information: 1SAA963002-4405
  • UL Certificate: UL_E137861 UL_E345003
  • ETIM 4: EC000074 - Motor protective circuit-breaker
  • ETIM 5: EC000074 - Motor protective circuit-breaker
  • ETIM 6: EC000074 - Motor protection circuit-breaker
  • UNSPSC: 39121521
  • Object Classification Code: F
Santa Clara Systems ist spezialisiert auf schwierig auffindbare Artikel. Wählen Sie aus unseren Lagerüberschüssen und sparen Sie 1SAM350005R1011 . Santa Clara Systems führt 36,537 Artikel von ABB.
  • Undervoltage Releases
  • Shunt Trips
  • 3-Phase Bus Bars
  • Power In-Feed Blocks Are Available As Accessory.
  • The Ms132-16-Hkf1-11 Manual Motor Starter Is A Compact 45 Mm Width Devices With A Rated Operational Current Of Ie = 16.0 A And A Pre-Assembled Front Mounted Auxiliary Contact Hkf1-11. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits
  • Overload And Phase Failures. The Manual Motor Starter Offers A Rated Service Short-Circuit Breaking Capacity Ics = 100 Ka At 400 Vac And The Trip Class 10. Further Features Are The Build-In Disconnect Function
  • Temperature Compensation
  • Trip-Free Mechanism And A Rotary Handle With A Clear Switch Position Indication. The Manual Motor Starter Is Suitable For Three- And Single-Phase Applications. The Handle Is Lockable To Protect Against Unauthorized Changes. Auxiliary Contacts
  • Signalling Contacts
