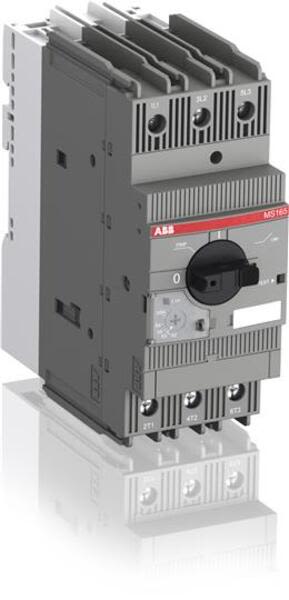

• ABB 1SAM451000R1015 MS165-42 Manual Motor Starter Product Image
  • Abb 1SAM451000R1015 Barcode

1SAM451000R1015

Produktübersicht:

  • Extended Product Type: MS165-42
  • Product ID: 1SAM451000R1015
  • EAN: 4013614486098
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010
Lassen Sie es uns finden!
           oder
rufen Sie an 1 (888) 450-0301
  • Beschreibung: MS165-42 Manual Motor Starter
  • Tightening Torque: Control Circuit 4 N·m Main Circuit 4 N·m
  • Wire Stripping Length: Main Circuit 16 mm
  • Recommended Screw Driver: Pozidriv 2
  • Mounting Position: Position 1 to 6
  • Actuator Type: Rotary Handle
  • Contact Position Indication: ON / OFF / TRIP
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-4-1 CSA 22.2 No. 14
  • Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 50 kA (250 V DC) 3 Poles in Series 100 kA (400 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 20 kA (690 V AC) 5 kA
  • Ambient Air Temperature Compensation: Yes
  • Maximum Operating Altitude Permissible: 2000 m
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 ... 150 Hz
  • RoHS Status: Following EU Directive 2011/65/EC
  • Ambient Air Temperature: Operation -25 ... +60 °C Operation Compensated -25 ... +60 °C Storage -50 ... +80 °C
  • Horsepower Rating UL/CSA: (200 V AC) Three Phase 10 Hp (208 V AC) Three Phase 10 Hp (220 ... 240 V AC) Three Phase 15 Hp (440 ... 480 V AC) Three Phase 30 Hp (550 ... 600 V AC) Three Phase 40 Hp
  • Ampere Rating UL/CSA: 42 A
  • General Use Rating UL/CSA: (600 V AC) 42 A
  • Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-0 AWG Stranded 1/2x 16-0 AWG
  • Tightening Torque UL/CSA: 35 in·lb Main Circuit 35 in·lb
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
  • Instructions and Manuals: 2CDC131081M6801
  • Instructions and Manuals (Part 2): 2CDC131087M6801
  • ABS Certificate: 1SAA963002-0101
  • ATEX Certificate: 1SAA918001-3901
  • CB Certificate: 1SAA918002-2001
  • CCC Certificate: 1SAA918004-3801
  • cUL Certificate: cUL_E345003
  • Declaration of Conformity - CE: 1SAD938502-0190
  • EAC Certificate: 1SAA963002-2701
  • LR Certificate: 1SAA918001-0501
  • RoHS Information: 1SAA918003-4401
  • UL Certificate: cUL_E137861 UL_E137861 cUL_E345003 UL_345003
  • E-nummer: 3110055
  • ETIM 5: EC000074 - Motor protective circuit-breaker
  • ETIM 6: EC000074 - Motor protection circuit-breaker
  • eClass: 7.0 27370401
  • UNSPSC: 39121521
  • Object Classification Code: F
  • Extended Product Type: MS165-42
  • Product ID: 1SAM451000R1015
  • EAN: 4013614486098
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010
  • EAN: 4013614486098
  • Package Level 1 Width: 78 mm
  • Package Level 1 Length: 155 mm
  • Package Level 1 Height: 155 mm
  • Package Level 1 Gross Weight: 1.1 kg
  • Package Level 2 Units: 12 piece
  • Package Level 2 Width: 330 mm
  • Package Level 2 Length: 400 mm
  • Package Level 2 Height: 320 mm
  • Package Level 2 Gross Weight: 13 kg
  • Package Level 2 EAN: 4013614503955
  • Package Level 1 Units: 1 piece
  • Product Net Height: 142.65 mm
  • Product Net Depth: 122.1 mm
  • Product Net Weight: 0.97 kg
  • Product Net Width: 55 mm
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 50 kA (250 V DC) 100 kA (400 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 20 kA (690 V AC) 5 kA
  • Rated Instantaneous Short-Circuit Current Setting (Ii): 630 A
  • Setting Range: 30 ... 42 A
  • Rated Operational Power AC-3 (Pe): (400 V) Three Phase 22 kW
  • Rated Operational Voltage: Main Circuit 690 V AC
  • Rated Operational Current (Ie): 42 A
  • Rated Operational Current AC-3 (Ie): 42 A
  • Rated Operational Current DC-5 (Ie): 42 A
  • Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 8 kV
  • Rated Insulation Voltage (Ui): 1000 V
  • Power Loss: 2.79 5.47 W
  • Number of Poles: 3
  • Conventional Free-air Thermal Current (Ith): Main Circuit 42 A
  • Degree of Protection: Housing IP20 Main Circuit Terminals IP10
  • Pollution Degree: 3
  • Electrical Durability: 25000 cycle
  • Mechanical Durability: 50000 cycle
  • Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 1 ... 35 mm² Flexible with Insulated Ferrule 1/2x 1 35 mm² Flexible 1/2x 1 ... 35 mm² Solid 1/2x 1 50 mm²
Santa Clara Systems ist spezialisiert auf schwierig auffindbare Artikel. Wählen Sie aus unseren Lagerüberschüssen und sparen Sie 1SAM451000R1015 . Santa Clara Systems führt 35,877 Artikel von ABB.
  • Ms165-42 Manual Motor Starter Trip Class 10 30 - 42 A
