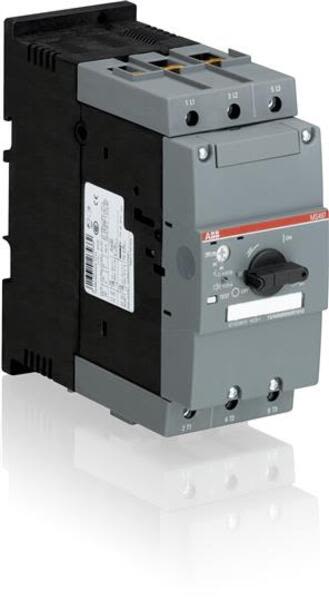

• ABB 1SAM580000R1010 MS497-100 Manual Motor Starter Product Image
  • Abb 1SAM580000R1010 Barcode

1SAM580000R1010

Produktübersicht:

  • Extended Product Type: MS497-100
  • Product ID: 1SAM580000R1010
  • EAN: 4013614265662
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
Lassen Sie es uns finden!
           oder
rufen Sie an 1 (888) 450-0301
  • Beschreibung: MS497-100 Manual Motor Starter
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 508 CSA 22.2 No. 14
  • Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA (400 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 5 kA (690 V AC) 3 kA
  • Ambient Air Temperature Compensation: Yes
  • Maximum Operating Altitude Permissible: 2000 m
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Ambient Air Temperature: Operation -20 ... +70 °C Operation Compensated -20 ... +60 °C Storage -50 ... +80 °C
  • Horsepower Rating UL/CSA: (200 V AC) Three Phase 30 Hp (208 V AC) Three Phase 30 Hp (220 ... 240 V AC) Three Phase 40 Hp (440 ... 480 V AC) Three Phase 75 Hp (550 ... 600 V AC) Three Phase 100 Hp
  • Ampere Rating UL/CSA: 99 A
  • General Use Rating UL/CSA: (600 V AC) 99 A
  • Connecting Capacity Main Circuit UL/CSA: Flexible 1x 10-2/0 AWG Flexible 1/2x 10-1/0 AWG Stranded 1x 10-2/0 AWG Stranded 1/2x 10-1/0 AWG
  • Tightening Torque UL/CSA: Main Circuit 35 ... 53 in·lb
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
  • Data Sheet, Technical Information (Part 2): 1SAM500503F0010
  • Data Sheet, Technical Information (Part 3): 9AKK105713A1104
  • Instructions and Manuals: 1SAM507001R1001
  • Instructions and Manuals (Part 2): 2CDC131017M5701
  • ATEX Certificate: 1SAA937000-3901
  • BV Certificate: 1SAA937000-0202
  • CCC Certificate: 1SAA937001-3803
  • cUL Certificate: cUL_E195536
  • Data Sheet, Technical Information: 1SBC100173C0201
  • Declaration of Conformity - CE: 1SAD938504-0050
  • DNV Certificate: 1SAA937000-0301
  • EAC Certificate: 1SAA937001-2703
  • GL Certificate: 1SAA937000-0404
  • GOST Certificate: 1SAA963001-2702
  • LR Certificate: 1SAA937000-0504
  • RMRS Certificate: 1SAA918000-0703
  • RoHS Information: 1SAA918002-4401
  • UL Certificate: UL_E167205 UL_E195536
  • ETIM 4: EC000074 - Motor protective circuit-breaker
  • ETIM 5: EC000074 - Motor protective circuit-breaker
  • ETIM 6: EC000074 - Motor protection circuit-breaker
  • eClass: 7.0 27370401
  • UNSPSC: 39121521
  • Object Classification Code: F
  • Extended Product Type: MS497-100
  • Product ID: 1SAM580000R1010
  • EAN: 4013614265662
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • EAN: 4013614265662
  • Package Level 1 Width: 76.5 mm
  • Package Level 1 Length: 190 mm
  • Package Level 1 Height: 171 mm
  • Package Level 1 Gross Weight: 2.277 kg
  • Package Level 1 Units: 1 piece
  • Product Net Height: 165 mm
  • Product Net Depth: 174 mm
  • Product Net Weight: 2.275 kg
  • Product Net Width: 70 mm
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 70 kA (500 V AC) 10 kA (690 V AC) 10 kA
  • Rated Instantaneous Short-Circuit Current Setting (Ii): 1235 A
  • Setting Range: 80 ... 100 A
  • Rated Operational Power AC-3 (Pe): (400 V) Three Phase 55 kW
  • Rated Operational Voltage: Main Circuit 690 V AC Main Circuit 450 V DC
  • Rated Operational Current (Ie): 100 A
  • Rated Operational Current AC-3 (Ie): 100 A
  • Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
  • Rated Insulation Voltage (Ui): 690 V
  • Power Loss: at Rated Operating Conditions per Pole 8.1 12.7 W
  • Number of Poles: 3
  • Conventional Free-air Thermal Current (Ith): Main Circuit 100 A
  • Degree of Protection: Housing IP20 Main Circuit Terminals IP00
  • Pollution Degree: 3
  • Electrical Durability: 25000 cycle
  • Mechanical Durability: 50000 cycle
  • Connecting Capacity Main Circuit: Flexible with Ferrule 1x 2.5 ... 50 mm² Flexible with Ferrule 2x 2.5 ... 35 mm² Solid 1/2x 2.5 ... 16 mm² Stranded 1x 10 ... 70 mm² Stranded 2x 10 ... 50 mm²
  • Tightening Torque: Main Circuit 4 ... 6 N·m
  • Wire Stripping Length: Main Circuit 17 mm
  • Recommended Screw Driver: Hexagon 4
  • Mounting Position: Position 1 to 6
  • Actuator Type: Rotary Handle
  • Contact Position Indication: ON / OFF / TRIP
Santa Clara Systems ist spezialisiert auf schwierig auffindbare Artikel. Wählen Sie aus unseren Lagerüberschüssen und sparen Sie 1SAM580000R1010 . Santa Clara Systems führt 35,866 Artikel von ABB.
  • Signalling Contacts
  • Undervoltage Releases And Shunt Trips Are Available As Accessory.
  • The Ms497-100 Manual Motor Starter Is A 70 Mm Width Devices With A Rated Operational Current Of Ie = 100.0 A. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits
  • Overload And Phase Failures. The Manual Motor Starter Offers A Rated Service Short-Circuit Breaking Capacity Ics = 50 Ka At 400 Vac And The Trip Class 10. Further Features Are The Build-In Disconnect Function
  • Temperature Compensation
  • Trip-Free Mechanism And A Rotary Handle With A Clear Switch Position Indication. The Manual Motor Starter Is Suitable For Three- And Single-Phase Applications. The Handle Is Lockable To Protect Against Unauthorized Changes. Auxiliary Contacts
