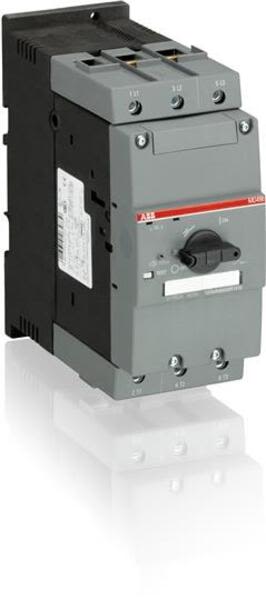

• ABB 1SAM590000R1008 MO496-75 Manual Motor Starter Magnetic Only Product Image
  • Abb 1SAM590000R1008 Barcode

1SAM590000R1008

Produktübersicht:

  • Product ID: 1SAM590000R1008
  • Extended Product Type: MO496-75
  • Product Net Weight: 2.278 kg
  • Product Net Width: 70 mm
  • Product Net Height: 165 mm
Lassen Sie es uns finden!

current response time:

By 5AM PT on Wednesday
  • Beschreibung: MO496-75 Manual Motor Starter Magnetic Only
  • Product ID: 1SAM590000R1008
  • Extended Product Type: MO496-75
  • Product Net Weight: 2.278 kg
  • Product Net Width: 70 mm
  • Product Net Height: 165 mm
  • Product Net Depth: 174 mm
  • Degree of Protection: Housing IP20 Main Circuit Terminals IP00
  • Ambient Air Temperature: Operation -20 ... +70 C Storage -50 ... +80 C
  • Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 508 CSA 22.2 No. 14
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
  • Rated Insulation Voltage (Ui): 690 V
  • Number of Poles: 3
  • Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
  • Power Loss: at Rated Operating Conditions per Pole 10 W
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • eClass: 7.0 27370401
  • Tightening Torque: Main Circuit 4 ... 6 N·m
  • Actuator Type: Rotary Handle
  • Mounting Position: Position 1 to 6
  • Mechanical Durability: 50000 cycle
  • Connecting Capacity Main Circuit: Flexible with Ferrule 1x 2.5 ... 50 mm Flexible with Ferrule 2x 2.5 ... 35 mm Solid 1/2x 2.5 ... 16 mm Stranded 1x 10 ... 70 mm Stranded 2x 10 ... 50 mm
  • GOST Certificate: 1SAA963001-2702
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
  • Contact Position Indication: ON / OFF / TRIP
  • Maximum Operating Altitude Permissible: 2000 m
  • Tightening Torque UL/CSA: Main Circuit 35 ... 53 in·lb
  • Wire Stripping Length: Main Circuit 17 mm
  • Connecting Capacity Main Circuit UL/CSA: Flexible 1x 10-2/0 AWG Flexible 1/2x 10-1/0 AWG Stranded 1x 10-2/0 AWG Stranded 1/2x 10-1/0 AWG
  • Ampere Rating UL/CSA: 75 A
  • Horsepower Rating UL/CSA: (200 V AC) Three Phase 25 Hp (208 V AC) Three Phase 25 Hp (220 ... 240 V AC) Three Phase 30 Hp (440 ... 480 V AC) Three Phase 60 Hp (550 ... 600 V AC) Three Phase 75 Hp
  • General Use Rating UL/CSA: (600 V AC) 75 A
  • Electrical Durability: 25000 cycle
  • EAN: 4013614265815
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Package Level 1 Width: 76.5 mm
  • Package Level 1 Length: 190 mm
  • Package Level 1 Height: 171 mm
  • Package Level 1 Gross Weight: 2.249 kg
  • Package Level 1 Units: 1 piece
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 70 kA (500 V AC) 10 kA (690 V AC) 10 kA
  • Rated Instantaneous Short-Circuit Current Setting (Ii): 975 A
  • Setting Range: None
  • Rated Operational Voltage: Main Circuit 690 V AC Main Circuit 450 V DC
  • Rated Operational Current (Ie): 75 A
  • Rated Operational Current AC-3 (Ie): 75 A
  • Conventional Free-air Thermal Current (Ith): Main Circuit 75 A
  • Pollution Degree: 3
  • Recommended Screw Driver: Hexagon 4
  • Remarks: For overload protection of the motors, an appropriate thermal or electronic overload relays must be used
  • Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA (400 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 5 kA (690 V AC) 3 kA
  • Ambient Air Temperature Compensation: No
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Instructions and Manuals: 1SAM507001R1001
  • cUL Certificate: 1SAA937000-1701
  • Data Sheet, Technical Information: 1SBC100173C0201
  • Declaration of Conformity - CE: 1SAD938504-0051
  • DNV Certificate: 1SAA937000-0301
  • EAC Certificate: 1SAA937001-2703
  • RoHS Information: 1SAA918002-4401
  • UL Certificate: UL_E167205
  • ETIM 4: EC000074 - Motor protective circuit-breaker
  • ETIM 5: EC000074 - Motor protective circuit-breaker
  • ETIM 6: EC000074 - Motor protection circuit-breaker
  • UNSPSC: 39121521
  • Object Classification Code: F
Santa Clara Systems ist spezialisiert auf schwierig auffindbare Artikel. Wählen Sie aus unseren Lagerüberschüssen und sparen Sie 1SAM590000R1008 . Santa Clara Systems führt 36,545 Artikel von ABB.
  • Undervoltage Releases And Shunt Trips Are Available As Accessory.
  • The Mo496-75 Manual Motor Starter Magnetic Only Is A 55 Mm Width Device With A Rated Operational Current Of Ie = 75.0 A. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits. The Manual Motor Starter Magnetic Only Offers A Rated Service Short-Circuit Breaking Capacity Ics = 50 Ka At 400 Vac. Further Features Are The Build-In Disconnect Function
  • Trip-Free Mechanism And A Rotary Handle With A Clear Switch Position Indication. The Manual Motor Starter Magnetic Only Is Suitable For Three- And Single-Phase Applications. The Handle Is Lockable To Protect Against Unauthorized Changes. Auxiliary Contacts
  • Signalling Contacts
