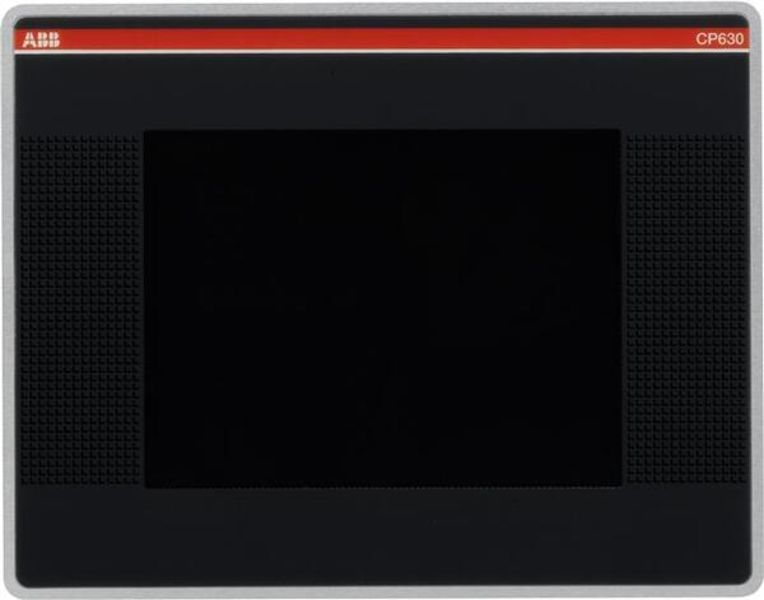

• ABB 1SAP530100R0001 CP630:CP600, control panel, TFT grafic display, touchscreen, 5.7", 320 x 240 pixel, PB610 runtime license Product Image

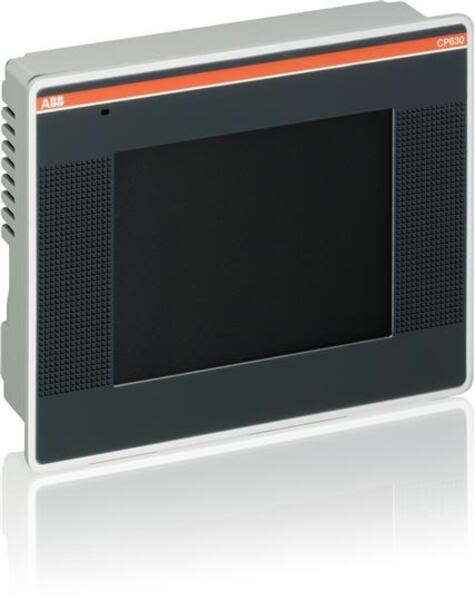

  • ABB 1SAP530100R0001 CP630:CP600, control panel, TFT grafic display, touchscreen, 5.7", 320 x 240 pixel, PB610 runtime license Product Image
  • Abb 1SAP530100R0001 Barcode

1SAP530100R0001

Produktübersicht:

  • Product ID: 1SAP530100R0001
  • Extended Product Type: CP630
  • Product Net Weight: 1.15 kg
  • Product Net Width: 187 mm
  • Product Net Height: 51 mm
Lassen Sie es uns finden!

current response time:

13 Minutes 34 Seconds
  • Beschreibung: CP630:CP600, control panel, TFT grafic display, touchscreen, 5.7", 320 x 240 pixel, PB610 runtime license
  • Product ID: 1SAP530100R0001
  • Extended Product Type: CP630
  • Product Net Weight: 1.15 kg
  • Product Net Width: 187 mm
  • Product Net Height: 51 mm
  • Product Main Type: CP630
  • Product Name: Control Panels
  • Degree of Protection: acc. to IEC 60529 Front IP66 acc. to IEC 60529 Housing IP20
  • Ambient Air Temperature: Operation 0 ... +50 C Storage -20 ... +70 C
  • Product Net Length: 147 mm
  • Housing Material: Front side: Zamak Reverse side: Aluminium
  • Country of Origin: Italy (IT)
  • Mounting Type: Front face
  • Order Multiple: 1 piece
  • Lead Time: 1 day(s)
  • Power Supply: 24 (18 ... 30) V DC
  • ABB Type Designation: CP630
  • EAN: 4016779864886
  • Criticality: No
  • Made To Order: No
  • Product Sales Status: Active
  • Quote Only: No
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85381000
  • Communication Interface: 2x Ethernet 100 MBit 1x RS232/422/485 2x USB 2.0 Host 1x SD card slot 2x Expansion slot
  • Language: English
  • Memory Size User Data: 128 MB
  • Memory Size User Program: 256 MB
  • Memory Type User Data: Flash Disk
  • Memory Type User Program: DDR RAM
  • Power Consumption: 16.8 W
  • Programming Software: PB610 Panel Builder 600
  • Real-time Clock: Hardware clock, battery back-up
  • Screen Color: 64k colors
  • Screen Resolution: 320 x 240 pixel
  • Screen Size: 4:3 screen 5.7 in
  • Screen Type: TFT color, LED backlight, touch screen
  • Security: Password protection with 8 user levels
  • Serial Port 1 Type: RS232/RS422/RS485
  • Service Life: 40000 hour(s)
  • USB Port 1 Type: Host, version 2.0
  • USB Port 2 Type: Host, version 2.0
  • CSA Certificate: 1SAA960001-1701
  • cUL Certificate: 1SAA960000-1709
  • Declaration of Conformity - CE: 1SAD938502-0169
  • Declaration of Conformity - C-Tick: 1SAA960002-3301
  • Declaration of Conformity - KCC: 1SAA960002-4801
  • DNV Certificate: 1SAA960004-0303
  • Environmental Product Declaration - EPD: 1SAA960002-4501
  • RoHS Information: 1SAA960013-4401
  • UL Certificate: 1SAA960006-1601
Santa Clara Systems ist spezialisiert auf schwierig auffindbare Artikel. Wählen Sie aus unseren Lagerüberschüssen und sparen Sie 1SAP530100R0001 . Santa Clara Systems führt 36,537 Artikel von ABB.
  • Pb610 Runtime License
  • Cp630 Control Panel 5.7&Quot; Tft Touch Screen
  • 64 K Colors
  • 320 X 240 Pixel
