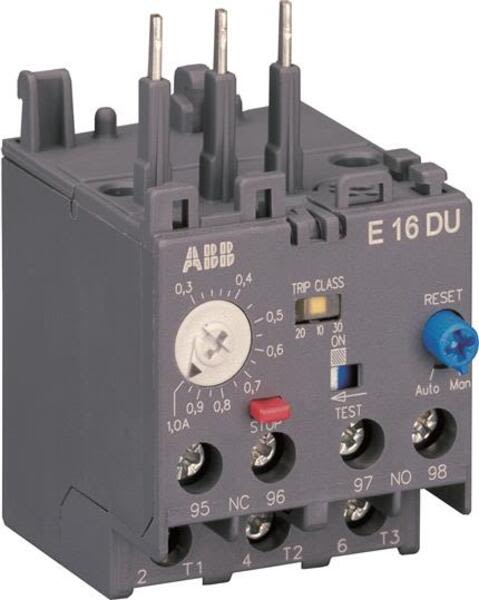

• ABB 1SAX111001R1101 E16DU-0.32 Electronic Overload Relay Product Image
  • Abb 1SAX111001R1101 Barcode

1SAX111001R1101

Produktübersicht:

  • Product ID: 1SAX111001R1101
  • Extended Product Type: E16DU-0.32
  • Product Net Weight: 0.15 kg
  • Product Net Width: 44.4 mm
  • Product Net Height: 74.6 mm
Lassen Sie es uns finden!

current response time:

By 5AM PT on Thursday
  • Beschreibung: E16DU-0.32 Electronic Overload Relay
  • Product ID: 1SAX111001R1101
  • Extended Product Type: E16DU-0.32
  • Product Net Weight: 0.15 kg
  • Product Net Width: 44.4 mm
  • Product Net Height: 74.6 mm
  • Product Net Depth: 57 mm
  • Degree of Protection: IP20
  • Ambient Air Temperature: Operation -25 ... +70 C Operation Compensated -25 ... +70 C Storage -50 ... +85 C
  • Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
  • Rated Impulse Withstand Voltage (Uimp): Auxiliary Circuit 6 kV Main Circuit 6 kV
  • Rated Insulation Voltage (Ui): 690 V
  • Number of Poles: 3
  • Rated Frequency (f): Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 50 Hz Main Circuit 60 Hz
  • Suitable For: B6 B7 BC6 BC7 A09 A12 A16 AL09 AL12 AL16 VB6 VB7 VBC6 VBC7
  • eClass: 7.0 27371502
  • Tightening Torque: Auxiliary Circuit 0.8 ... 1.2 N·m Main Circuit 0.8 ... 1.5 N·m
  • Mounting Position: Position 1 to 6
  • Number of Auxiliary Contacts NO: 1
  • Number of Auxiliary Contacts NC: 1
  • Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm Flexible 1/2x 0.75 ... 2.5 mm Rigid 1/2x 1 ... 4 mm
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
  • Maximum Operating Altitude Permissible: 2000 m
  • Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb Main Circuit 7 in·lb
  • Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm Flexible 1/2x 0.75 ... 2.5 mm Rigid 1/2x 1 ... 4 mm
  • Wire Stripping Length: Auxiliary Circuit 9 mm Main Circuit 9 mm
  • Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-10 AWG Stranded 1/2x 16-10 AWG
  • Ampere Rating UL/CSA: 0.32 A
  • Number of Protected Poles: 3
  • EAN: 4013614395222
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
  • Package Level 1 Width: 65 mm
  • Package Level 1 Height: 46 mm
  • Package Level 1 Length: 76.5 mm
  • Package Level 1 Gross Weight: 0.17 kg
  • Package Level 2 Units: 100 piece
  • Package Level 2 Width: 340 mm
  • Package Level 2 Height: 314 mm
  • Package Level 2 Length: 245 mm
  • Package Level 2 Gross Weight: 17.563 kg
  • Package Level 2 EAN: 4013614483219
  • Package Level 1 Units: 1 piece
  • Rated Operational Voltage: Auxiliary Circuit 600 V AC/DC Main Circuit 690 V AC
  • Rated Operational Current (Ie): 0.32 A
  • Rated Operational Current AC-3 (Ie): 0.32 A
  • Conventional Free-air Thermal Current (Ith): Auxiliary Circuit NC 6 A Auxiliary Circuit NO 6 A
  • Rated Operational Current AC-15 (Ie): (240 V) NC 3 A (240 V) NO 3 A (400 V) NC 1.1 A (400 V) NO 1.1 A (500 V) NC 0.72 A (500 V) NO 0.72 A
  • Rated Operational Current DC-13 (Ie): (125 V) NC 0.55 A (125 V) NO 0.5 A (24 V) NC 1.5 A (24 V) NO 1.5 A (250 V) NC 0.27 A (250 V) NO 0.27 A (60 V) NC 0.55 A (60 V) NO 0.55 A
  • Pollution Degree: 3
  • Recommended Screw Driver: Auxiliary Circuit Pozidriv 2 Main Circuit Pozidriv 2
  • Setting Range: 0.1 ... 0.32 A
  • Ambient Air Temperature Compensation: Yes
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 15g
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 ... 150 Hz
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Contact Rating UL/CSA: B600 Q300
  • Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 16-10 AWG Stranded 1/2x 16-10 AWG
  • Data Sheet, Technical Information (Part 2): 1SAX100502F0002 1SAX100508F0001
  • Instructions and Manuals: 2CDC107019M5501
  • CB Certificate: 1SAA964002-2002
  • CCC Certificate: 1SAA942001-3801
  • cUL Certificate: cUL_E48139
  • Data Sheet, Technical Information: 1SBC100173C0201
  • Declaration of Conformity - CE: 1SAD938509-0053
  • EAC Certificate: 1SAA941003-2701
  • RMRS Certificate: 1SAA964000-0702
  • RoHS Information: 1SAA964002-4401
  • UL Certificate: UL_E48139
  • E-nummer: 3228760
  • ETIM 4: EC001080 - Electronic overload relay
  • ETIM 5: EC001080 - Electronic overload relay
  • ETIM 6: EC001080 - Electronic overload relay
  • UNSPSC: 39121521
  • Object Classification Code: F
Santa Clara Systems ist spezialisiert auf schwierig auffindbare Artikel. Wählen Sie aus unseren Lagerüberschüssen und sparen Sie 1SAX111001R1101 . Santa Clara Systems führt 36,545 Artikel von ABB.
  • 30E). Further Features Are The Temperature Compensation
  • Trip Contact (Nc)
  • Signal Contact (No)
  • Automatic- Or Manual Reset Selectable
  • Trip-Free Mechanism
  • Stop- And Test Function And A Trip Indication. The Overload Relays Are Connected Directly To The Contactors. Single Mounting Kits Are Available As Accessory.
  • The E16Du-0.32 Is An Self-Supplied Electronic Overload Relay
  • Which Means No Extra External Supply Is Needed. It Offers Reliable And Fast Protection For Motors In The Event Of Overload Or Phase Failure. Easy To Use Like A Thermal Overload Relay And Compatible With Standard Motor Applications
  • The Electronic Overload Relay Is Convincing
  • Above All
  • Due To Its Wide Setting Range
  • High Accuracy
  • High Operational Temperature Range And The Possibility To Select A Trip Class (10E
  • 20E
