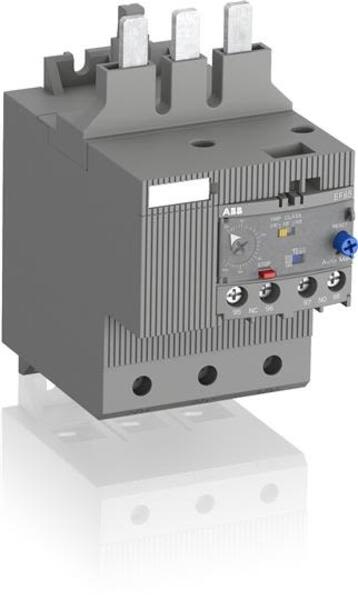

• ABB 1SAX331001R1101 Electronic Overload Relay | EF65-70 Product Image
  • Abb 1SAX331001R1101 Barcode

1SAX331001R1101

Produktübersicht:

  • Extended Product Type: EF65-70
  • Product ID: 1SAX331001R1101
  • EAN: 4013614442254
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
Lassen Sie es uns finden!
           oder
rufen Sie an 1 (888) 450-0301
  • Beschreibung: Electronic Overload Relay | EF65-70
  • Suitable For: AF40 AF52 AF65
  • Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
  • Setting Range: 25 ... 70 A
  • Ambient Air Temperature Compensation: Yes
  • Maximum Operating Altitude Permissible: 2000 m
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 ... 150 Hz
  • RoHS Status: Following EU Directive 2011/65/EC
  • Ambient Air Temperature: Operation -25 ... +75 °C Operation Compensated -25 ... +75 °C Storage -50 ... +85 °C
  • Ampere Rating UL/CSA: 70 A
  • Contact Rating UL/CSA: (NC:) B600 (NC:) Q600 (NO:) B600 (NO:) Q600
  • Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 10-2 AWG Stranded 1/2x 10-2 AWG
  • Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 18-10 AWG Stranded 1/2x 18-10 AWG
  • Tightening Torque UL/CSA: Auxiliary Circuit 7 ... 1 in·lb Main Circuit 55 in·lb
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
  • Data Sheet, Technical Information (Part 2): 1SAX100509F0001 1SAX100510F0001
  • Instructions and Manuals: 2CDC107026M6801
  • Instructions and Manuals (Part 2): 2CDC107043M6801
  • ABS Certificate: 1SAA941002-0101
  • ATEX Certificate: 1SAA941004-3901
  • BV Certificate: 1SAA941002-0201
  • CB Certificate: 1SAA942012-2002
  • CCC Certificate: 1SAA942006-3802
  • cUL Certificate: cUL_E48139
  • Data Sheet, Technical Information: 2CDC107041D0201
  • Declaration of Conformity - CE: 1SAD938512-0180 1SAD938509-0180
  • DNV Certificate: 1SAA941003-0301
  • EAC Certificate: 1SAA941003-2701
  • GOST Certificate: 1SAA941001-2701
  • LR Certificate: 1SAA941002-0501
  • RINA Certificate: RINA_ELE376813CS
  • RMRS Certificate: 1SAA941001-0701
  • RoHS Information: 1SAA942001-4406
  • UL Certificate: UL_E48139
  • E-nummer: 3210245
  • ETIM 4: EC001080 - Electronic overload relay
  • ETIM 5: EC001080 - Electronic overload relay
  • ETIM 6: EC001080 - Electronic overload relay
  • eClass: 7.0 27371502
  • UNSPSC: 39121521
  • Object Classification Code: F
  • Extended Product Type: EF65-70
  • Product ID: 1SAX331001R1101
  • EAN: 4013614442254
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
  • EAN: 4013614442254
  • Product Net Height: 131.2 mm
  • Product Net Depth: 105.2 mm
  • Product Net Weight: 0.821 kg
  • Product Net Width: 70 mm
  • Package Level 1 Width: 139 mm
  • Package Level 1 Height: 107 mm
  • Package Level 1 Length: 75.5 mm
  • Package Level 1 Gross Weight: 0.876 kg
  • Package Level 2 Units: 20 piece
  • Package Level 2 Width: 393 mm
  • Package Level 2 Height: 227 mm
  • Package Level 2 Length: 290 mm
  • Package Level 2 Gross Weight: 18.803 kg
  • Package Level 2 EAN: 4013614483370
  • Package Level 1 Units: 1 piece
  • Rated Operational Voltage: Auxiliary Circuit 600 V AC/DC Main Circuit 1000 V AC
  • Rated Operational Current (Ie): 70 A
  • Rated Operational Current AC-3 (Ie): 70 A
  • Rated Frequency (f): Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 50 Hz Main Circuit 60 Hz
  • Rated Impulse Withstand Voltage (Uimp): Auxiliary Circuit 6 kV Main Circuit 8 kV
  • Rated Insulation Voltage (Ui): 1000 V
  • Number of Poles: 3
  • Number of Auxiliary Contacts NC: 1
  • Number of Auxiliary Contacts NO: 1
  • Number of Protected Poles: 3
  • Conventional Free-air Thermal Current (Ith): Auxiliary Circuit NC 6 A Auxiliary Circuit NO 6 A
  • Rated Operational Current AC-15 (Ie): (240 V) NC 3 A (240 V) NO 3 A (400 V) NC 1.1 A (400 V) NO 1.1 A (500 V) NC 0.75 A (500 V) NO 0.75 A
  • Rated Operational Current DC-13 (Ie): (125 V) NC 0.55 A (125 V) NO 0.5 A (24 V) NC 1.5 A (24 V) NO 1.5 A (250 V) NC 0.27 A (250 V) NO 0.27 A (60 V) NC 0.55 A (60 V) NO 0.55 A
  • Degree of Protection: Housing IP20 Main Circuit Terminals IP10
  • Pollution Degree: 3
  • Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 1 ... 4 mm²
  • Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 4 ... 35 mm² Flexible with Insulated Ferrule 1/2x 4 ... 35 mm² Flexible 1/2x 4 ... 35 mm² Rigid 1/2x 4 ... 35 mm²
  • Tightening Torque: Auxiliary Circuit 0.8 ... 1.2 N·m Main Circuit 4 N·m
  • Wire Stripping Length: Auxiliary Circuit 9 mm Main Circuit 20 mm
  • Recommended Screw Driver: Auxiliary Circuit Pozidriv 2 Main Circuit Pozidriv 2
  • Mounting Position: Position 1 to 6
  • Power Loss: at Rated Operating Conditions per Pole 0.056 ... 0.441 W
