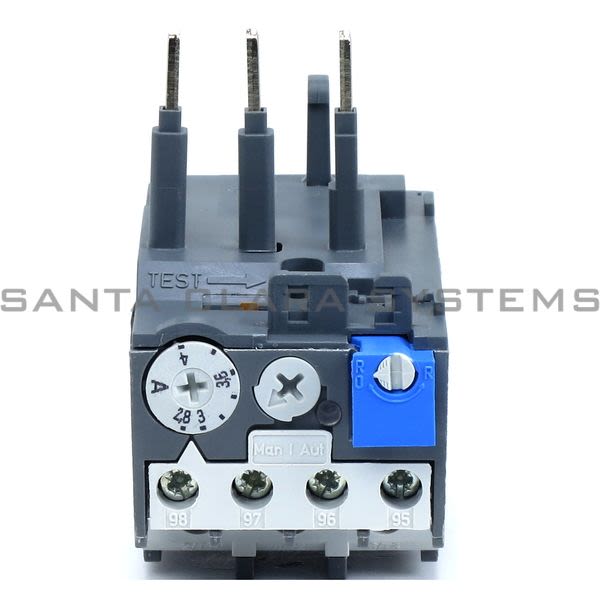

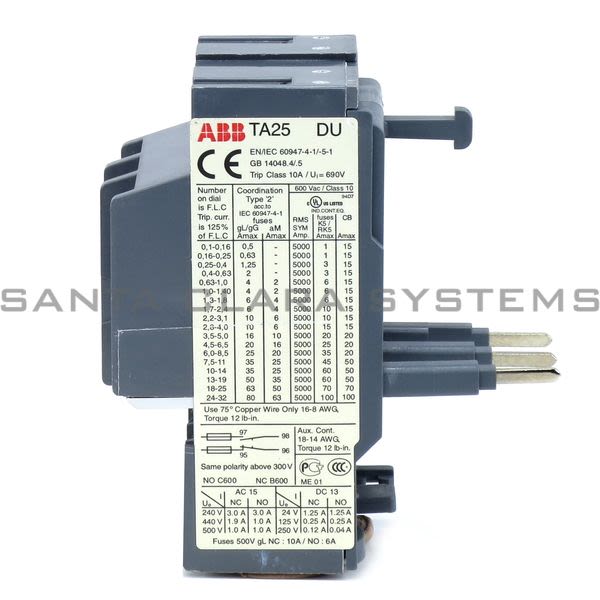

- Description: Thermal Overload Relay | 1SAZ211201R1033
- Product ID: 1SAZ211201R1033
- Extended Product Type: 1SAZ211201R1033
- Product Net Weight: 0.15 kg
- Product Net Width: 44 mm
- Product Net Height: 80 mm
- Product Net Depth: 94 mm
- Degree of Protection: Housing IP20 Main Circuit Terminals IP10
- Ambient Air Temperature: Operation -25 ... +55 °C Operation Compensated -25 ... +55 °C Storage -40 ... +70 °C
- Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): Auxiliary Circuit 6 kV Main Circuit 6 kV
- Rated Insulation Voltage (U<sub>i</sub>): 690 V
- Number of Poles: 3
- Rated Frequency (f): Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC
- Power Loss: at Rated Operating Conditions per Pole 1.1 ... 2.2 W
- Suitable For: A9 A12 A16 A26 A30 A40 AL9 AL12 AL16 AL26 AL30 AL40
- eClass: 7.0 27371501
- Tightening Torque: Auxiliary Circuit 1 ... 1.3 N·m Main Circuit 1.5 ... 1.9 N·m
- Mounting Position: Position 1 to 4
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Connecting Capacity Main Circuit: Flexible with Ferrule 1x 0.75 ... 4 mm² Flexible with Ferrule 2x 0.75 ... 4 mm² Flexible 1x 0.75 ... 4 mm² Flexible 2x 0.75 ... 4 mm² Rigid 1x 0.75 ... 4 mm² Rigid 2x 0.75 ... 4 mm²
- GOST Certificate: 1SAA941000-2704
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
- Maximum Operating Altitude Permissible: 2000 m
- Tightening Torque UL/CSA: Auxiliary Circuit 12 in·lb Main Circuit 12 in·lb
- Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 0.75 ... 4 mm²
- Wire Stripping Length: Auxiliary Circuit 9 mm Main Circuit 12 mm
- GL Certificate: 1SAA941000-0403
- Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-8 AWG Stranded 1/2x 16-8 AWG
- Ampere Rating UL/CSA: 4 A
- Number of Protected Poles: 3
- Poles: 3
- Operational Current: 4 A
- Setting Range: 2.8 - 4 A
- Main Circuit Voltage: 690 V AC
- Auxiliary Circuit Voltage: 440 VDC | 500 V AC
- EAN: 4013614216565
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 98 mm
- Package Level 1 Height: 82 mm
- Package Level 1 Length: 47 mm
- You searched for alternate part: 1SAZ211201R1033
- Package Level 1 Gross Weight: 0.17 kg
- Package Level 2 Units: 48 piece
- Package Level 2 Width: 280 mm
- Package Level 2 Height: 210 mm
- Package Level 2 Length: 395 mm
- Package Level 2 Gross Weight: 8.546 kg
- Package Level 2 EAN: 4013614442056
- Package Level 1 Units: 1 piece
- Rated Operational Voltage: Auxiliary Circuit 440 V DC Auxiliary Circuit 500 V AC Main Circuit 690 V AC
- Rated Operational Current (I<sub>e</sub>): 4 A
- Rated Operational Current AC-3 (I<sub>e</sub>): 4 A
- Conventional Free-air Thermal Current (I<sub>th</sub>): Auxiliary Circuit NC 10 A Auxiliary Circuit NO 6 A
- Rated Operational Current AC-15 (I<sub>e</sub>): (120 V) NC 3 A (120 V) NO 1.5 A (240 V) NC 3 A (240 V) NO 1.5 A (400 V) NC 1.9 A (400 V) NO 1 A (440 V) NC 1 A (440 V) NO 1 A (500 V) NC 1 A (500 V) NO 1 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (125 V) NC 0.25 A (125 V) NO 0.25 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.12 A (250 V) NO 0.04 A (60 V) NC 0.25 A (60 V) NO 0.25 A
- Pollution Degree: 3
- Recommended Screw Driver: Main Circuit Pozidriv 2
- Setting Range: 2.8 ... 4 A
- Ambient Air Temperature Compensation: Yes
- Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 12g
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2008 Q1
- Contact Rating UL/CSA: (NC:) B600 (NO:) C300
- Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 18-14 AWG Stranded 1/2x 18-14 AWG
- Data Sheet, Technical Information (Part 2): 1SAZ200501F0010
- Instructions and Manuals: 2CDC106031M6801
- ABS Certificate: 1SAA941000-0102
- BV Certificate: 1SAA941000-0201
- CB Certificate: 1SAA941005-2001
- CCC Certificate: 1SAA941002-3806
- cUL Certificate: cUL_E48139
- Data Sheet, Technical Information: 1SBC100173C0201
- Declaration of Conformity - CE: 1SAD938513-0043
- DNV Certificate: 1SAA941000-0303
- EAC Certificate: 1SAA941002-2701
- LR Certificate: 1SAA941000-0504
- RMRS Certificate: 1SAA941000-0703
- RoHS Information: 1SAA941002-4403
- UL Certificate: UL_E48139
- E-nummer: 3228560
- ETIM 4: EC000106 - Thermal overload relay
- ETIM 5: EC000106 - Thermal overload relay
- ETIM 6: EC000106 - Thermal overload relay
- UNSPSC: 39121521
- Object Classification Code: F
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TA25DU-4.0 . Santa Clara Systems carries 37,014 items from ABB.
- Trip-Free Mechanism
- Stop- And Test Function And A Trip Indication. The Overload Relays Are Connected Directly To The Block Contactors. Single Mounting Kits Are Available As Accessory.
- The Ta25du-4.0 Thermal Overload Relay Is An Economic Electromechanical Protection Device For The Main Circuit. It Offers Reliable And Fast Protection For Motors In The Event Of Overload Or Phase Failure. The Device Has Trip Class 10a. Further Features Are The Temperature Compensation
- Trip Contact (Nc)
- Signal Contact (No)
- Automatic- Or Manual Reset Selectable
