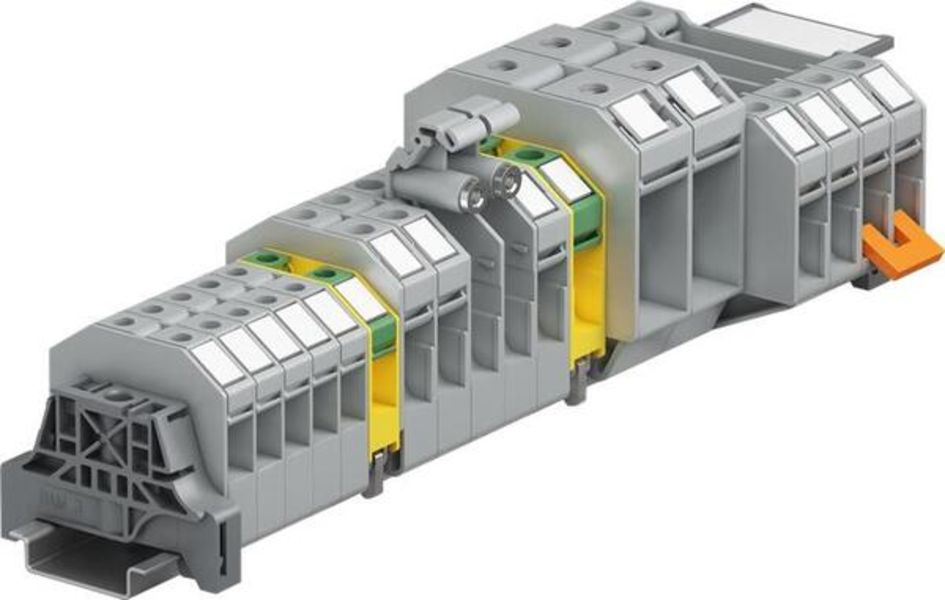

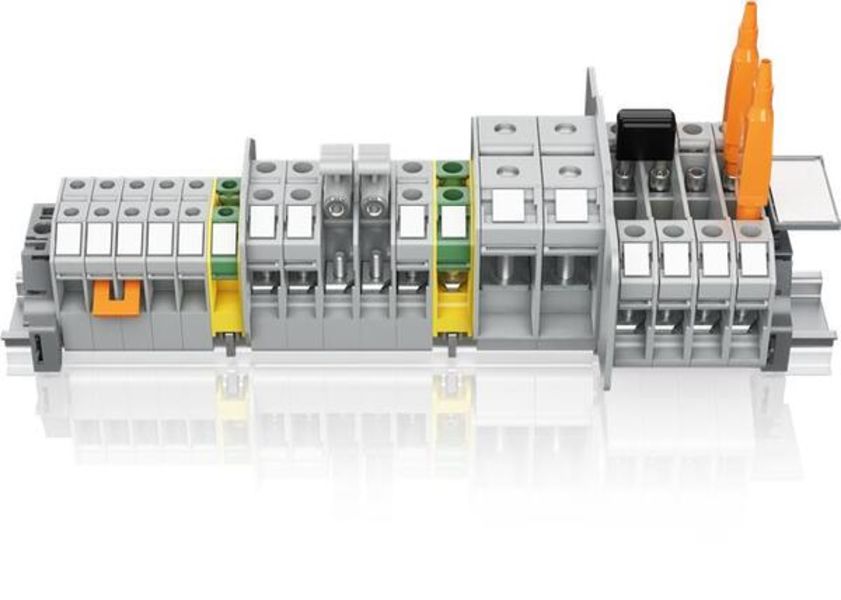

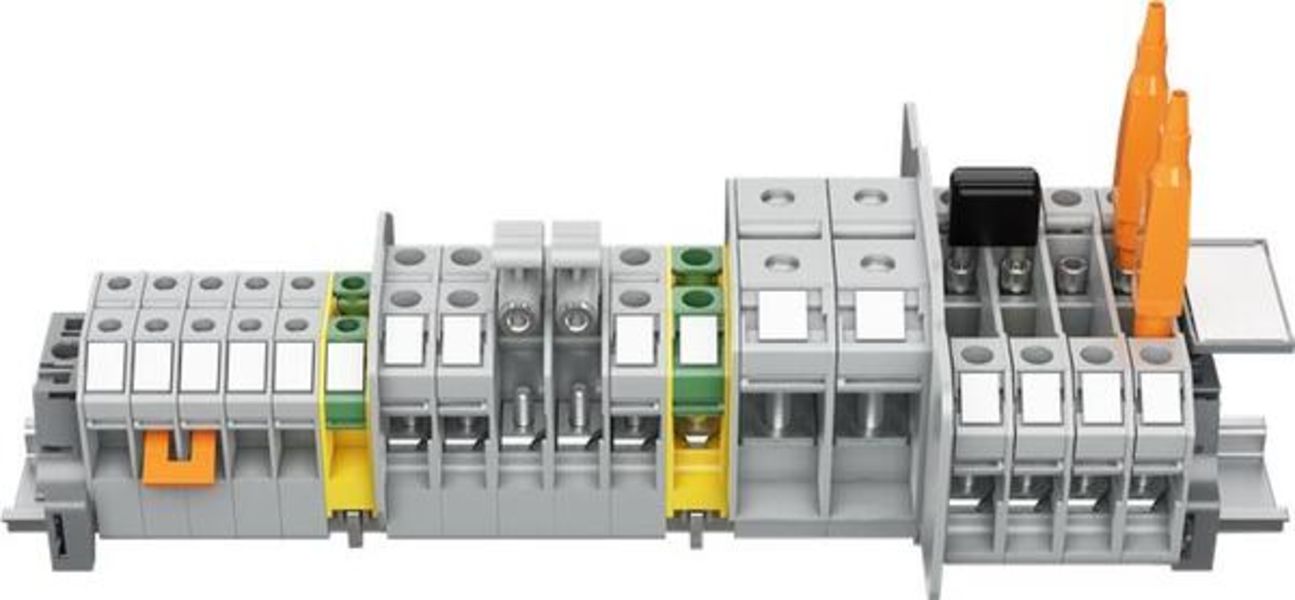

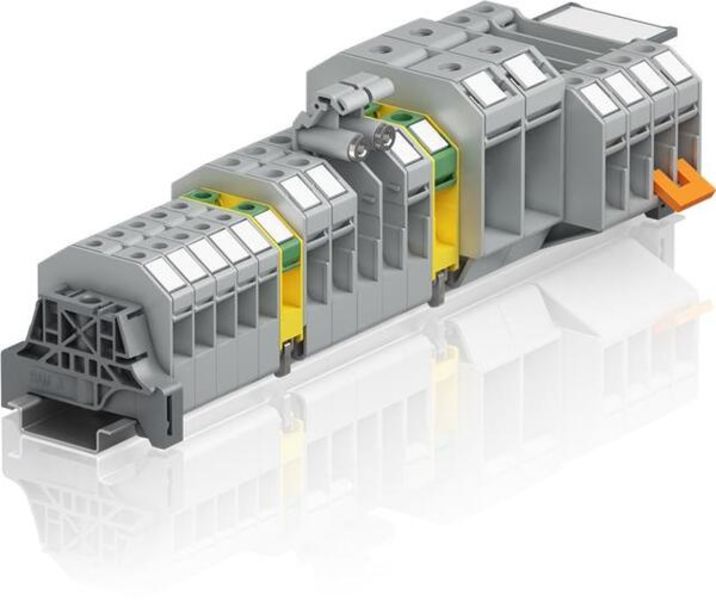

ABB 165ETTM5TM5-1-1SNA296116R1500 165ETTM5TM5-1 Wire lug terminal blocks Disconnect Beige Product Image

165ETTM5TM5-1-1SNA296116R1500

ABB - 165ETTM5TM5-1 Wire lug terminal blocks Disconnect Beige

Current response time:

By 5AM PT on Monday

Emergency?

Description: 165ETTM5TM5-1 Wire lug terminal blocks Disconnect Beige
Product ID: 1SNA296116R1500
Extended Product Type: 1SNA296116R1500
Product Net Weight: 48 g
Product Net Width: 16 mm
Product Net Height: 74 mm
Product Net Depth: 41.5 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Ambient Air Temperature: Operation -55 ... +110 °C Storage -55 ... +110 °C
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Current (In): Main Circuit 76 A
Function: Disconnect
Color: Beige
Mounting on DIN Rail: G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Tightening Torque: Cable Lug 4 N·m
Connecting Capacity Main Circuit: Stud / Flexible 1x 16 mm² Stud / Rigid 1x 16 mm²
Rated Voltage (Ur): 800 V
Spacing: 16 mm
Insulation Material: Polyamide
Connection Type: Stud
Rated Cross-Section: 16 mm²
Number of Levels: 1
EAN: 3472592961163
Minimum Order Quantity: 25 piece

Customs Tariff Number: 85369010
Rated Short-time Withstand Current (Icw): for 1 s 8000 A
Flammability According to UL94: V0
RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q2
Instructions and Manuals: 1SNC160001C0205_CHC5
Data Sheet, Technical Information: 1SNC160001C0205_CHC5
Declaration of Conformity - CE: 1SND225002U1000
RoHS Information: 1SND230021F0201
ETIM 4: EC000902 - (Knife) disconnect terminal block
ETIM 5: EC000902 - (Knife) disconnect terminal block
ETIM 6: EC000902 - (Knife) disconnect terminal block
Object Classification Code: X
Package Level 1 Width: 172 mm
Package Level 1 Length: 155 mm
Package Level 1 Height: 71 mm
Package Level 1 Gross Weight: 1.2 kg
Package Level 1 EAN: 3472592961163
Package Level 2 Units: 250 piece
Package Level 2 Width: 300 mm
Package Level 2 Length: 500 mm
Package Level 2 Height: 300 mm
Package Level 3 Units: 6000 piece
Product Packing Type: Box
Package Level 1 Units: 25 piece
