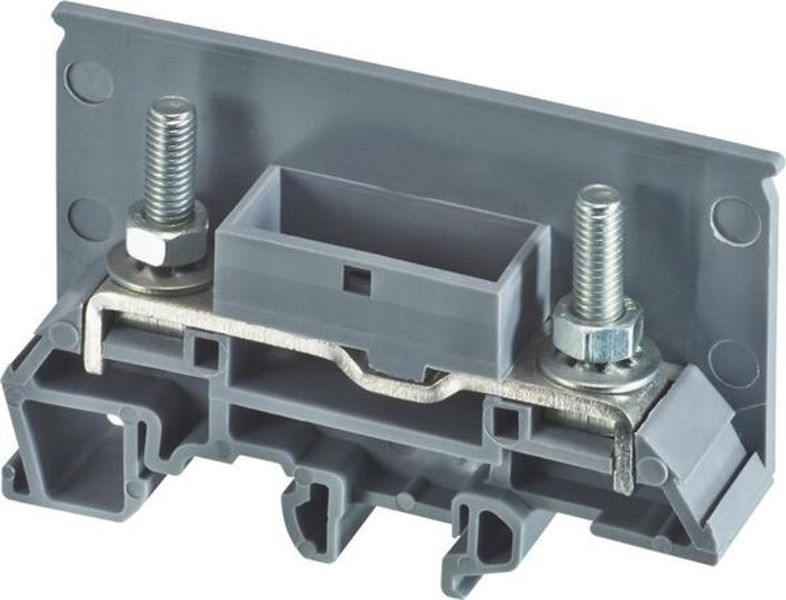

• ABB 165LTTM5TM5 165LTTM5TM5 Ring lug terminal blocks Feed-through Beige Product Image
  • Abb 165LTTM5TM5 Barcode

165LTTM5TM5

Product Summary:

  • Product ID: 1SNA296110R2300
  • Extended Product Type: 1SNA296110R2300
  • Product Net Weight: 40 g
  • Product Net Width: 16 mm
  • Product Net Height: 74 mm
Let Us Find It

Current response time:

By 5AM PT on Wednesday
  • Description: 165LTTM5TM5 Ring lug terminal blocks Feed-through Beige
  • Product ID: 1SNA296110R2300
  • Extended Product Type: 1SNA296110R2300
  • Product Net Weight: 40 g
  • Product Net Width: 16 mm
  • Product Net Height: 74 mm
  • Product Net Depth: 41.5 mm
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
  • Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Current (In): Main Circuit 76 A
  • Function: Feed-through
  • Color: Beige
  • Mounting on DIN Rail: G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Tightening Torque: Cable Lug 4 N·m
  • Connecting Capacity Main Circuit: Stud / Flexible 1x 16 mm Stud / Rigid 1x 16 mm
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V
  • Rated Voltage (Ur): 800 V
  • Spacing: 16 mm
  • Insulation Material: Polyamide
  • Connecting Capacity Main Circuit UL/CSA: Stud / Rigid 1x 20 6 AWG
  • Connection Type: Stud
  • Rated Cross-Section: 16 mm
  • Number of Levels: 1
  • EAN: 3472592961101
  • Minimum Order Quantity: 25 piece
  • Customs Tariff Number: 85369010
  • Rated Short-time Withstand Current (Icw): for 1 s 8000 A
  • Flammability According to UL94: V0
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q2
  • Instructions and Manuals: 1SNC160001C0205_CHC5
  • cUL Certificate: 1SND168000A0202
  • Data Sheet, Technical Information: 1SNC160001C0205_CHC5
  • Declaration of Conformity - CE: 1SND225002U1000
  • RoHS Information: 1SND230021F0201
  • ETIM 4: EC000897 - Feed-through terminal block
  • ETIM 5: EC000897 - Feed-through terminal block
  • ETIM 6: EC000897 - Feed-through terminal block
  • Object Classification Code: X
  • Package Level 1 Width: 172 mm
  • Package Level 1 Length: 155 mm
  • Package Level 1 Height: 71 mm
  • Package Level 1 Gross Weight: 1 kg
  • Package Level 1 EAN: 3472592961101
  • Package Level 2 Units: 250 piece
  • Package Level 2 Width: 300 mm
  • Package Level 2 Length: 500 mm
  • Package Level 2 Height: 300 mm
  • Package Level 3 Units: 6000 piece
  • Product Packing Type: Box
  • Package Level 1 Units: 25 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 165LTTM5TM5 . Santa Clara Systems carries 36,266 items from ABB.
  • - Two Stud Terminal Block For Ring Lug Connection
  • - Two Stud Terminal Block For Ring Lug Connection
  • - Profile Aligned With Disconnect Terminal Blocks Type 165Ettm5Tm5...
