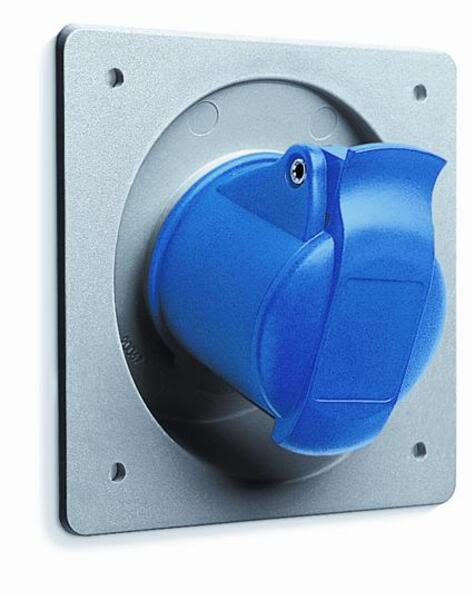

• ABB 216RAU6 Socket-outlet, panel mounting, 6h, 16A, IP44, unified flange, angled, 2P+E Product Image

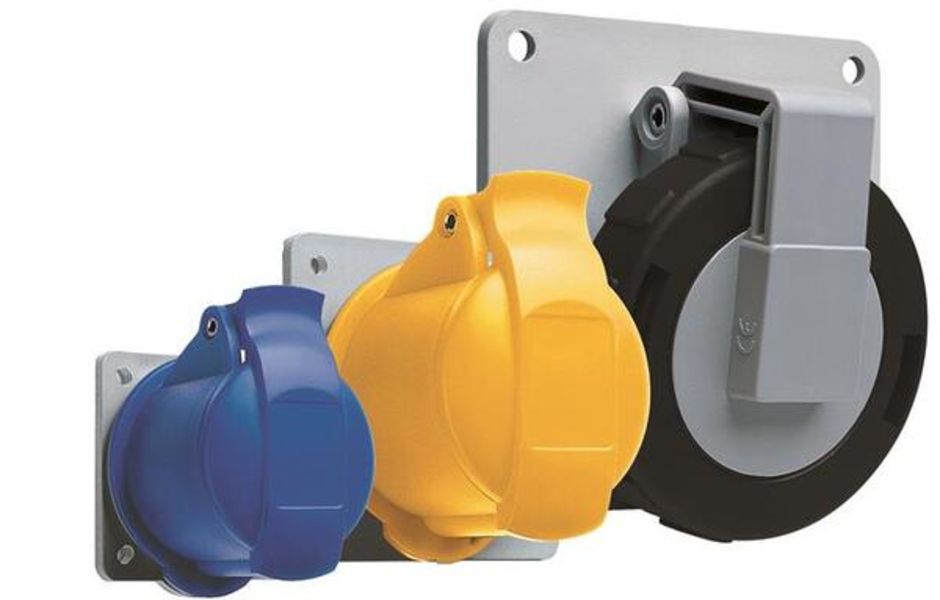

  • ABB 216RAU6 Socket-outlet, panel mounting, 6h, 16A, IP44, unified flange, angled, 2P+E Product Image
  • Abb 216RAU6 Barcode

216RAU6

Product Summary:

  • Product ID: 2CMA193218R1000
  • Extended Product Type: 2CMA193218R1000
  • Product Net Weight: 0.24 kg
  • Product Net Width: 110 mm
  • Product Net Height: 96 mm
Let Us Find It

Current response time:

By 5AM PT on Wednesday
  • Description: Socket-outlet, panel mounting, 6h, 16A, IP44, unified flange, angled, 2P+E
  • Product ID: 2CMA193218R1000
  • Extended Product Type: 2CMA193218R1000
  • Product Net Weight: 0.24 kg
  • Product Net Width: 110 mm
  • Product Net Height: 96 mm
  • Product Net Depth: 96 mm
  • Product Main Type: ERAU
  • Product Name: Industrial Socket Outlet Panel Mounting
  • Degree of Protection: acc. to IEC 60529 IP44
  • Standards: IEC 60309-1,-2
  • Number of Poles: 2
  • Rated Current (In): 16 A
  • Function: Socket outlet, panel mounting, unified flange, angled
  • Color: Blue
  • Suitable For: Socket Outlets for Panel Mounting
  • Product Net Length: 110 mm
  • Rated Voltage (Ur): 200 250 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): 60 Hz
  • Mounting Type: unified flange, angled
  • Enclosure Material: Thermoplastic
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Splashproof
  • Cable Cross-Section: 1.5 4 mm
  • EAN: 7392696932189
  • Minimum Order Quantity: 10 piece
  • Package Level 1 Width: 179 mm
  • Package Level 1 Length: 370 mm
  • Package Level 1 Height: 152 mm
  • Package Level 1 Gross Weight: 0.24 kg
  • Package Level 1 EAN: 7392696932189
  • Package Level 1 Units: 10 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#216RAU6
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2416637
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 216RAU6 . Santa Clara Systems carries 36,266 items from ABB.
  • Angled
  • 2-Poles+Earth
  • Frequency 50-60 Hz
  • Color Code Blue
  • Socket-Outlet
  • Panel Mounting
  • Earthing Sleeve Position 6H
  • Rated Current 16A
  • Ip44 Splashproof
  • Unified Flange
