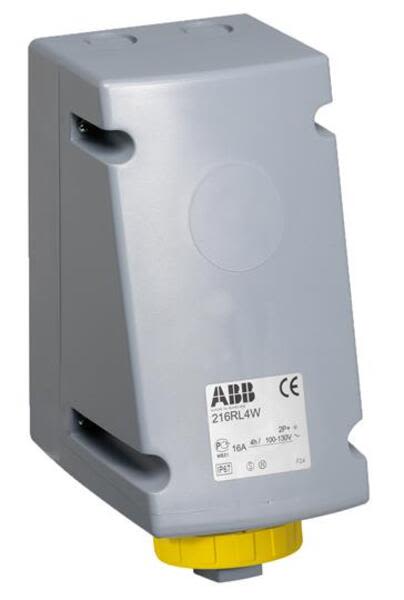

• ABB 216RL4W Surface socket-outlet for looping, 4h, 16A, IP67, 2P+E Product Image
  • Abb 216RL4W Barcode

216RL4W

Product Summary:

  • Product ID: 2CMA168457R1000
  • Extended Product Type: 2CMA168457R1000
  • Product Net Weight: 0.7 kg
  • Product Net Width: 120 mm
  • Product Net Height: 253 mm
Let Us Find It

Current response time:

16 Minutes 51 Seconds
  • Description: Surface socket-outlet for looping, 4h, 16A, IP67, 2P+E
  • Product ID: 2CMA168457R1000
  • Extended Product Type: 2CMA168457R1000
  • Product Net Weight: 0.7 kg
  • Product Net Width: 120 mm
  • Product Net Height: 253 mm
  • Product Net Depth: 253 mm
  • Product Main Type: RL
  • Product Name: Industrial Socket Outlet for Looping
  • Degree of Protection: IP67
  • Standards: IEC 60309-1,-2
  • Number of Poles: 3
  • Rated Current (In): 16 A
  • Function: Surface socket outlet for looping
  • Color: Yellow
  • Suitable For: Socket Outlets for Looping
  • Product Net Length: 149 mm
  • Rated Voltage (Ur): 100 130 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): 60 Hz
  • Enclosure Material: Thermoplastic polyester (PBT)
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Watertight
  • Cable Cross-Section: 2.5 10 mm
  • EAN: 7392696684576
  • Minimum Order Quantity: 1 piece
  • Package Level 1 Width: 124 mm
  • Package Level 1 Length: 337 mm
  • Package Level 1 Height: 153 mm
  • Package Level 1 Gross Weight: 0.7 kg
  • Package Level 1 EAN: 7392696684576
  • Package Level 1 Units: 1 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: Cable entry, knock-outs 2xØ25mm
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#216RL4W
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2417484
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 216RL4W . Santa Clara Systems carries 36,266 items from ABB.
  • 2-Poles+Earth
  • Frequency 50-60 Hz
  • Color Code Yellow
  • Surface Socket-Outlet For Looping
  • Earthing Sleeve Position 4H
  • Rated Current 16A
  • Ip67 Watertight
