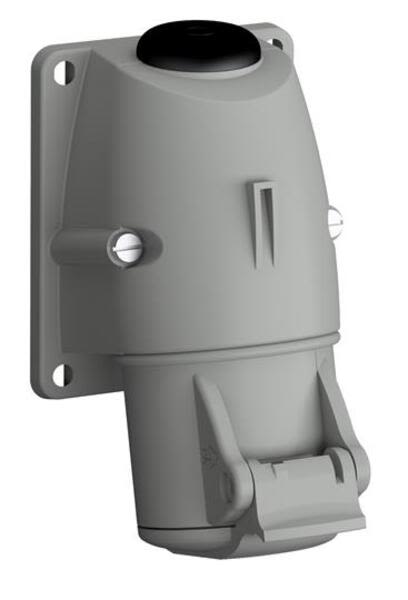

• ABB 216RS3W Surface socket-outlet, 3h, 16A, IP67, 2P+E Product Image

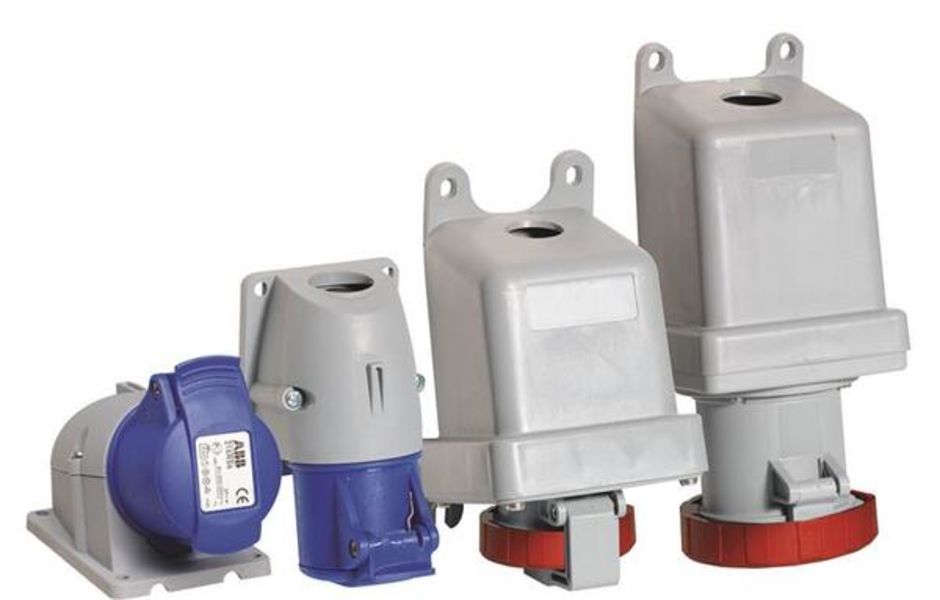

  • ABB 216RS3W Surface socket-outlet, 3h, 16A, IP67, 2P+E Product Image
  • Abb 216RS3W Barcode

216RS3W

Product Summary:

  • Product ID: 2CMA167147R1000
  • Extended Product Type: 2CMA167147R1000
  • Product Net Weight: 0.34 kg
  • Product Net Width: 99 mm
  • Product Net Height: 172 mm
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Surface socket-outlet, 3h, 16A, IP67, 2P+E
  • Product ID: 2CMA167147R1000
  • Extended Product Type: 2CMA167147R1000
  • Product Net Weight: 0.34 kg
  • Product Net Width: 99 mm
  • Product Net Height: 172 mm
  • Product Net Depth: 172 mm
  • Product Main Type: TRS
  • Product Name: Industrial Socket Outlet
  • Degree of Protection: IP67
  • Standards: IEC 60309-1,-2
  • Number of Poles: 2
  • Rated Current (In): 16 A
  • Function: Surface socket outlet
  • Color: Grey
  • Suitable For: Surface Socket Outlets
  • Product Net Length: 115 mm
  • Rated Voltage (Ur): 50 250 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): DC Hz
  • Enclosure Material: Thermoplastic polyester (PBT)
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Watertight
  • Cable Cross-Section: 1.5 4 mm
  • EAN: 7392696671477
  • Minimum Order Quantity: 1 piece
  • Package Level 1 Width: 144 mm
  • Package Level 1 Length: 202 mm
  • Package Level 1 Height: 140 mm
  • Package Level 1 Gross Weight: 0.42 kg
  • Package Level 1 EAN: 7392696671477
  • Package Level 1 Units: 1 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: IP69
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#216RS3W
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2416522
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 216RS3W . Santa Clara Systems carries 36,266 items from ABB.
  • 2-Poles+Earth
  • Color Code Grey
  • Surface Socket-Outlet
  • Earthing Sleeve Position 3H
  • Rated Current 16A
  • Ip67 Watertight
