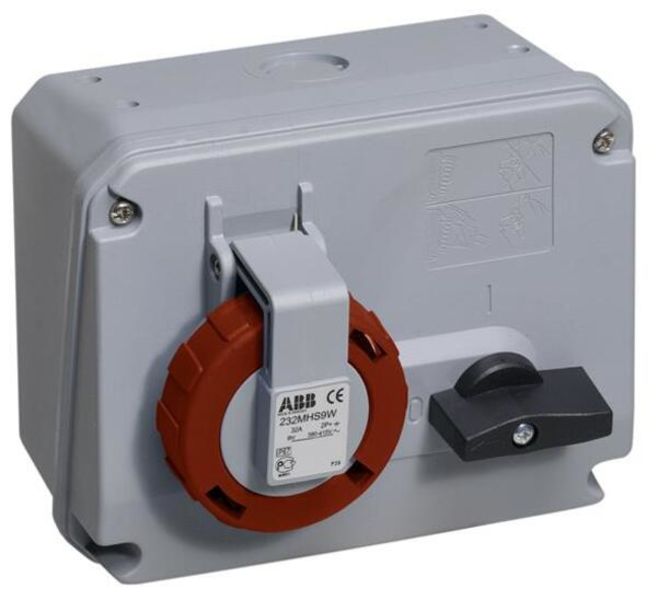

• ABB 232MHS9W Switched interlocked socket-outlet, 9h, 32A, IP67, 2P+E Product Image
  • Abb 232MHS9W Barcode

232MHS9W

Product Summary:

  • Product ID: 2CMA167849R1000
  • Extended Product Type: 2CMA167849R1000
  • Product Net Weight: 0.7 kg
  • Product Net Width: 168 mm
  • Product Net Height: 129 mm
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Switched interlocked socket-outlet, 9h, 32A, IP67, 2P+E
  • Product ID: 2CMA167849R1000
  • Extended Product Type: 2CMA167849R1000
  • Product Net Weight: 0.7 kg
  • Product Net Width: 168 mm
  • Product Net Height: 129 mm
  • Product Net Depth: 129 mm
  • Product Main Type: MHS
  • Product Name: Industrial Switched Interlocked Socket Outlet
  • Degree of Protection: IP67
  • Standards: IEC 60 309-1, -2, -4
  • Number of Poles: 3
  • Rated Current (In): 32 A
  • Function: Switched interlocked socket outlet, horisontal
  • Color: Red
  • Suitable For: Switched Interlocked Socket Outlets, Horisontal
  • Product Net Length: 136 mm
  • Rated Voltage (Ur): 380 415 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): 60 Hz
  • Mounting Type: Horisontal
  • Enclosure Material: Thermoplastic
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Watertight
  • Cable Cross-Section: 2.5 10 mm
  • Cable Outlets Per Side: 1xØ25
  • Cable Entry Position: Top and bottom
  • EAN: 7392696678490
  • Minimum Order Quantity: 1 piece
  • Package Level 1 Width: 144 mm
  • Package Level 1 Length: 202 mm
  • Package Level 1 Height: 140 mm
  • Package Level 1 Gross Weight: 0.8 kg
  • Package Level 1 EAN: 7392696678490
  • Package Level 1 Units: 1 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: Cable entry, knock-outs Ø25mm/M25
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#232MHS9W
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2416941
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 232MHS9W . Santa Clara Systems carries 36,266 items from ABB.
  • 2-Poles+Earth
  • Frequency 50-60 Hz
  • Color Code Red
  • Switched Interlocked Socket Outlet
  • Horisontal
  • Earthing Sleeve Position 9H
  • Rated Current 32A
  • Ip67 Watertight
