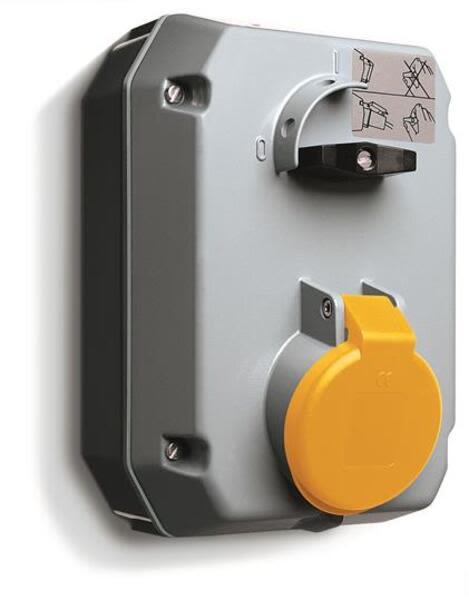

- Description: Switched interlocked socket-outlet, 4h, 63A, IP44, 2P+E
- Product ID: 2CMA168030R1000
- Extended Product Type: 2CMA168030R1000
- Product Net Weight: 2.2 kg
- Product Net Width: 165 mm
- Product Net Height: 228 mm
- Product Net Depth: 228 mm
- Product Main Type: MM
- Product Name: Industrial Switched Interlocked Socket Outlet
- Degree of Protection: acc. to IEC 60529 IP44
- Standards: IEC 60 309-1, -2, -4
- Number of Poles: 3
- Rated Current (I<sub>n</sub>): 63 A
- Function: Switched Interlocked Socket Outlet, metal
- Color: Yellow
- Suitable For: Switched Interlocked Socket Outlets in Metal
- Product Net Length: 183 mm
- Rated Voltage (U<sub>r</sub>): 100 … 130 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Aluminium
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 6 … 25 mm²
- Cable Outlets Per Side: 4xM40
- Cable Entry Position: Top and bottom
- EAN: 7392696680301
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 170 mm
- Package Level 1 Length: 300 mm
- Package Level 1 Height: 185 mm
- Package Level 1 Gross Weight: 2.2 kg
- Package Level 1 EAN: 7392696680301
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, 4xM40
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#263MM4
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2417101
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 263MM4 . Santa Clara Systems carries 37,000 items from ABB.
- 2-Poles+earth
- Frequency 50-60 Hz
- Color Code Yellow
- Switched Interlocked Socket Outlet
- Metal
- Earthing Sleeve Position 4h
- Rated Current 63a
- Ip44 Splashproof
