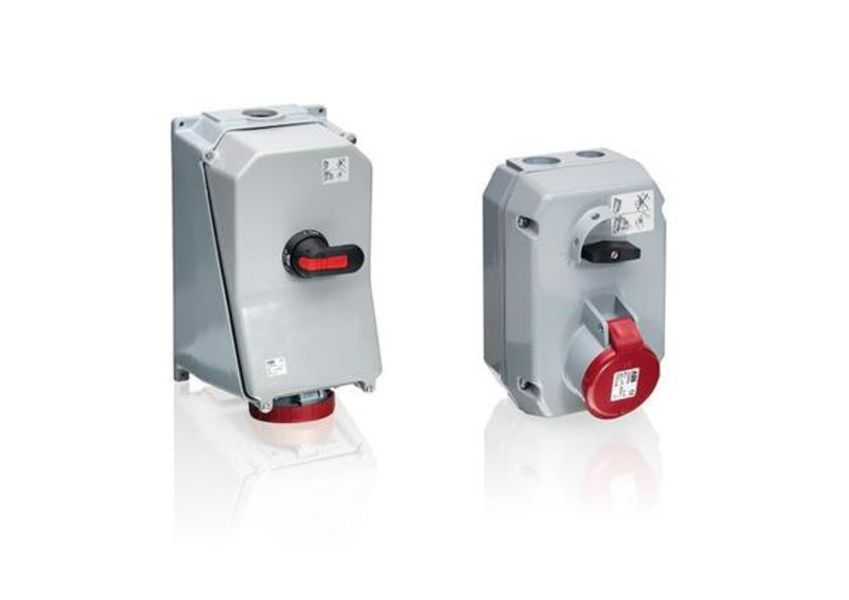

- Description: Switched interlocked socket-outlet, 1h, 125A, IP44, 3P+E
- Product ID: 2CMA168052R1000
- Extended Product Type: 2CMA168052R1000
- Product Net Weight: 7.9 kg
- Product Net Width: 230 mm
- Product Net Height: 405 mm
- Product Main Type: CMM
- Product Name: Industrial Switched Interlocked Socket Outlet
- Degree of Protection: IP44
- Standards: IEC 60 309-1, -2, -4
- Number of Poles: 3
- Rated Current (I<sub>n</sub>): 125 A
- Function: Switched Interlocked Socket Outlet, metal
- Color: Grey
- Suitable For: Switched Interlocked Socket Outlets in Metal
- Product Net Length: 230 mm
- Rated Voltage (U<sub>r</sub>): - V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): AC Hz
- Enclosure Material: Aluminium
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 16 … 70 mm²
- Cable Outlets Per Side: 4xM50
- Cable Entry Position: Top and bottom
- EAN: 7392696680523
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 235 mm
- Package Level 1 Length: 515 mm
- Package Level 1 Height: 245 mm
- Package Level 1 Gross Weight: 7.9 kg
- Package Level 1 EAN: 7392696680523
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, 2xM50
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#3125MM1
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2417121
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 3125MM1 . Santa Clara Systems carries 37,000 items from ABB.
- Ip44 Splashproof
- 3-Poles+earth
- Switched Interlocked Socket Outlet
- Metal
- Earthing Sleeve Position 1h
- Rated Current 125a
