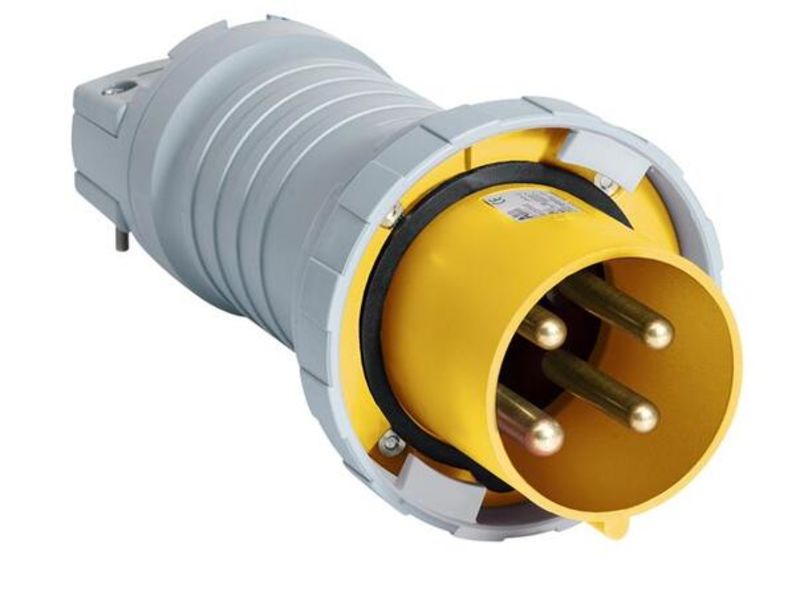

- Description: Plug, 4h, 125A, IP67, 3P+E
- Product ID: 2CMA166814R1000
- Extended Product Type: 2CMA166814R1000
- Product Net Weight: 1.43 kg
- Product Net Width: 130 mm
- Product Net Height: 130 mm
- Product Net Depth: 130 mm
- Product Main Type: P
- Product Name: Industrial Plug
- Degree of Protection: acc. to IEC 60529 IP67
- Standards: IEC 60309-1,-2
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 125 A
- Function: Plug
- Color: Yellow
- Suitable For: Plugs
- Product Net Length: 313 mm
- Rated Voltage (U<sub>r</sub>): 100 130 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Thermoplastic polyester (PBT)
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight
- Cable Cross-Section: 16 50 mm
- EAN: 7392696668149
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 136 mm
- Package Level 1 Length: 337 mm
- Package Level 1 Height: 137 mm
- Package Level 1 Gross Weight: 1.54 kg
- Package Level 1 EAN: 7392696668149
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, compression gland, internal and external cable clamp
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#3125P4W
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416304
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 3125P4W . Santa Clara Systems carries 36,835 items from ABB.
- 3-Poles+earth
- Frequency 50-60 Hz
- Color Code Yellow
- Plug
- Earthing Sleeve Position 4h
- Rated Current 125a
- Ip67 Watertight
