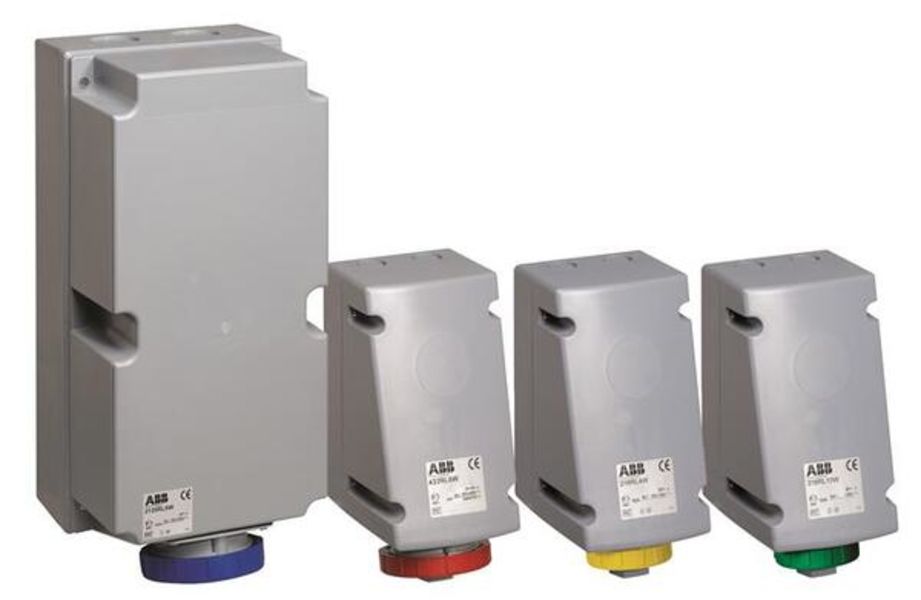

• ABB 3125RL7W Surface socket-outlet for looping, 7h, 125A, IP67, 3P+E Product Image
  • Abb 3125RL7W Barcode

3125RL7W

Product Summary:

  • Product ID: 2CMA168531R1000
  • Extended Product Type: 2CMA168531R1000
  • Product Net Weight: 4.1 kg
  • Product Net Width: 230 mm
  • Product Net Height: 510 mm
Let Us Find It

Current response time:

By 5AM PT on Thursday
  • Description: Surface socket-outlet for looping, 7h, 125A, IP67, 3P+E
  • Product ID: 2CMA168531R1000
  • Extended Product Type: 2CMA168531R1000
  • Product Net Weight: 4.1 kg
  • Product Net Width: 230 mm
  • Product Net Height: 510 mm
  • Product Net Depth: 510 mm
  • Product Main Type: TRL
  • Product Name: Industrial Socket Outlet for Looping
  • Degree of Protection: IP67
  • Standards: IEC 60309-1,-2
  • Number of Poles: 3
  • Rated Current (In): 125 A
  • Function: Surface socket outlet for looping
  • Color: Black
  • Suitable For: Socket Outlets for Looping
  • Product Net Length: 210 mm
  • Rated Voltage (Ur): 480 500 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): 50 Hz
  • Enclosure Material: Thermoplastic polyester (PBT)
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Watertight
  • Cable Cross-Section: 16 70 mm
  • EAN: 7392696685313
  • Minimum Order Quantity: 1 piece
  • Package Level 1 Width: 235 mm
  • Package Level 1 Length: 515 mm
  • Package Level 1 Height: 245 mm
  • Package Level 1 Gross Weight: 4.1 kg
  • Package Level 1 EAN: 7392696685313
  • Package Level 1 Units: 1 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: Cable entry, knock-outs 2xØ50/25mm
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#3125RL7W
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2417535
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 3125RL7W . Santa Clara Systems carries 36,271 items from ABB.
  • 3-Poles+Earth
  • Frequency 50-60 Hz
  • Color Code Black
  • Surface Socket-Outlet For Looping
  • Earthing Sleeve Position 7H
  • Rated Current 125A
  • Ip67 Watertight
