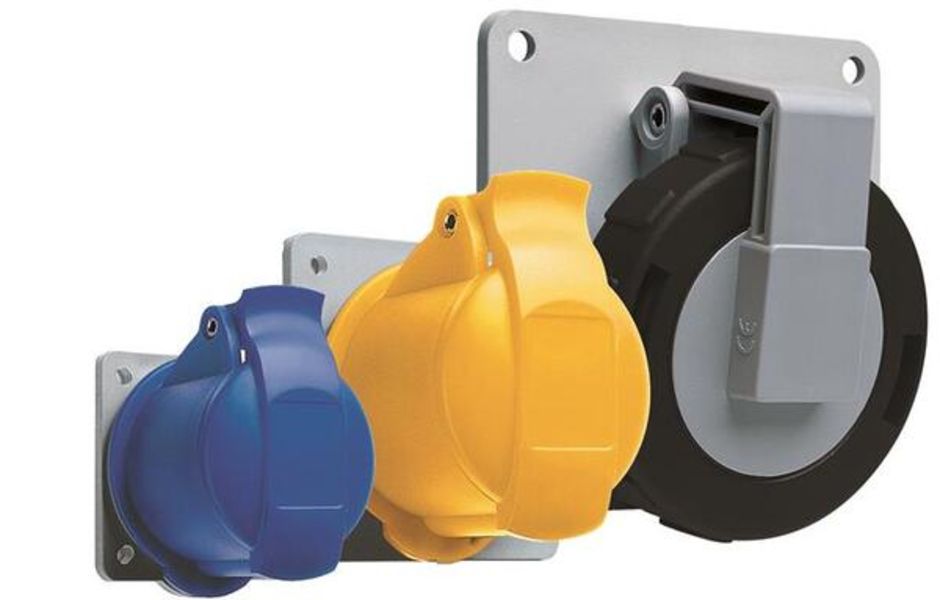

- Description: Socket-outlet, panel mounting, 9h, 16A, IP44, minimized flange, straight, 3P+E
- Product ID: 2CMA193156R1000
- Extended Product Type: 2CMA193156R1000
- Product Net Weight: 0.25 kg
- Product Net Width: 66 mm
- Product Net Height: 88 mm
- Product Net Depth: 88 mm
- Product Main Type: R
- Product Name: Industrial Socket Outlet Panel Mounting
- Degree of Protection: IP44
- Standards: IEC 60309-1,-2
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 16 A
- Function: Socket outlet for panel mounting
- Color: Blue
- Suitable For: Socket Outlets for Panel Mounting
- Product Net Length: 87 mm
- Rated Voltage (U<sub>r</sub>): 200 … 250 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 50 Hz 60 Hz
- Mounting Type: minimized flange, straight
- Enclosure Material: Thermoplastic
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 1.5 … 4 mm²
- EAN: 7392696931564
- Minimum Order Quantity: 10 piece
- Package Level 1 Width: 159 mm
- Package Level 1 Length: 337 mm
- Package Level 1 Height: 135 mm
- Package Level 1 Gross Weight: 0.25 kg
- Package Level 1 EAN: 7392696931564
- Package Level 1 Units: 10 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-06-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, flexible membrane and metric threaded M20 insert for top cable entry.Rear knock-out cable entry.
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#316R9
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416611
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 316R9 . Santa Clara Systems carries 37,000 items from ABB.
- 3-Poles+neutral+earth
- Frequency 50-60 Hz
- Color Code Blue
- Socket Outlet Panel Mounting
- Earthing Sleeve Position 9h
- Rated Current 16a
- Ip44 Splashproof
