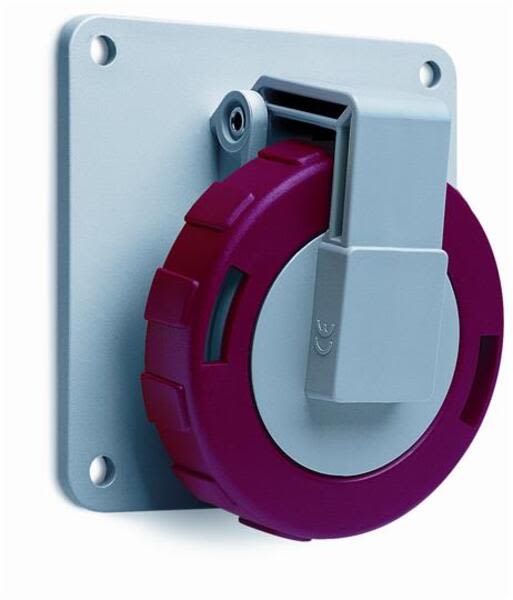

- Description: Socket-outlet, panel mounting, 11h, 16A, IP67, unified flange, angled, 3P+E
- Product ID: 2CMA167020R1000
- Extended Product Type: 2CMA167020R1000
- Product Net Weight: 0.15 kg
- Product Net Width: 95 mm
- Product Net Height: 102 mm
- Product Net Depth: 102 mm
- Product Main Type: TRAU
- Product Name: Industrial Socket Outlet Panel Mounting
- Degree of Protection: IP67
- Standards: IEC 60309-1,-2
- Number of Poles: 3
- Rated Current (I<sub>n</sub>): 16 A
- Function: Socket outlet, panel mounting, unified flange, angled
- Color: Red
- Suitable For: Socket Outlets for Panel Mounting
- Product Net Length: 95 mm
- Rated Voltage (U<sub>r</sub>): 440 … 460 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Mounting Type: unified flange, angled
- Enclosure Material: Thermoplastic polyester (PBT)
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight
- Cable Cross-Section: 1.5 … 4 mm²
- EAN: 7392696670203
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 112 mm
- Package Level 1 Length: 114 mm
- Package Level 1 Height: 115 mm
- Package Level 1 Gross Weight: 0.15 kg
- Package Level 1 EAN: 7392696670203
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: IP69
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#316RAU11W
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416707
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 316RAU11W . Santa Clara Systems carries 37,095 items from ABB.
- Angled
- 3-Poles+earth
- Frequency 60 Hz
- Color Code Red
- Socket-Outlet
- Panel Mounting
- Earthing Sleeve Position 11h
- Rated Current 16a
- Ip67 Watertight
- Unified Flange
