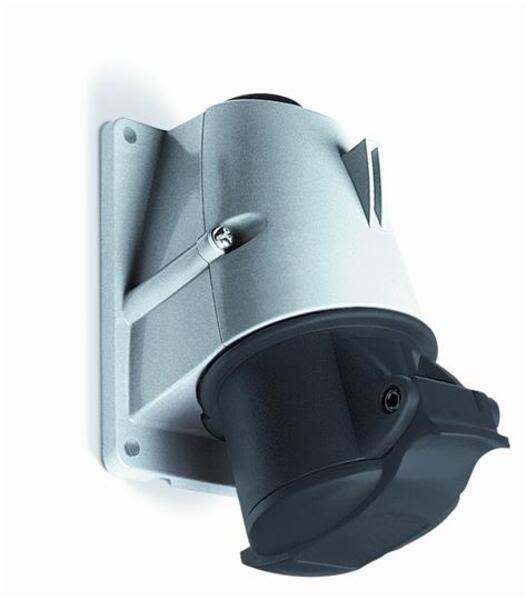

- Description: Surface socket-outlet, 7h, 16A, IP44, 3P+E
- Product ID: 2CMA193107R1000
- Extended Product Type: 2CMA193107R1000
- Product Net Weight: 0.24 kg
- Product Net Width: 79 mm
- Product Net Height: 132 mm
- Product Net Depth: 132 mm
- Product Main Type: RS
- Product Name: Industrial Socket Outlet
- Degree of Protection: acc. to IEC 60529 IP44
- Standards: IEC 60309-1,-2
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 16 A
- Function: Surface socket outlet
- Color: Black
- Suitable For: Surface Socket Outlets
- Product Net Length: 100 mm
- Rated Voltage (U<sub>r</sub>): 480 … 500 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Thermoplastic
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 1.5 … 4 mm²
- EAN: 7392696931076
- Minimum Order Quantity: 10 piece
- Package Level 1 Width: 143 mm
- Package Level 1 Length: 397 mm
- Package Level 1 Height: 187 mm
- Package Level 1 Gross Weight: 0.24 kg
- Package Level 1 EAN: 7392696931076
- Package Level 1 Units: 10 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, flexible membrane and metric threaded M20 insert for top cable entry.Rear knock-out cable entry.
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#316RS7
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416450
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 316RS7 . Santa Clara Systems carries 37,000 items from ABB.
- 3-Poles+earth
- Frequency 50-60 Hz
- Color Code Black
- Surface Socket-Outlet
- Earthing Sleeve Position 7h
- Rated Current 16a
- Ip44 Splashproof
