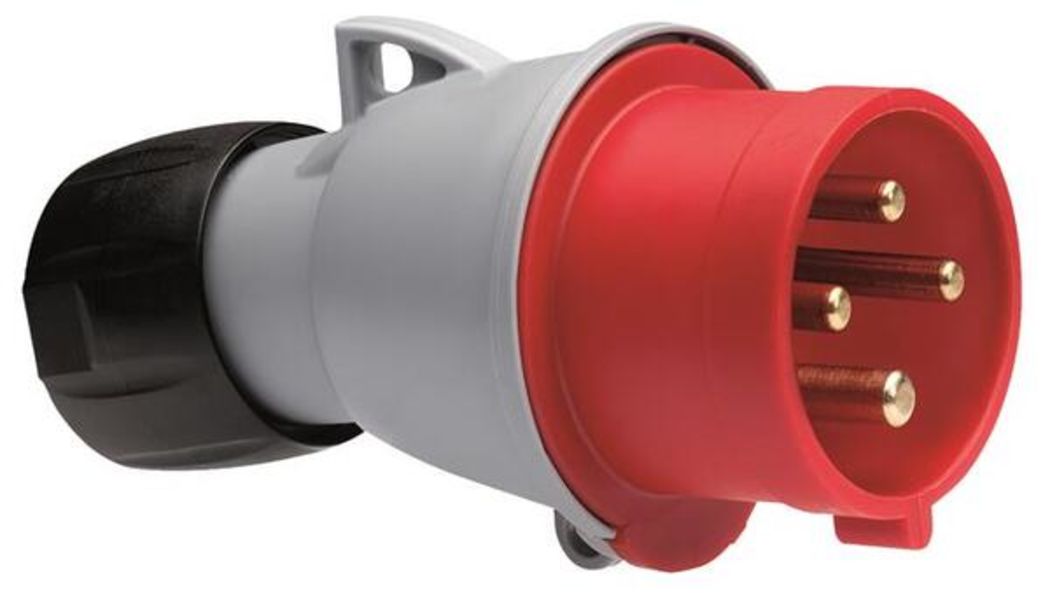

- Description: Plug, 6h, 32A, IP44, 3P+E
- Product ID: 2CMA193515R1000
- Extended Product Type: 2CMA193515R1000
- Product Net Weight: 0.215 kg
- Product Net Width: 90 mm
- Product Net Height: 90 mm
- Product Main Type: P
- Product Name: Industrial Plug
- Degree of Protection: IP44
- Standards: IEC 60309-1,-2
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 32 A
- Function: Plug
- Color: Red
- Suitable For: Plugs
- Product Net Length: 162 mm
- Rated Voltage (U<sub>r</sub>): 380 ... 415 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Polyamide
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 2.5 6 mm
- EAN: 7392696935159
- Minimum Order Quantity: 10 piece
- Package Level 1 Width: 180 mm
- Package Level 1 Length: 155 mm
- Package Level 1 Height: 378 mm
- Package Level 1 Gross Weight: 0.215 kg
- Package Level 1 EAN: 7392696935159
- Package Level 1 Units: 10 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700022
- Additional Information: Cable entry, compression gland
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#332-P6
- Object Classification Code: 2CMT005069
- RoHS Date: 2009-1
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416174
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 332-P6 . Santa Clara Systems carries 36,836 items from ABB.
- 3-Poles+earth
- 50 - 60 Hertz
- Color Code Red
- Plug
- Earthing Sleeve Position 6h
- Rated Current 32a
- Ip44 Splashproof
