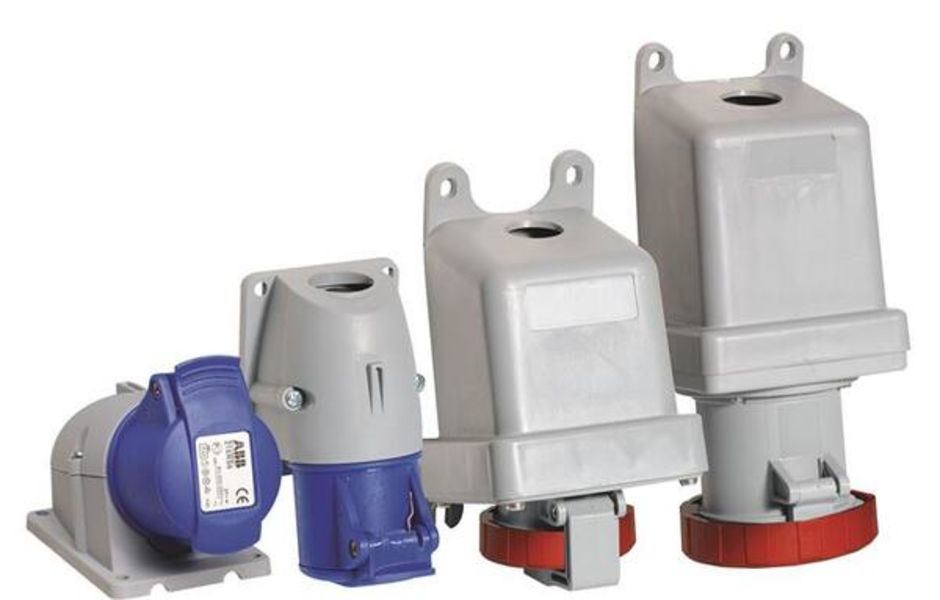

• ABB 332RS9 Surface socket-outlet, 9h, 32A, IP44, 3P+E Product Image

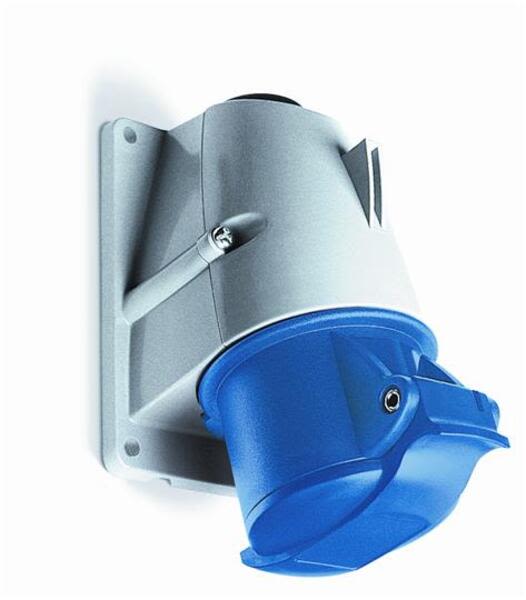

  • ABB 332RS9 Surface socket-outlet, 9h, 32A, IP44, 3P+E Product Image
  • Abb 332RS9 Barcode

332RS9

Product Summary:

  • Product ID: 2CMA193132R1000
  • Extended Product Type: 2CMA193132R1000
  • Product Net Weight: 0.32 kg
  • Product Net Width: 85 mm
  • Product Net Height: 163 mm
Let Us Find It

Current response time:

14 Minutes 39 Seconds
  • Description: Surface socket-outlet, 9h, 32A, IP44, 3P+E
  • Product ID: 2CMA193132R1000
  • Extended Product Type: 2CMA193132R1000
  • Product Net Weight: 0.32 kg
  • Product Net Width: 85 mm
  • Product Net Height: 163 mm
  • Product Net Depth: 163 mm
  • Product Main Type: ERS
  • Product Name: Industrial Socket Outlet
  • Degree of Protection: acc. to IEC 60529 IP44
  • Standards: IEC 60309-1,-2
  • Number of Poles: 3
  • Rated Current (In): 32 A
  • Function: Surface socket outlet
  • Color: Blue
  • Suitable For: Surface Socket Outlets
  • Product Net Length: 116 mm
  • Rated Voltage (Ur): 200 250 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): 60 Hz
  • Enclosure Material: Thermoplastic
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Splashproof
  • Cable Cross-Section: 2.5 10 mm
  • EAN: 7392696931328
  • Minimum Order Quantity: 10 piece
  • Package Level 1 Width: 173 mm
  • Package Level 1 Length: 430 mm
  • Package Level 1 Height: 199 mm
  • Package Level 1 Gross Weight: 0.35 kg
  • Package Level 1 EAN: 7392696931328
  • Package Level 1 Units: 10 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: Cable entry, flexible membrane and metric threaded M25 insert for top cable entry.Rear knock-out cable entry.
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#332RS9
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2416499
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 332RS9 . Santa Clara Systems carries 36,317 items from ABB.
  • 3-Poles+Earth
  • Frequency 50-60 Hz
  • Color Code Blue
  • Surface Socket-Outlet
  • Earthing Sleeve Position 9H
  • Rated Current 32A
  • Ip44 Splashproof
