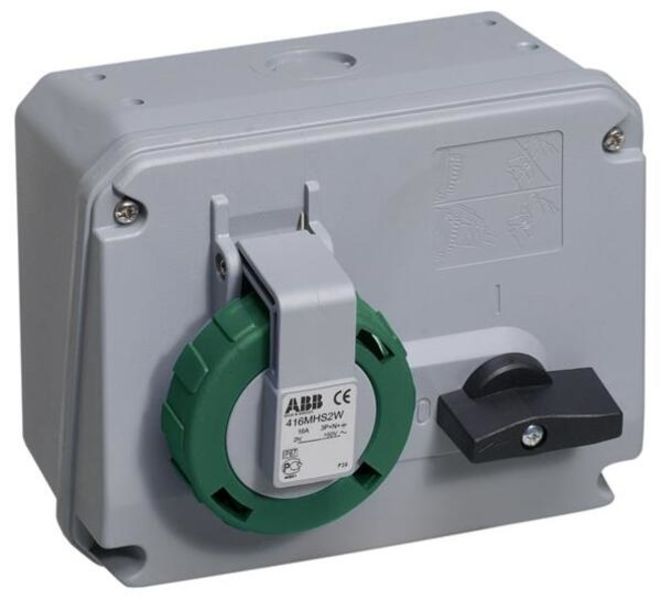

- Description: Switched interlocked socket-outlet, 2h, 16A, IP67, 3P+N+E
- Product ID: 2CMA167815R1000
- Extended Product Type: 2CMA167815R1000
- Product Net Weight: 0.61 kg
- Product Net Width: 168 mm
- Product Net Height: 129 mm
- Product Net Depth: 129 mm
- Product Main Type: MHS
- Product Name: Industrial Switched Interlocked Socket Outlet
- Degree of Protection: IP67
- Standards: IEC 60 309-1, -2, -4
- Number of Poles: 5
- Rated Current (I<sub>n</sub>): 16 A
- Function: Switched interlocked socket outlet, horisontal
- Color: Green
- Suitable For: Switched Interlocked Socket Outlets, Horisontal
- Product Net Length: 126 mm
- Rated Voltage (U<sub>r</sub>): > 50 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 300 … 500 Hz
- Mounting Type: Horisontal
- Enclosure Material: Thermoplastic
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight
- Cable Cross-Section: 1.5 … 4 mm²
- Cable Outlets Per Side: 1xØ25
- Cable Entry Position: Top and bottom
- EAN: 7392696678155
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 144 mm
- Package Level 1 Length: 202 mm
- Package Level 1 Height: 140 mm
- Package Level 1 Gross Weight: 0.61 kg
- Package Level 1 EAN: 7392696678155
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, knock-outs Ø25mm/M25
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#416MHS2W
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416908
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 416MHS2W . Santa Clara Systems carries 37,095 items from ABB.
- 3-Poles+neutral+earth
- Frequency 300-500 Hz
- Color Code Green
- Switched Interlocked Socket Outlet
- Horisontal
- Earthing Sleeve Position 2h
- Rated Current 16a
- Ip67 Watertight
